GD200A series VFD
Environment
Storage temperature
Running environment
condition
Altitude
Vibration

Installation direction

Note:

Goodrive200A series VFDs should be installed in a clean and ventilated environment
according to enclosure classification.

Cooling air must be clean, free from corrosive materials and electrically conductive dust.
4.2.2 Installation direction
The VFD may be installed on the wall or in a cabinet.
The VFD must be installed in an upright position. Check the installation site according to the
requirements below. For frame details, please see Appendix B Dimension drawings.
OK
A Vertical installation
-30 to +60° C
The installation site of the VFD should meet the following
requirements.
Away from the electromagnetic radiation source;
Away from contaminative air, such as corrosive gas, oil mist and
flammable gas;
Ensure foreign objects, such as metal power, dust, oil, water cannot
enter into the VFD (do not install the VFD on the flammable materials
such as wood);
Away from direct sunlight, oil mist, steam and vibration environment.
Below 1000 meters
When the installation site altitude exceeds 1000m, derate 1% for every
increase of 100m; when the installation site altitude exceeds 3000m,
consult the local INVT dealer or office.
≤ 5.8m/s 2
(0.6g)
The VFD should be installed on an upright position to ensure sufficient
cooling effect.
NG
B Horizontal installation

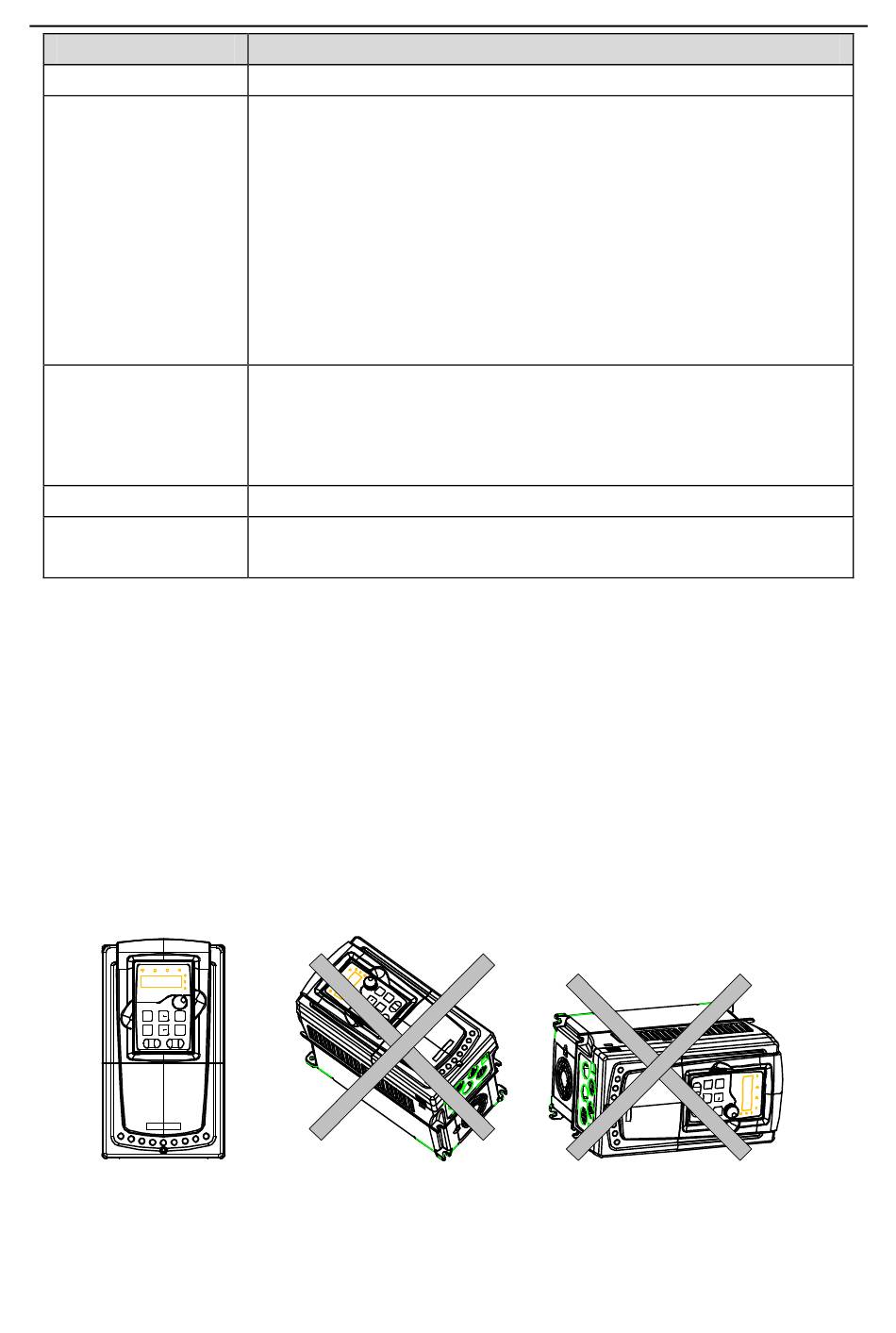

Figure 4-1 Installation direction of the VFD
Conditions
C Transversal installation
-14-
Installation guidelines
NG
