GD200A series VFD

Appendix C Peripheral options and parts

C.1 What this chapter contains
This chapter describes how to select the options and parts of Goodrive200A series.
C.2 Peripheral wiring

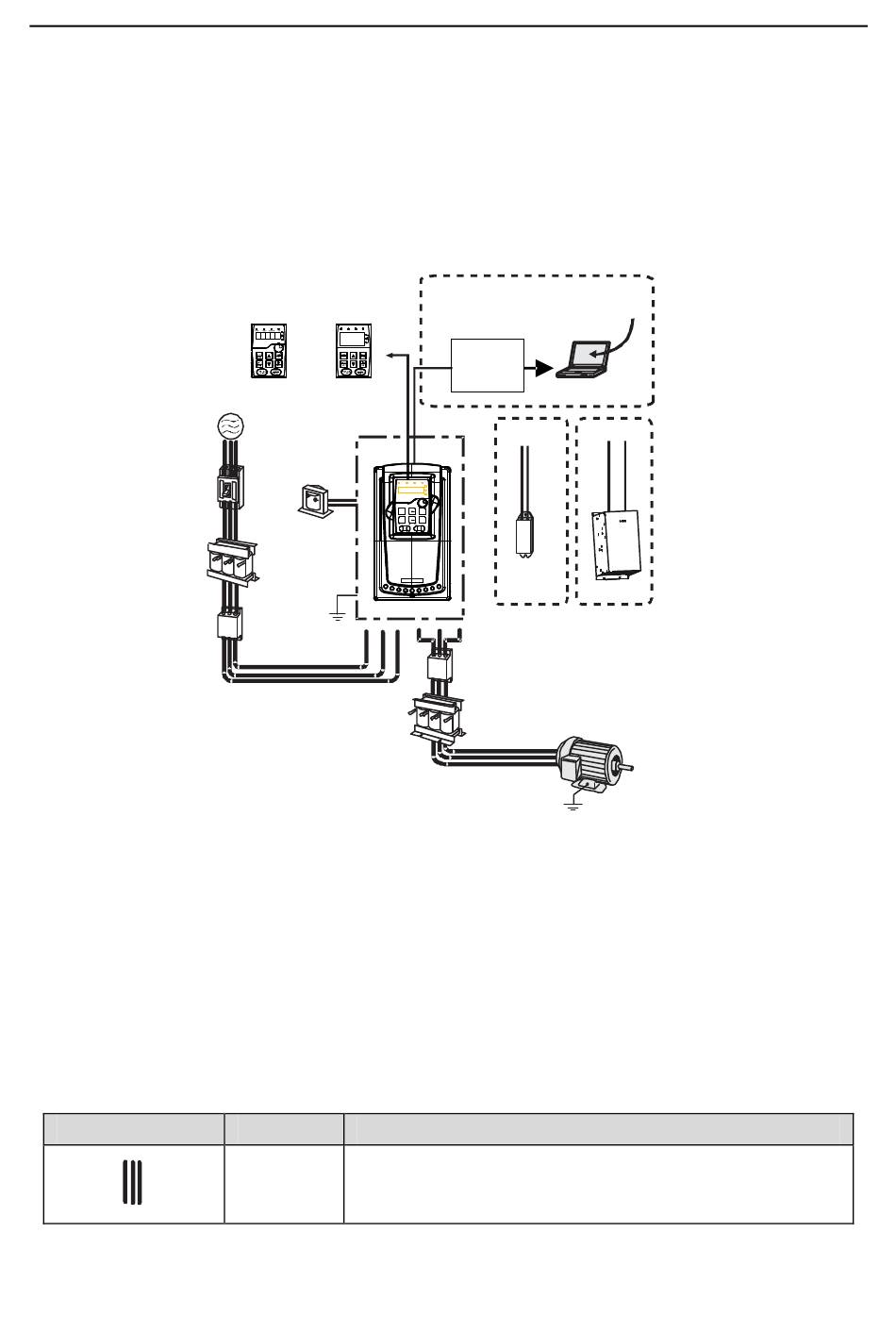

Below is the peripheral wiring of Goodrive200A series VFDs.
Note:
1. The 015G/018P and lower models have standard film keypad and the 018G/022P and higher
models have standard LED keypad.
2. The 030G/037P and lower models are embedded with braking unit.
3. Only the 037G/045P and higher models have P1 terminal and are connected with DC reactors.
4. The braking units apply standard braking unit DBU series in. Refer to the instruction of DBU for
detailed information.
Pictures
LED LCD
Optional
Standard
Power supply
Circuit
breaker
P1
+
DC reactor
Input reactor
Earth
Input filter
Name
Cables
Upper PC
software
RS485
485+
to
RS232
485-
adapter
PC
PB +
Braking
resistor
Output filter
Output reactor
Earth
Descriptions
Device to transfer the electronic signals
-160-
Peripheral options and parts
-
+
Braking
unit
Motor
