Power unit and fuse

5.6.1 Power unit

In the area of the electro-hydraulics in the right front toolbox under the plateau, the electric
power unit with integrated control is also installed.
•

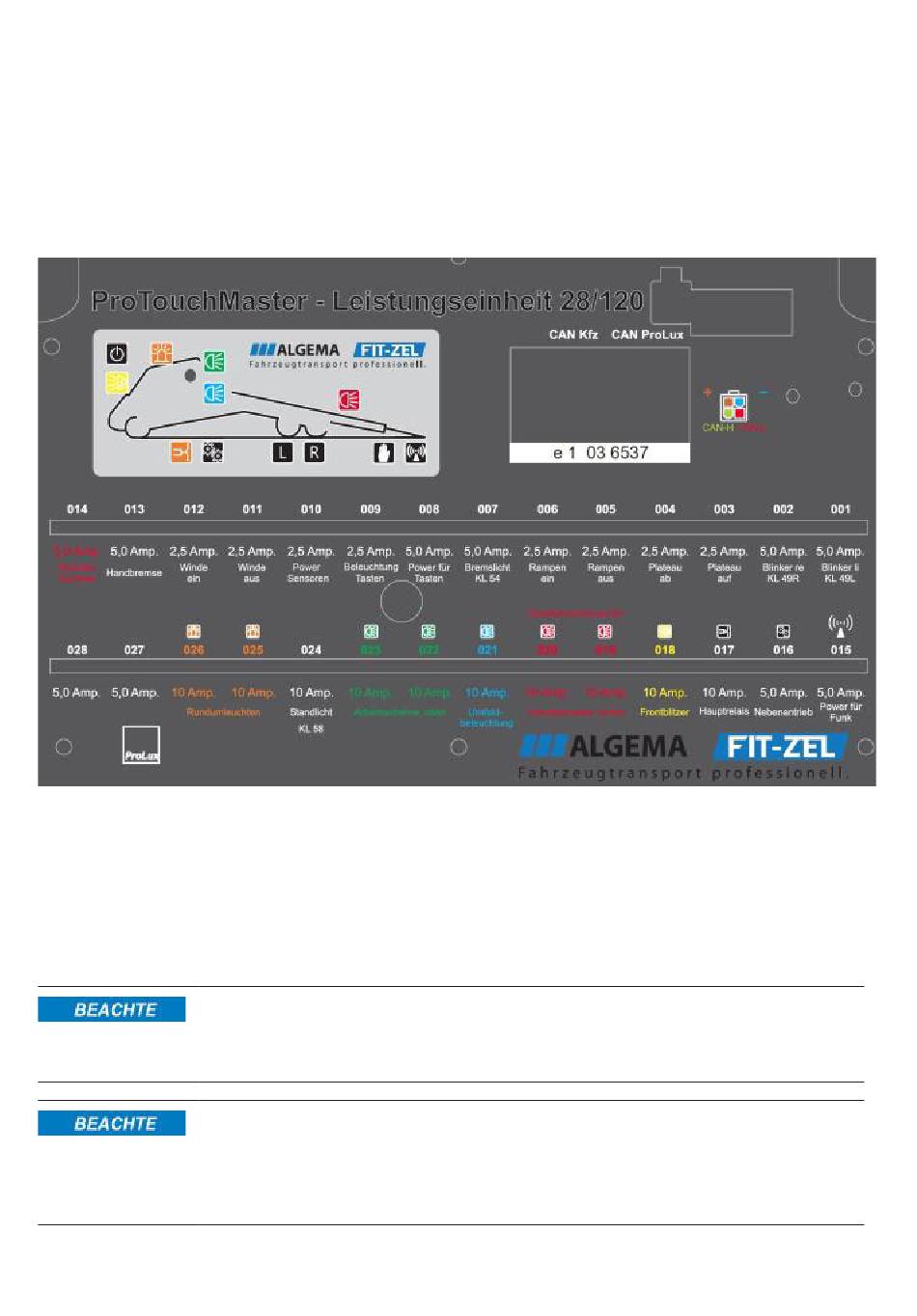

The power unit occupies 28 outputs, which are assigned according to the
illustration on the power unit.
•
Two status LEDs are installed for each output:
Green: Output is active
Red: Short circuit or overload on the output
Due to changes in the interest of technical progress and improvement, the
actual labelling of the power unit may differ from the actual labelling.
differ from the labelling shown in the operating instructions.
Besides the power unit, there are no separate fuses for the outputs.
Should a red status LED light up on the power unit, the
If a function of the control unit has been activated, a specialist
workshop authorised by us must be contacted.
