4.1.9 Trailer transport with loading ball* on the loading area

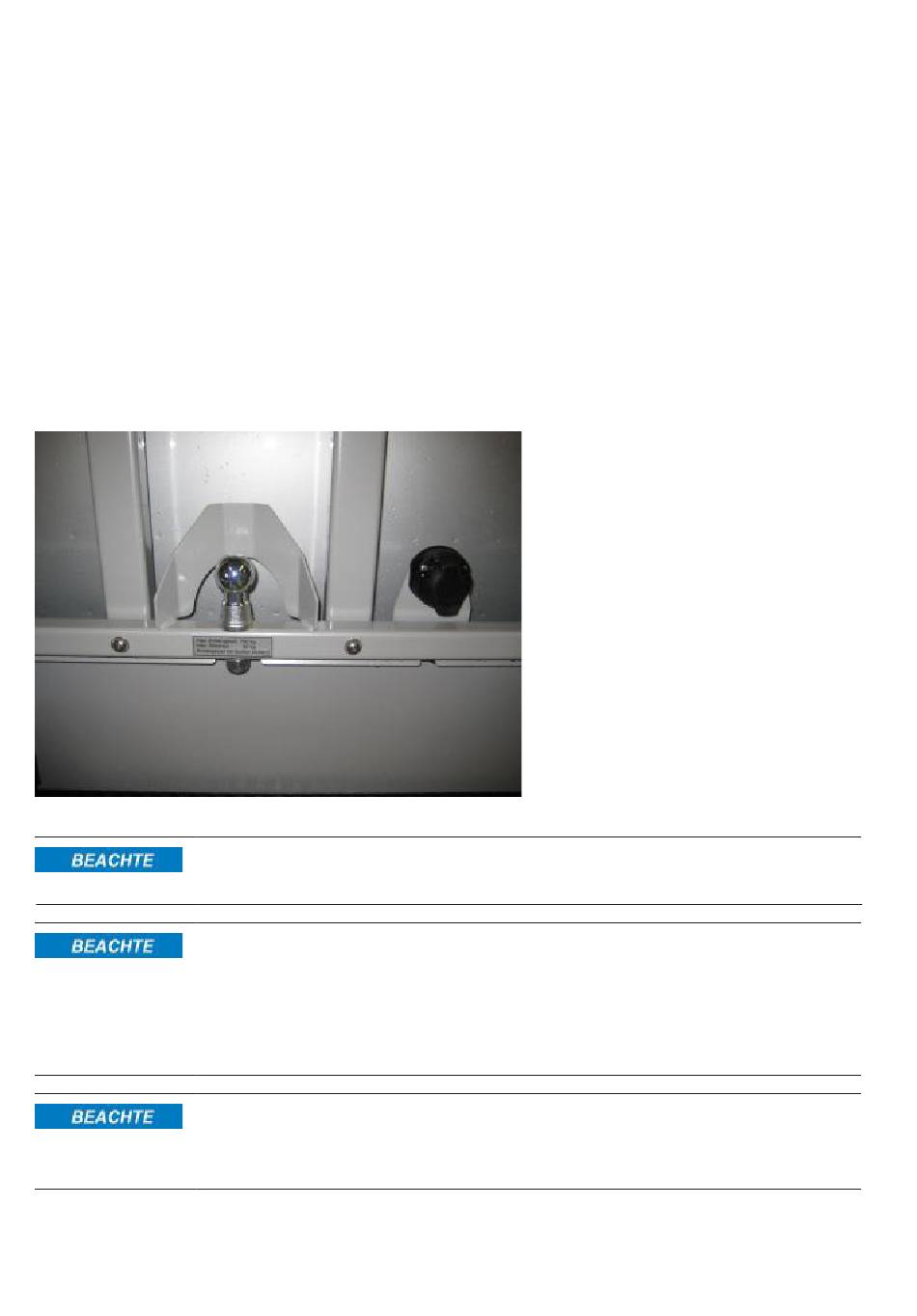

Optionally, a loading ball* (50 mm ball head) and a 13-pin trailer socket* are mounted on
the front of the platform for transporting trailers.
•
Load the trailer with the cable winch
•
Hook the trailer's coupling ball onto the loading ball and lock it. Connect the trailer's
lighting plug to the 13-pin trailer socket*.
•
In addition, secure the trailer to its wheels on the plateau
vehicle", page 23).
•
Unloading is done in reverse order
•
Only the rear lights (parking lights) are active on the 13-pin trailer socket.
Also observe the operating instructions of the trailer for the correct locking
of the coupling head.
The permissible static drawbar load on the loading ball is 130 kg for trailers
with overrun brakes and 75 kg for trailers without brakes.
limited. The actual weight of the trailer must not exceed 750 kg for
trailers with overrun brakes and 400 kg for trailers without brakes.
The trailer must be properly lashed to the wheels. The loading ball is
not designed to withstand the horizontal forces caused by
to fully absorb braking and acceleration.
