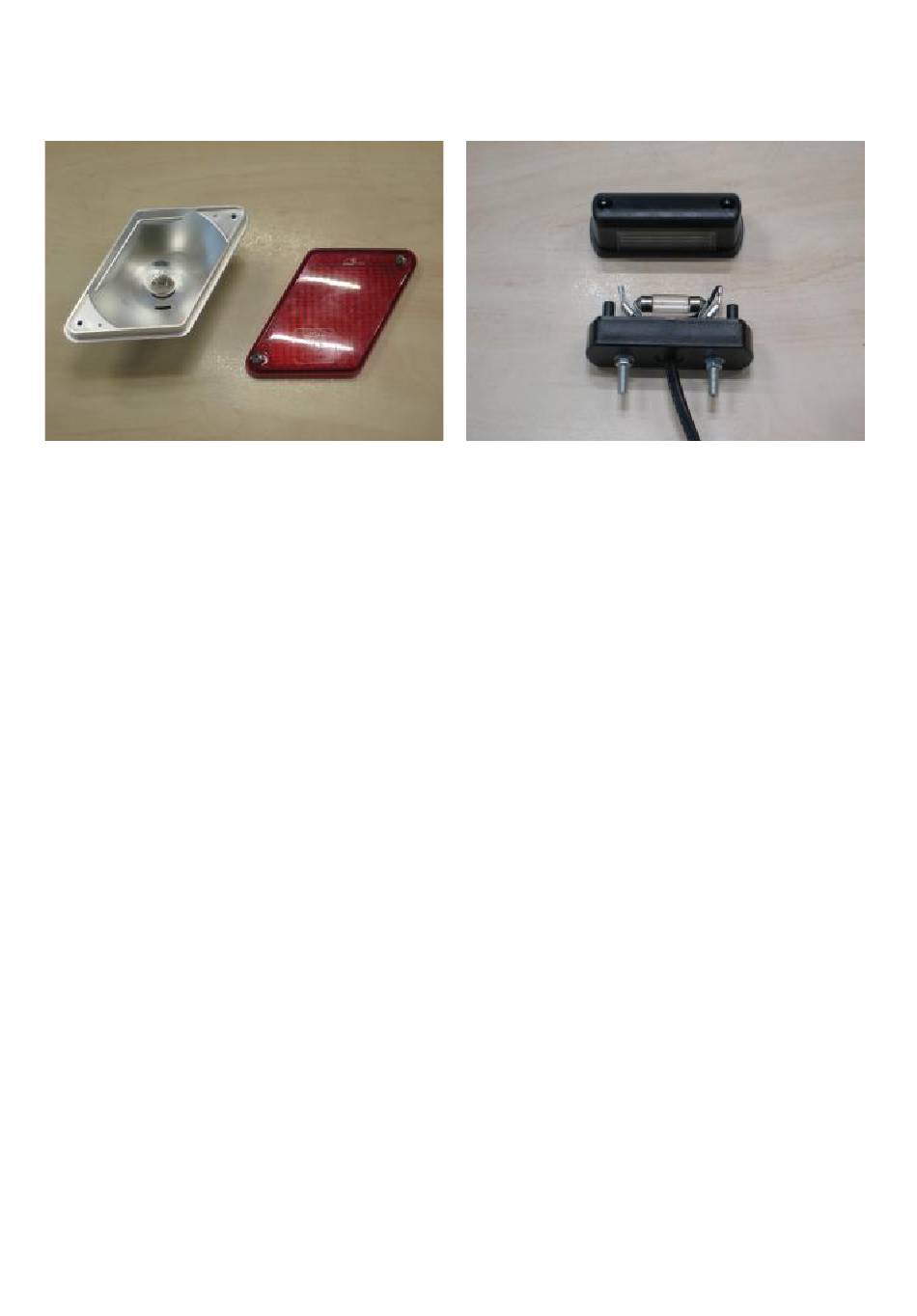

Changing the lightbulbs or LED's
•
Unscrew the spreader disc with a Phillips screwdriver.
•
Press the lamp with the bayonet catch into the holder, turn it slightly to the left and
remove it from the holder.
•
Insert the new lamp in reverse order.
•
Screw the spreader disc back on.
Number plate lighting:
•
Unscrew the cap with integrated diffusing lens using a Phillips screwdriver.
•
Remove the lamp from the holder by pressing back the spring plates.
•
Insert the new bulb and screw the cap back on.
The bulbs of the marker lights and side marker lights cannot be changed because they are
LED technology.
Changing individual bulbs on the rotating beacon*, the work lights* and the surrounding
lights is also not part of the operating instructions.
