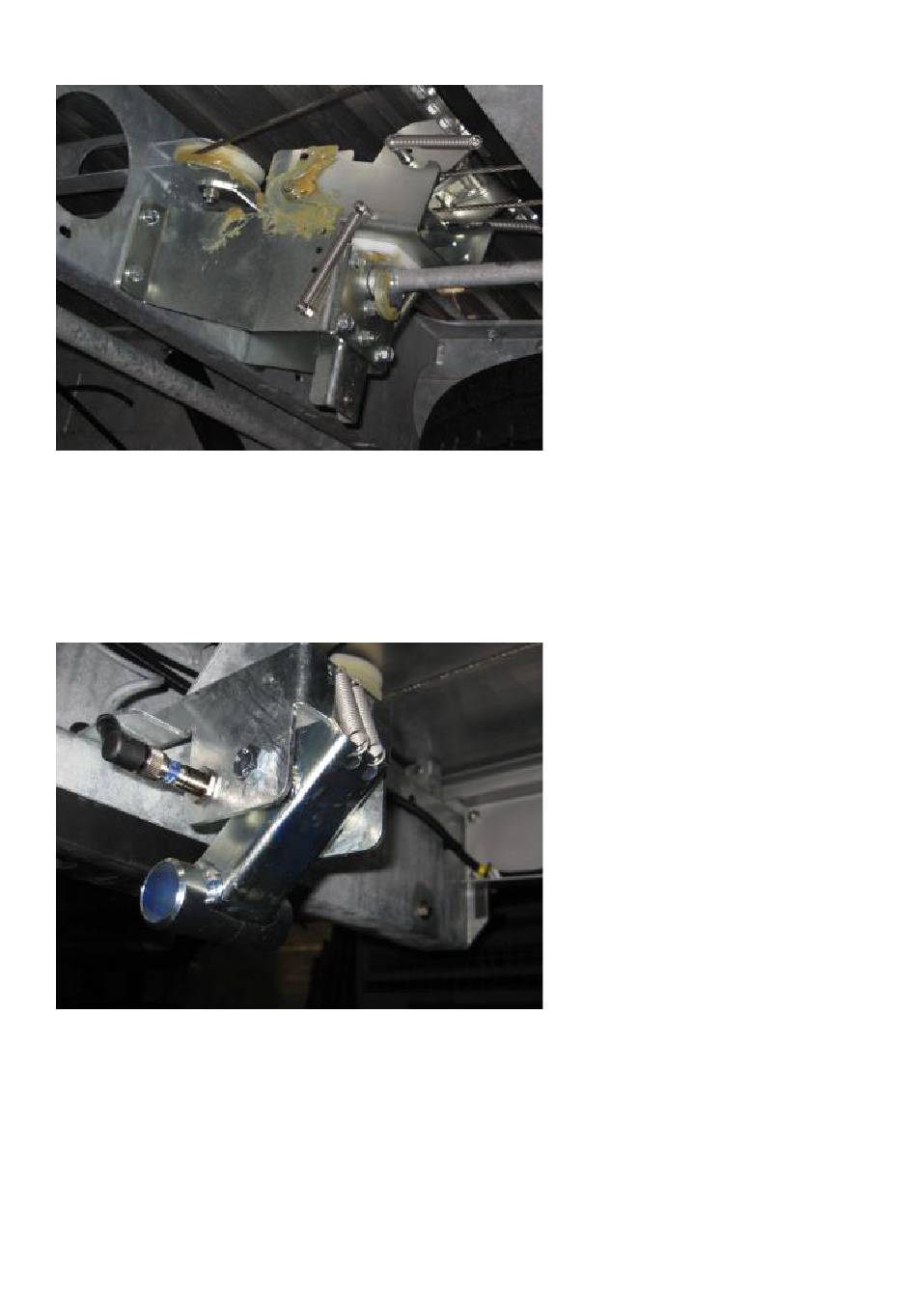

Centre ramp operating mechanism*
•
For the centre ramp*, lubricate the operating mechanism at the end of the centre
ramp and under the plateau with a suitable service spray with good creeping
properties. Make sure that all moving parts are free to move and that all tension
springs are in place.
Tilt sensor with rocker switch at the rear lower end of
the plateau
•
For the tilt sensors (2x), lubricate the rotation axis of the switching rocker with a
suitable service spray with good creeping properties. Make sure that the rocker
switch is free to move and that the tension springs are present.
