General Description - EDER ALGEMA-FITZEL BLITZLADER 2 Operating Instructions Manual

Eder GmbH

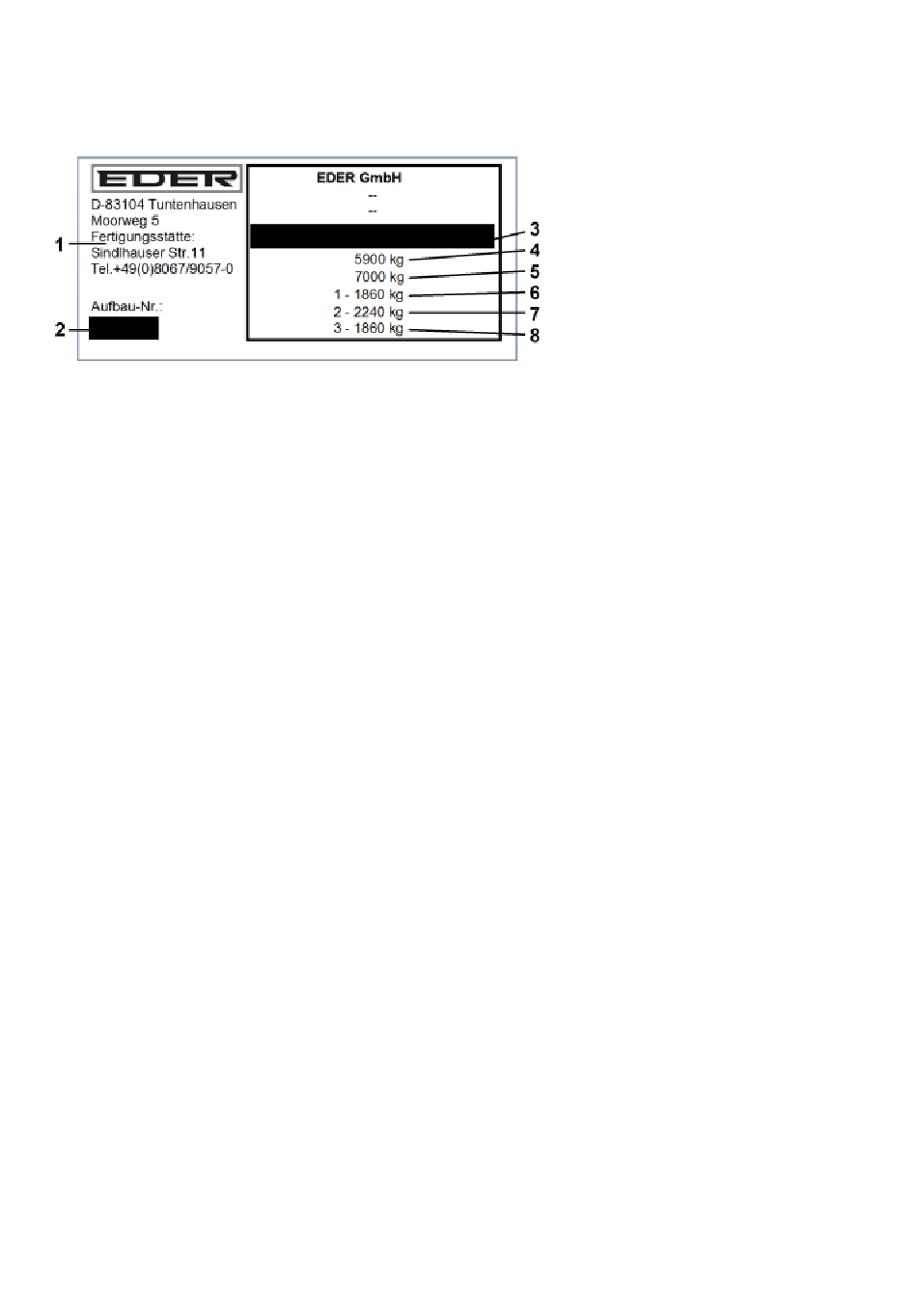

Type plate inside around the left B-pillar
1 Manufacturer
2 Body number
3 Vehicle identification number
4 Permissible total weight
5 Total train weight
6 Axle load axle 1
7 Axle load axle 2
8 Axle load axle 3
3.2

General description

The Blitzlader 2 car transporter with air suspension is available with the following basic
vehicles:
•
VW Crafter/MAN TGE with front- or rear-wheel drive and single cab
•
VW Crafter/MAN TGE with front- or rear-wheel drive and double cab
•
Mercedes Sprinter with rear-wheel drive and single cab
•
Mercedes Sprinter with rear-wheel drive and double cab
•
Ford Transit with rear-wheel drive and single cab
•
Opel Movano/Renault Master with front-wheel drive and single cab
•
The frame with the rear axle is expertly separated from the base vehicle behind the
driver's cab, so that only the power head remains. The plug-in units with a pivot point
for the plateau are flanged to this.
•
The plateau consists of a stable steel frame and a transversely planked aluminium
loading surface. At the pivot point, the plateau is connected to the plug-in units of the
powerhead.
•
The tilting of the plateau is done by an electro-hydraulic tilting shear. The
longitudinal axis of the vehicle is bent at the pivot point between the plateau and
the powerhead.
•
The electro-hydraulically extendable drive-on ramps form an inclined plane with the
plateau when tilted, on which the vehicle to be transported is moved up or down at a
drive-on angle of approx. 10°.
