4.4 Remote Control*
•
After switching on the set-up functions on the touch panel
plateau", page 21),
Start button (1). Alternatively, the radio remote control can also be activated by
pressing the radio remote control button on the touch panel.
•
The radio remote control is active when the radio remote control button on the touch
panel lights up and the LED function indicators of the radio remote control flash (see
separate radio remote control operating instructions).
•
After the last command received, the radio remote control remains active for approx.
five minutes. After that, it switches off again. This is done by automatically
activating the emergency stop function.
•
Press the desired buttons (2-4, 6-8) on the radio remote control to activate the
corresponding output on the receiver. The functions are analogous to the manual
control panel (see "Operation of the tilt plateau", page 21). The
pressed during operation.
•
To deactivate the radio remote control, press the Stop button (4). The button is
designed as an emergency stop function. In this state, all functions are deactivated.
switched off. To reactivate the set-up functions, see the section "Emergency stop
function".
Operating Instructions Algema Blitzlader 2 Air - Edition
wait approx. 3-4 seconds (system self-diagnosis). Then press the
(see "Operating the tilting

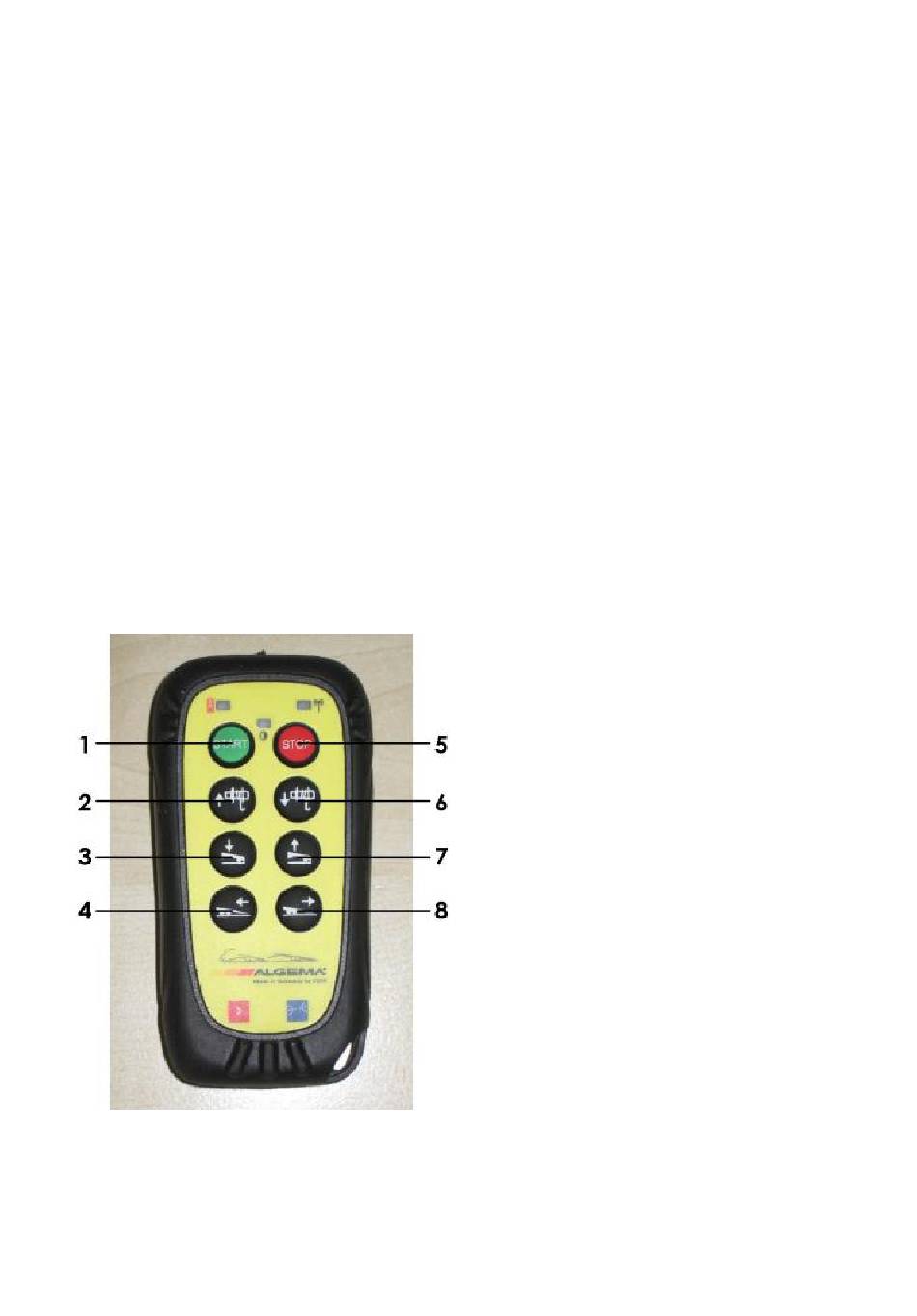

Radio remote control:

1. Start
2. Rope winch roll up
3. Plateau tilt
4. Ramps in
5. Stop (emergency stop)
6. Unwind cable winch
7. Plateau down
8. Ramps out
4 Operation and use
buttons must remain
