5.4.6 Lubricating and greasing moving parts

The tilt bearings and the tilt scissors are equipped with maintenance-free slide bearings.
Regular lubrication or greasing of the parts is not necessary. Likewise, all joints on the
tandem chassis are equipped with maintenance-free rubber bushings or plain bearings.
To ensure the proper functioning of the drive-up ramps, the centre ramp* and the tilt
sensors, some maintenance points must be lubricated regularly.

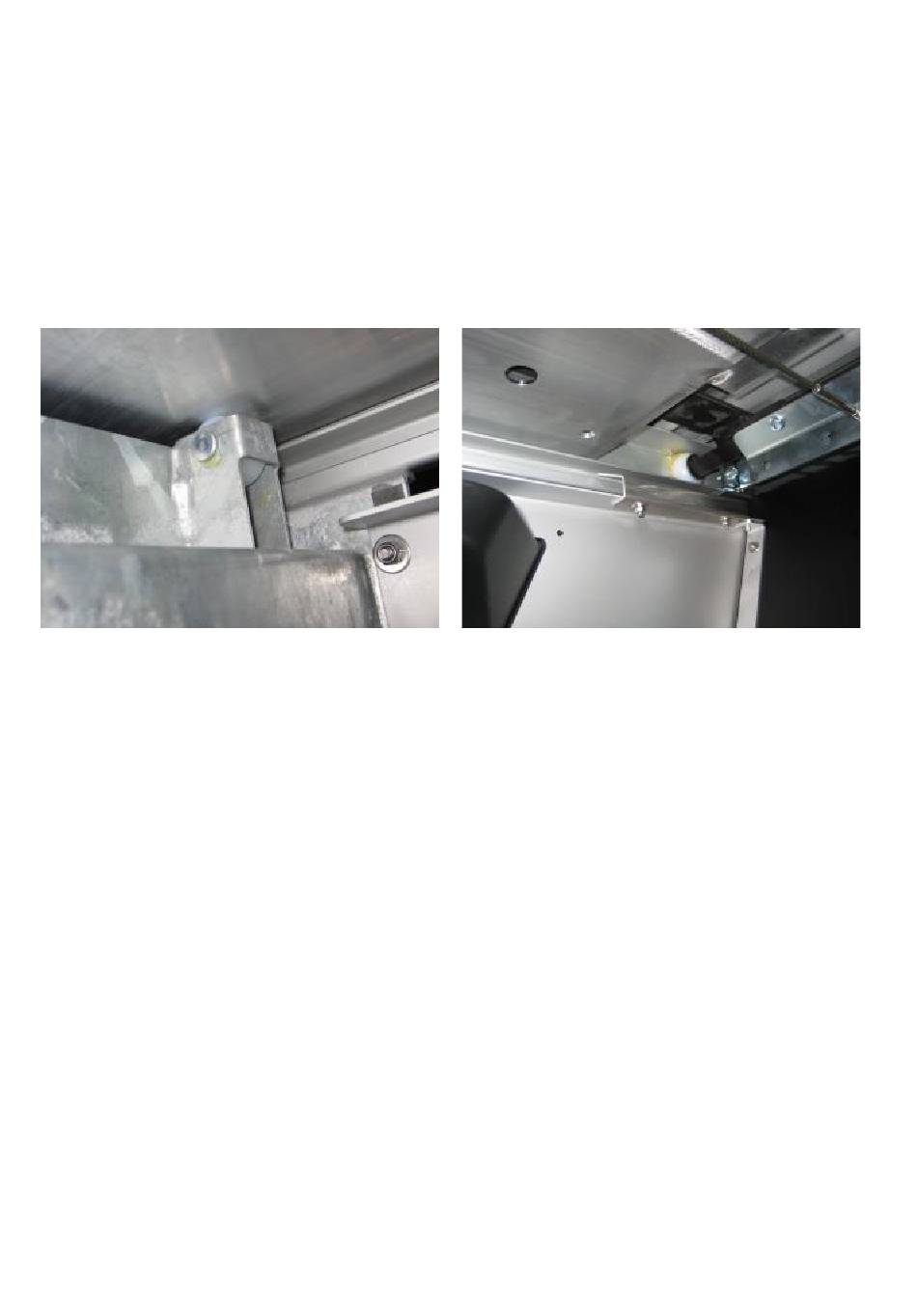

Support roller at the stern and part of the
sideways support surface on the railing
under the drive-on ramp
•
The sideways contact surfaces of the drive-up ramps (4x) and the centre ramp* (2x) in
the area of the railing and the frame must be sprayed with a service spray suitable for
aluminium and plastic.
•
Spray the support rollers at the rear under the drive-up ramps (4x) and the centre
ramp* (4x) with a service spray suitable for aluminium and plastic. Make sure that
the spray has good creeping properties and can penetrate laterally between the
support rollers and the frame.
•
Spray the guide rollers at the end of the drive-up ramps (4x) and the centre ramp*
(2x) with a service spray suitable for aluminium and plastic. Make sure that the spray
has good creeping properties and can penetrate laterally between the guide rollers
and guide carriages.
•
Lightly grease the stainless steel cable to reduce friction on the pulleys. The
deflection pulleys are equipped with a maintenance-free plain bearing.
72/ 100 Operating Instructions Algema Blitzlader 2 Air - Edition
Eder GmbH
Guide roller at the end of the ramp
