3 Description

3 Description
3.1

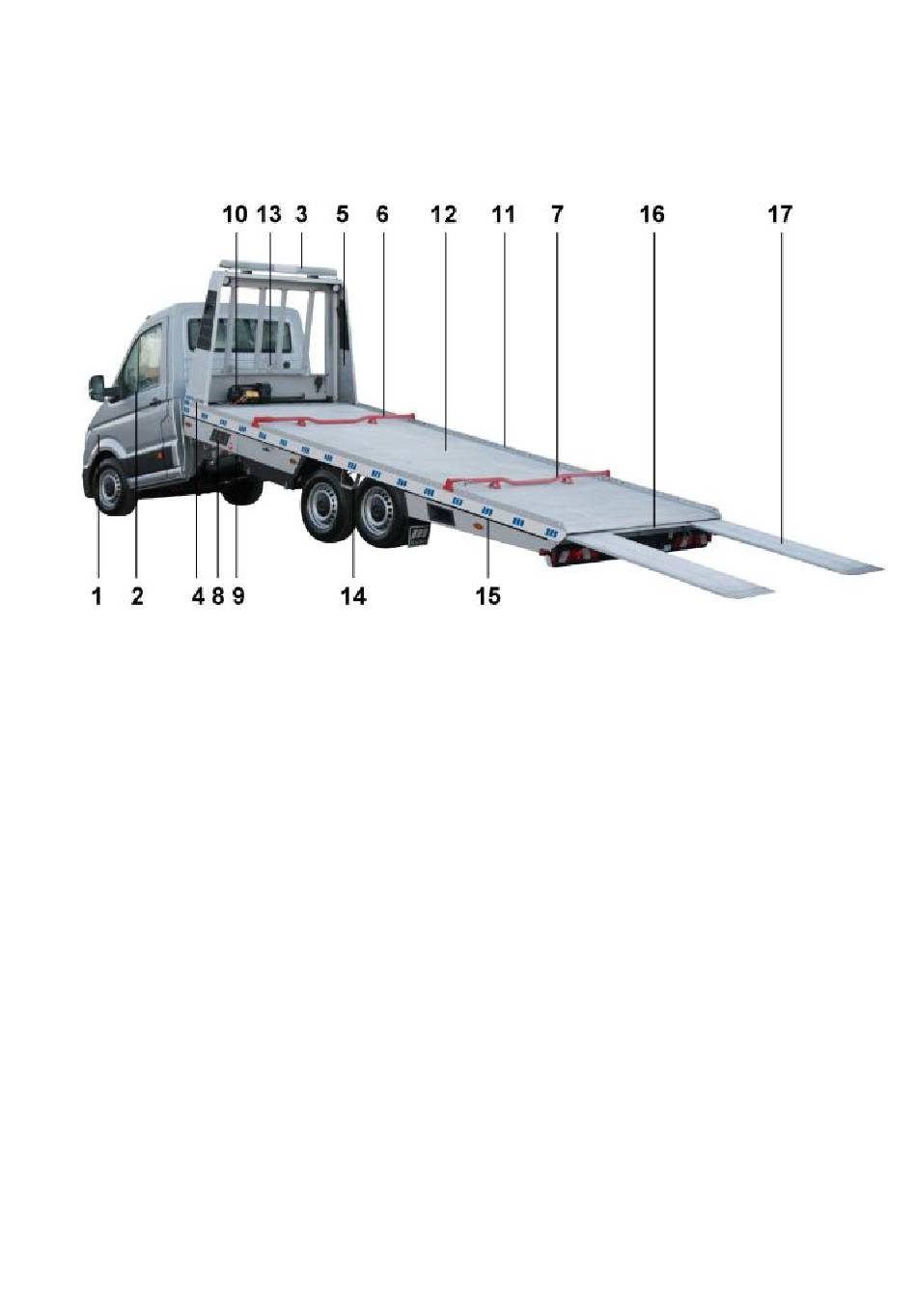

Overview

1 Base vehicle
2 Touch panel in the driver's cab
3 Warning Console*
4 Filling valve for air spring
5 Flyer*
6 Adjustable front wheel stop beam
7 Adjustable rear wheel stop beam
8 Manual control panel for plateau, ramps and winch
9 Operation lift axle*
10 Electric winch*
11 Aluminium perforated railing
12 Plateau
13 Loading ball on loading platform
14 Air spring
15 Spare wheel (2 pieces if necessary*)
16 Centre ramp* (retracted)
17 Drive-on ramps
18 towbar* (not included)
Special equipment
