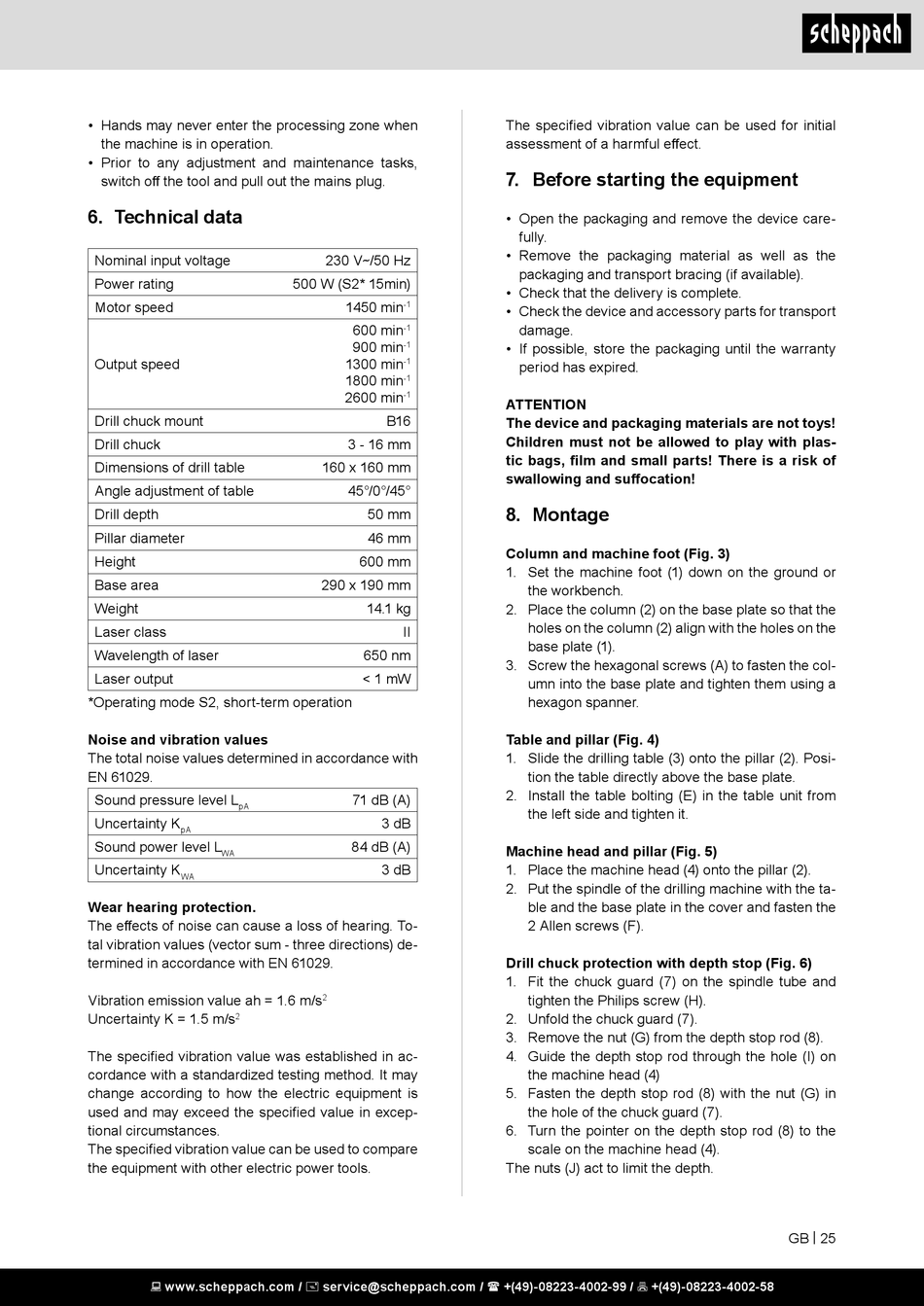

• Hands may never enter the processing zone when
the machine is in operation.
• Prior to any adjustment and maintenance tasks,
switch off the tool and pull out the mains plug.

6. Technical data

Nominal input voltage
Power rating
Motor speed
Output speed
Drill chuck mount
Drill chuck
Dimensions of drill table
Angle adjustment of table
Drill depth
Pillar diameter
Height
Base area
Weight
Laser class
Wavelength of laser
Laser output
*Operating mode S2, short-term operation
Noise and vibration values
The total noise values determined in accordance with
EN 61029.
Sound pressure level L
pA
Uncertainty K
pA
Sound power level L
WA
Uncertainty K
WA
Wear hearing protection.
The effects of noise can cause a loss of hearing. To-
tal vibration values (vector sum - three directions) de-
termined in accordance with EN 61029.
Vibration emission value ah = 1.6 m/s
Uncertainty K = 1.5 m/s
2
The specified vibration value was established in ac-
cordance with a standardized testing method. It may
change according to how the electric equipment is
used and may exceed the specified value in excep-
tional circumstances.
The specified vibration value can be used to compare
the equipment with other electric power tools.
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
230 V∼/50 Hz
500 W (S2* 15min)
1450 min
-1
600 min
-1
900 min
-1
1300 min
-1
1800 min
-1
2600 min
-1
B16
3 - 16 mm
160 x 160 mm
45°/0°/45°
50 mm
46 mm
600 mm
290 x 190 mm
14.1 kg
II
650 nm
< 1 mW
71 dB (A)
3 dB
84 dB (A)
3 dB
2
The specified vibration value can be used for initial
assessment of a harmful effect.

7. Before starting the equipment

• Open the packaging and remove the device care-
fully.
• Remove the packaging material as well as the
packaging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport
damage.
• If possible, store the packaging until the warranty
period has expired.
ATTENTION
The device and packaging materials are not toys!
Children must not be allowed to play with plas-
tic bags, film and small parts! There is a risk of
swallowing and suffocation!

8. Montage

Column and machine foot (Fig. 3)
1. Set the machine foot (1) down on the ground or
the workbench.
2. Place the column (2) on the base plate so that the
holes on the column (2) align with the holes on the
base plate (1).
3. Screw the hexagonal screws (A) to fasten the col-
umn into the base plate and tighten them using a
hexagon spanner.
Table and pillar (Fig. 4)
1. Slide the drilling table (3) onto the pillar (2). Posi-
tion the table directly above the base plate.
2. Install the table bolting (E) in the table unit from
the left side and tighten it.
Machine head and pillar (Fig. 5)
1. Place the machine head (4) onto the pillar (2).
2. Put the spindle of the drilling machine with the ta-
ble and the base plate in the cover and fasten the
2 Allen screws (F).
Drill chuck protection with depth stop (Fig. 6)
1. Fit the chuck guard (7) on the spindle tube and
tighten the Philips screw (H).
2. Unfold the chuck guard (7).
3. Remove the nut (G) from the depth stop rod (8).
4. Guide the depth stop rod through the hole (I) on
the machine head (4)
5. Fasten the depth stop rod (8) with the nut (G) in
the hole of the chuck guard (7).
6. Turn the pointer on the depth stop rod (8) to the
scale on the machine head (4).
The nuts (J) act to limit the depth.
