Interpretation of Operating Screens

•

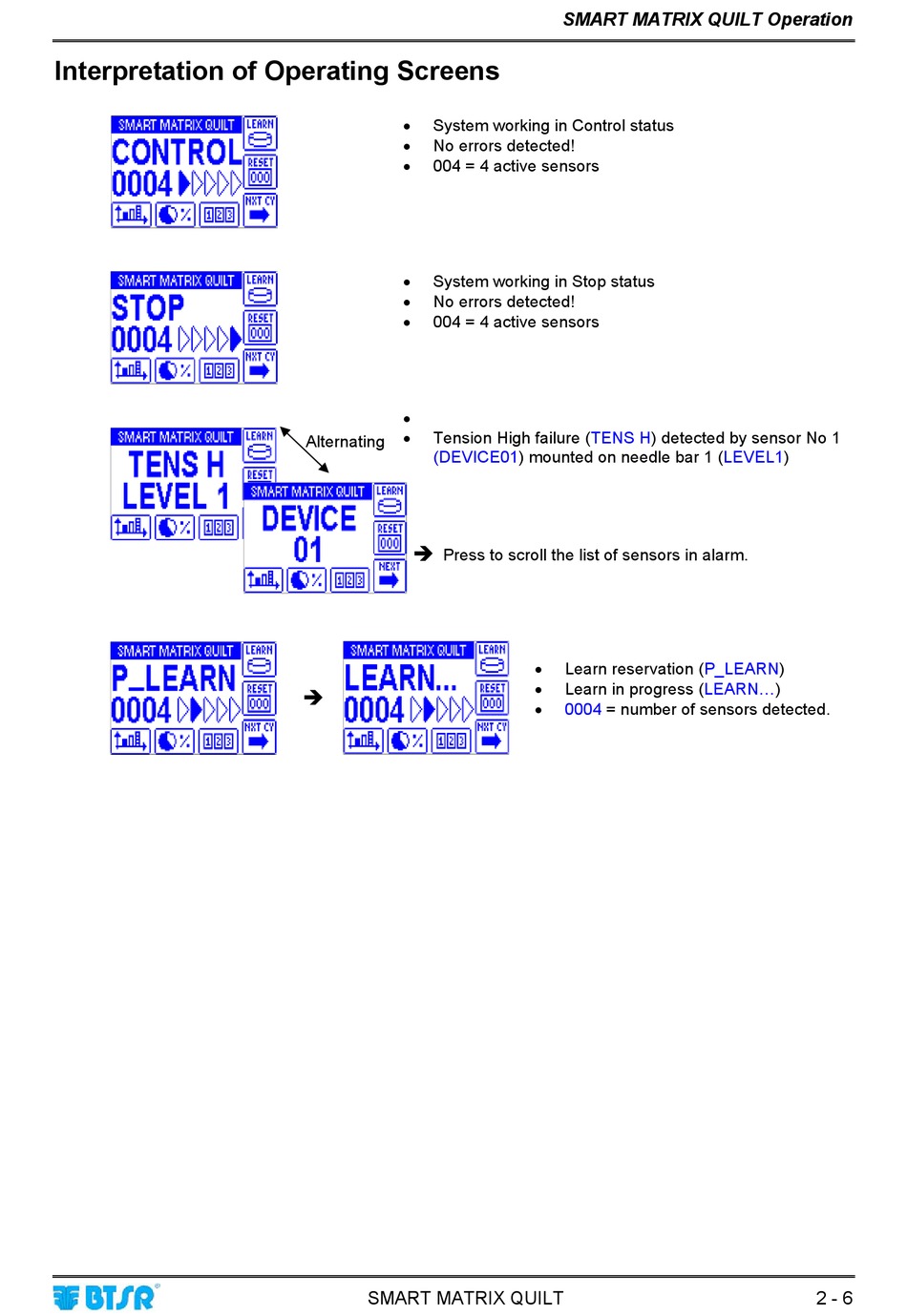

System working in Control status
•
No errors detected!
•
004 = 4 active sensors
•
System working in Stop status
•
No errors detected!
•
004 = 4 active sensors
•
•
Tension High failure
Alternating
(DEVICE01) mounted on needle bar 1 (LEVEL1)
!
Press to scroll the list of sensors in alarm.
!
SMART MATRIX QUILT
SMART MATRIX QUILT Operation
(TENS H) detected by sensor No 1
•
Learn reservation (P_LEARN)
•
Learn in progress (LEARN...)
•
0004 = number of sensors detected.
