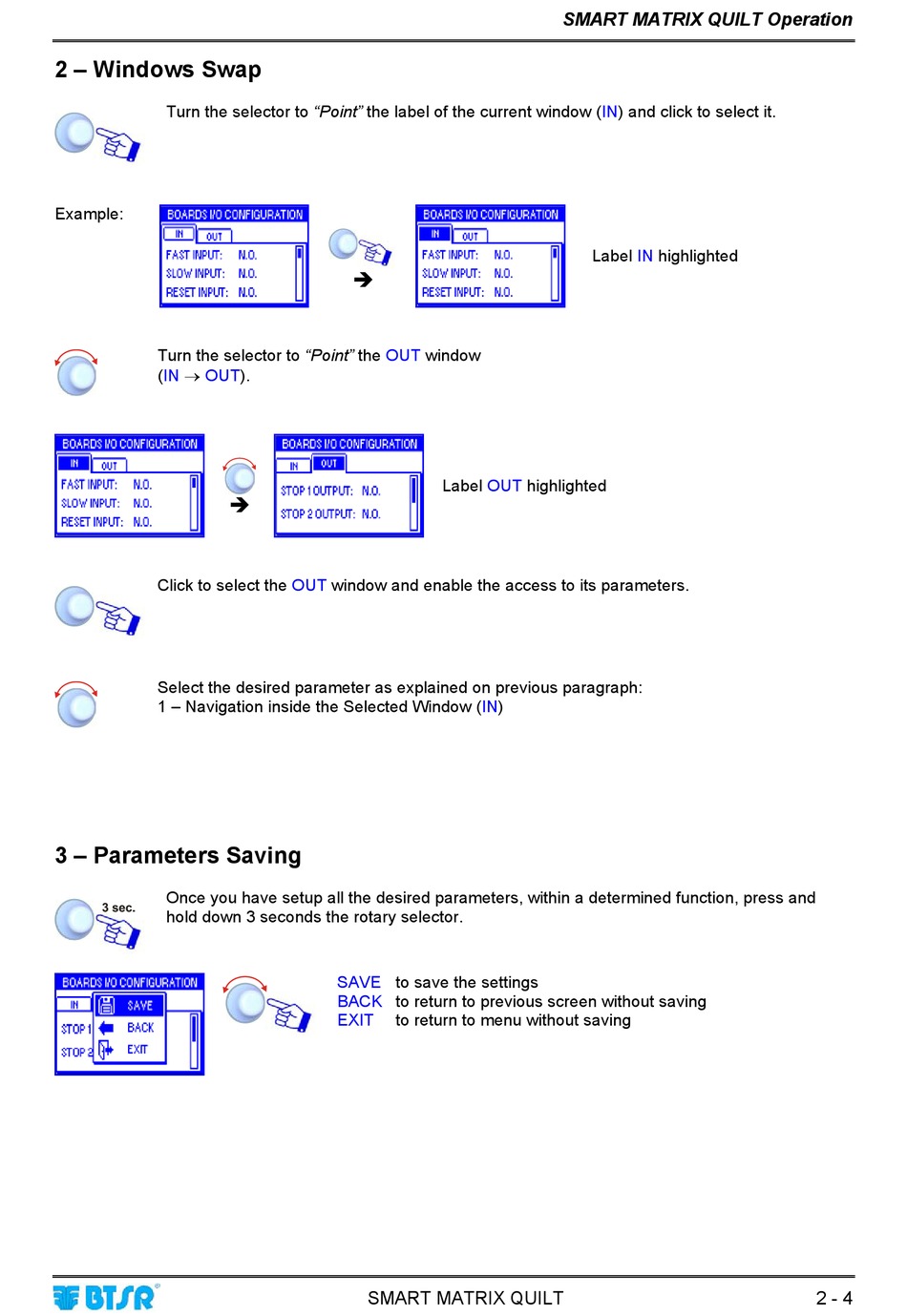

2 – Windows Swap
Turn the selector to "Point" the label of the current window (IN) and click to select it.
Example:
Turn the selector to "Point" the
→ OUT).
(IN
Click to select the
Select the desired parameter as explained on previous paragraph:
1 – Navigation inside the Selected Window (IN)
3 – Parameters Saving
Once you have setup all the desired parameters, within a determined function, press and
hold down 3 seconds the rotary selector.
!
OUT
!
OUT window and enable the access to its parameters.
SAVE to save the settings
BACK to return to previous screen without saving
EXIT to return to menu without saving
SMART MATRIX QUILT
SMART MATRIX QUILT Operation
Label
window
Label OUT highlighted
IN highlighted
2 - 4
