Choice of Reset Mode

This function allows you to choose the reset operation mode, after an alarm condition (either MANUAL or
AUTOMATIC).
If you select the MANUAL
another button capable of providing the
CONFIG function), prior to restart the machine.
Is you select the AUTO
any manual RESET signal. The system automatically acknowledges the restart condition through the
SLOW/FAST or PRX signals, and it automatically carries out the
option, then after an alarm signaling, you will have to press the
RESET
option, then you may restart the machine after an alarm signaling, without supplying
SMART MATRIX QUILT

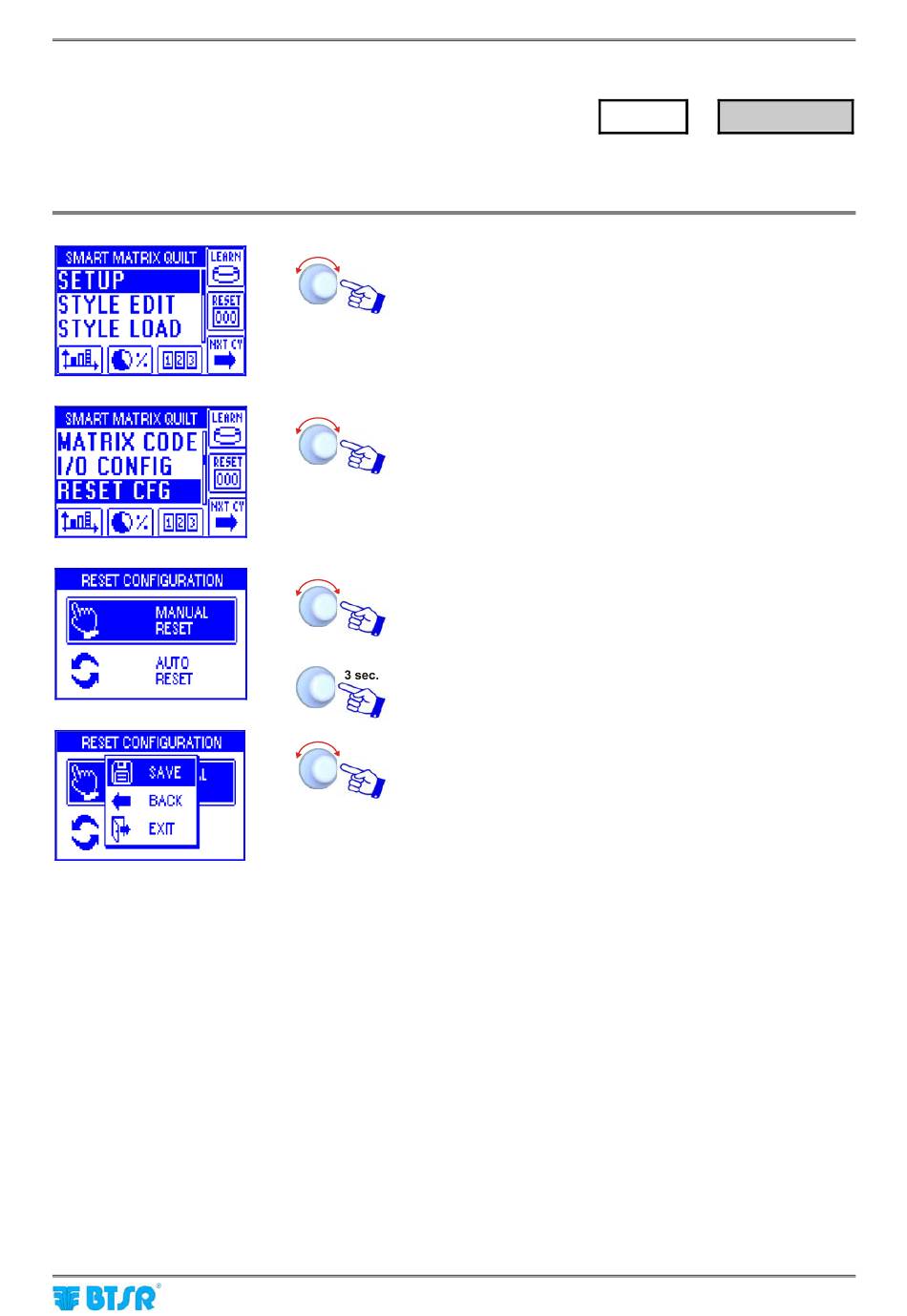

Enter the SETUP menu.
Select RESET CFG.
Select the desired option
RESET).
To activate the save function.
SAVE to save the choice,
screen without saving, EXIT
signal (according to the polarity previously set with the
RESET
Choice of Reset Mode
→
SETUP RESET CFG
(MANUAL RESET or AUTO
BACK to return to the previous
to return to menu.
RESET
function.
button, or
I/O
2 - 14
