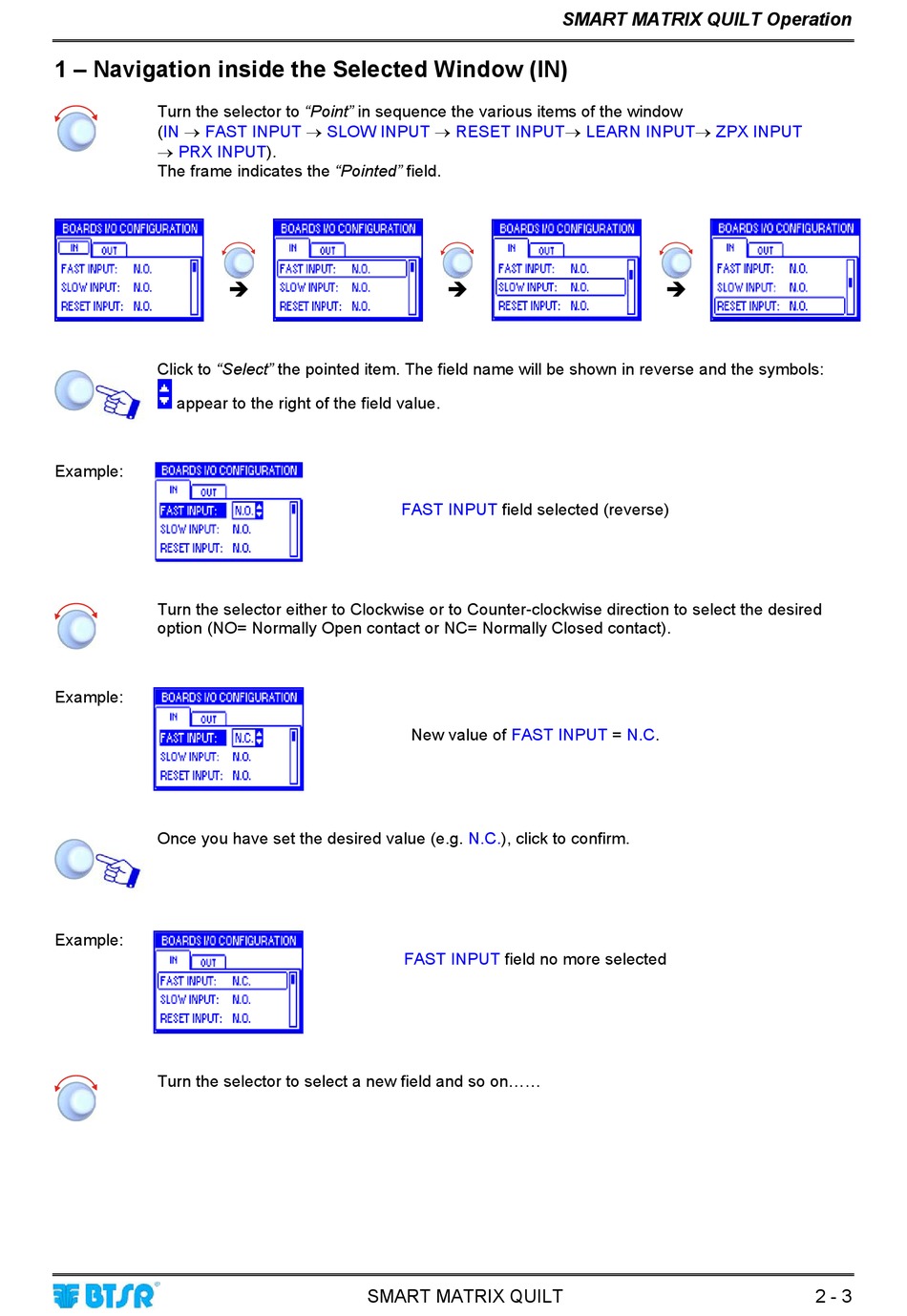

1 – Navigation inside the Selected Window (IN)
Turn the selector to "Point" in sequence the various items of the window
→
(IN FAST INPUT
→
PRX INPUT).
The frame indicates the "Pointed" field.
Click to "Select" the pointed item. The field name will be shown in reverse and the symbols:
appear to the right of the field value.
Example:
Turn the selector either to Clockwise or to Counter-clockwise direction to select the desired
option (NO= Normally Open contact or NC= Normally Closed contact).
Example:
Once you have set the desired value (e.g. N.C.), click to confirm.
Example:
Turn the selector to select a new field and so on......
→
SLOW INPUT
!
SMART MATRIX QUILT
SMART MATRIX QUILT Operation
→
RESET INPUT→
!
FAST INPUT field selected (reverse)
New value of FAST INPUT
FAST INPUT field no more selected
LEARN INPUT→ ZPX INPUT
!
= N.C.
2 - 3
