btsr SMART MATRIX QUILT Operating Manual page 47

=alarm enabled
=alarm disabled
(*) The alarm will be generated only if the contitions specified with
persist for the number of PRX pulses specified with this parameter.

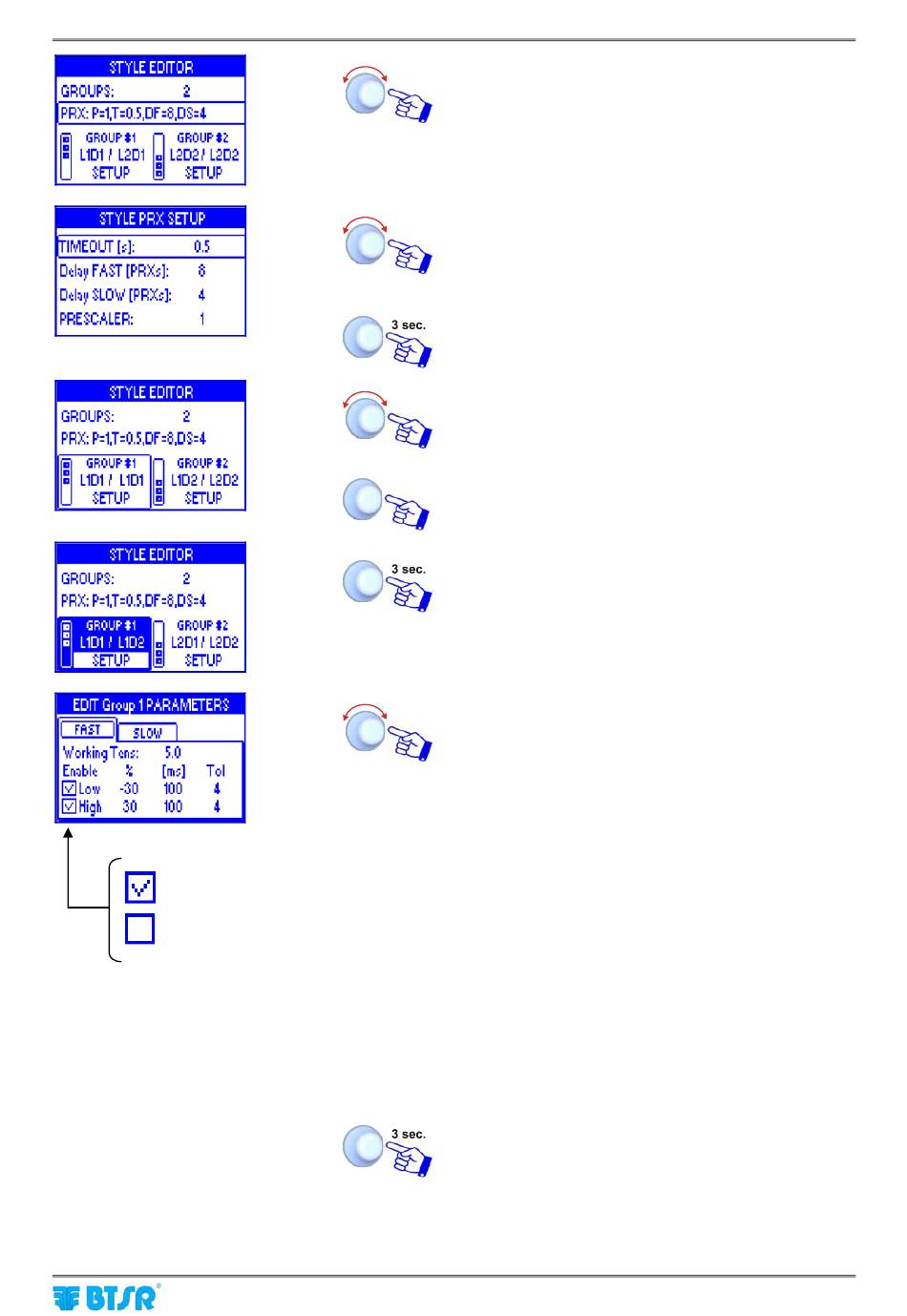

Select the row
Set the desired values: TIMEOUT,
[PRXs], Delay SLOW
detailed meaning of these parameters, please refer
to section 3)
To confirm che desired option and return to previous
menu.
Select GROUP#1
Set the identification number of the last device
belonging to the first group (L1D2) and confirm.
To start setting the parameters related to group 1
(GROUP #1).
Set desired values in the
- Working
4.000 gr]
- LOW (%):minimum tension value, below which
an alarm will be generated
÷
[-1
(ms): running time with tension ≤
- LOW
after which an alarm will be generated [10
5.000 ms].
Tol (Tolerance): [1
-
- HIGH (%): maximum tension value, above
which an alarm will be generated
÷
[1
(ms): running time with tension ≥
- HIGH
after which an alarm will be generated [10
5.000 ms].
- Tol (Tolerance): [1
To move to the setting of parameters related to next
group (GROUP#2) or to save the style to the
database once you have setup all the parameters.
LOW / HIGH (%)
SMART MATRIX QUILT
Style Programming (TS5/TS7)
PRX:P=1...
Delay FAST
[PRXs], PRESCALER.(For the
FAST window:
Tens: = work tension [set point] [0.1
-100% of the setpoint value]
÷
250] (*)
999% of the setpoint value]
÷
250] (*)
and LOW / HIGH (ms)
÷
LOW
÷
HIGH
÷
parameters
2 - 27
