Information reading from
SM-DIN/QUILT Boards

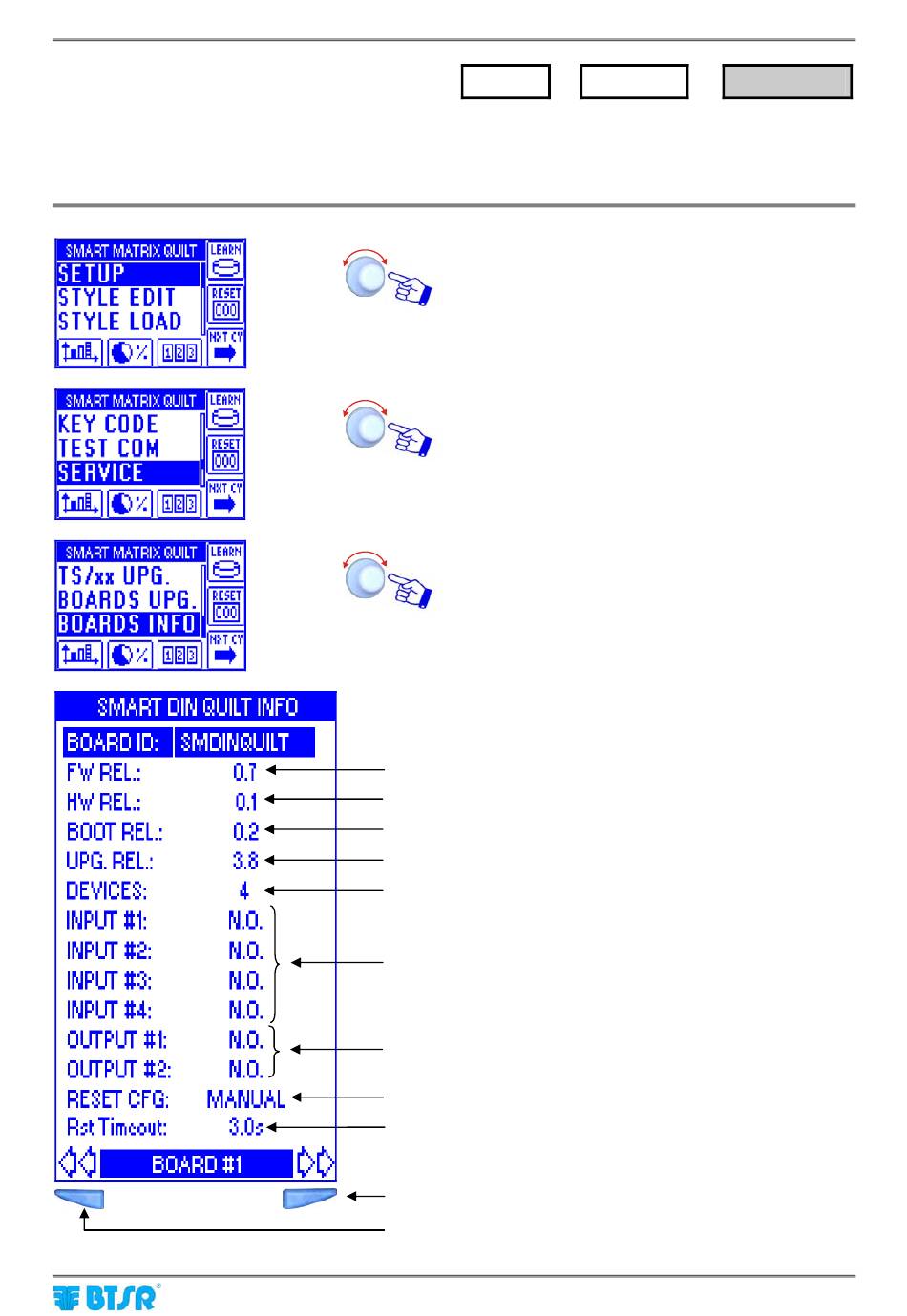

This function allows you to read various information stored to SM-DIN Boards
Such information could be useful to BTSR Service Department to solve particular problems.

Information reading from SM-DIN/QUILT Boards

SETUP
Enter the SETUP
Select SERVICE.
Select BOARDS INFO.
Firmware Release currently loaded on the Board
Board Hardware Release
Board BOOTLOADER Program Release
Sensor Upgrading Release
Number of TS/xx sensors currently managed by the Board
Contact configuration
Contact configuration
Reset Mode Configuration
Reset Timeout (time after which the
released following, an alarm condition, after the machine
Stop).
Selecting the next Board
Selecting the previous Board
SMART MATRIX QUILT
→ SERVICE →
menu.
(NO or NC) of input signals
(NO or NC) of output signals
(MANUAL or AUTO).
STOP signal will be
BOARDS INFO
2 - 23
