SMART MATRIX
SM-DIN
TS5 Connection
SMART MATRIX ↔ SM-DIN ↔ TS5 Connection

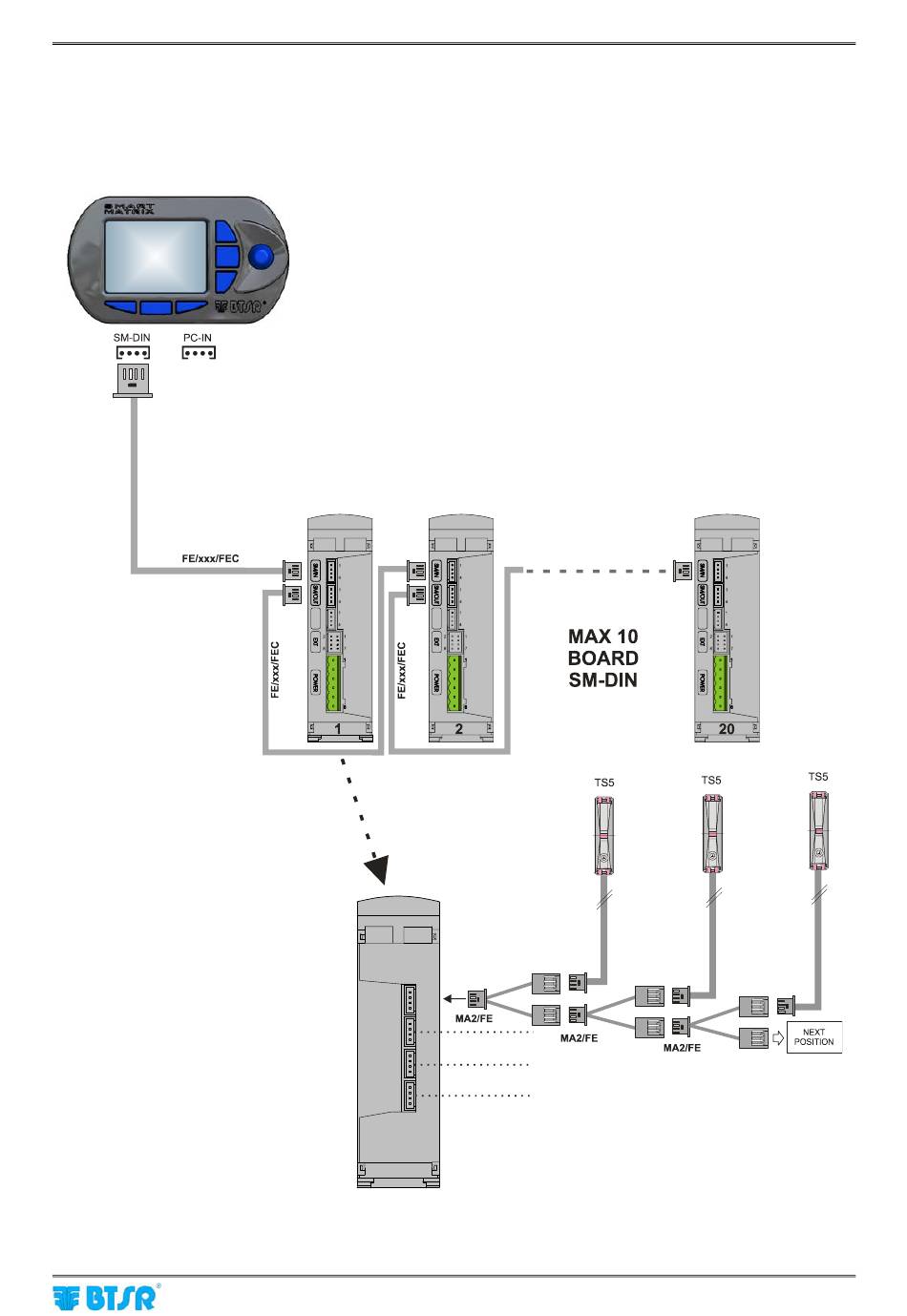

The following diagram shows the connection of TS5 Sensors to SM-DIN Boards, as well as the connection
between SM-DIN Boards and SMART MATRIX.
SMART MATRIX QUILT
1 - 2
