Graphics - btsr SMART MATRIX QUILT Operating Manual

Graphics

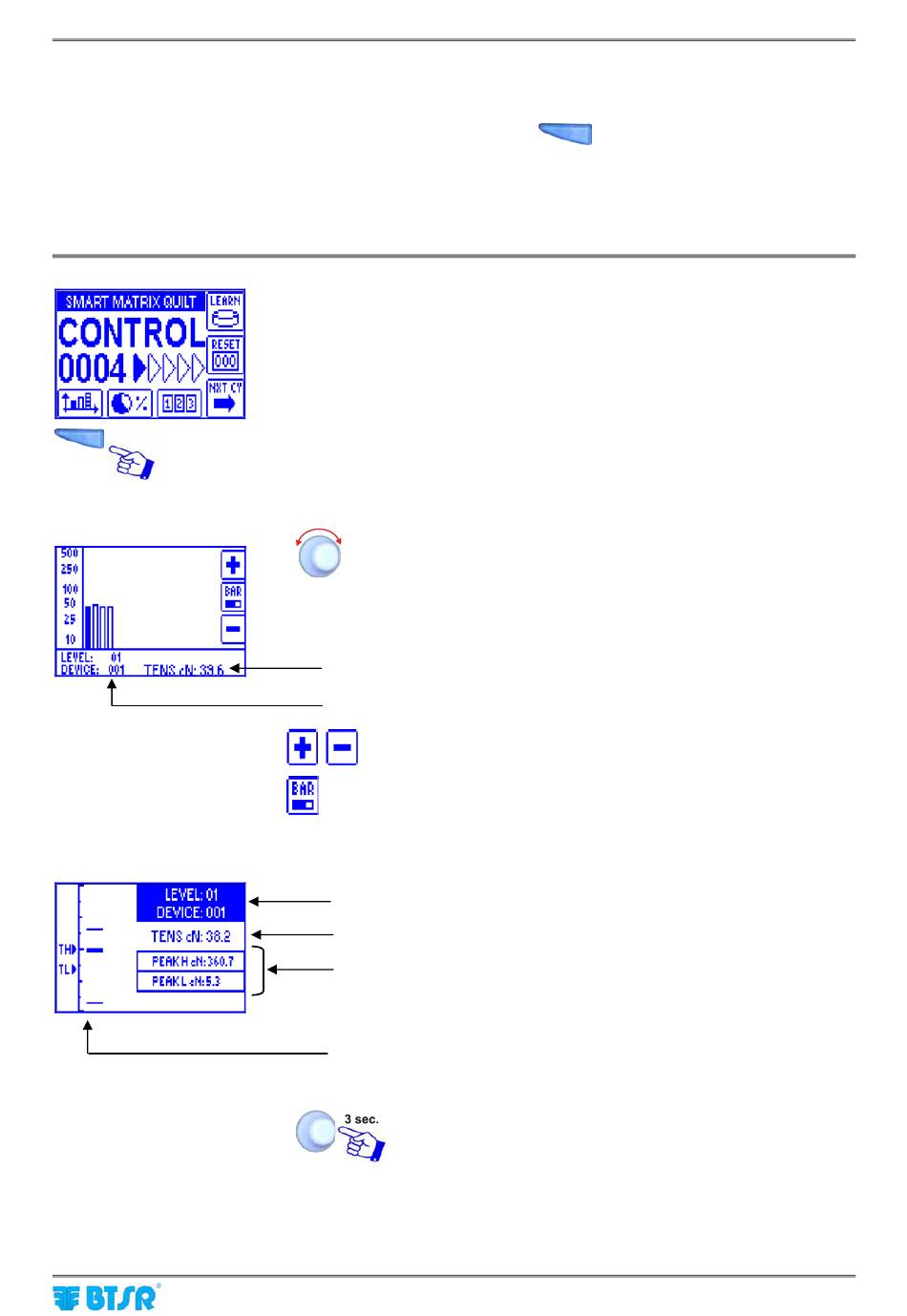

This function, which can be activated pressing the shortcut button
graphic display related to TS5 / TS7 sensors.
" Histogram showing the real-time tension detected by each sensor.
" Bar Graph indicating for each sensor the real time tension value and the peak values (maximum and
minimum tension) stored during the inspection session.
Histogram
Bar Graph
Press the graphics direct access button.
To select the various positions.
Tension value of selected sensor (dark bar)
Sensor position (LEVEL NN, DEVICE NN)
to either increase or decrease the vertical axis scale. (tension
to move to the bar graph option.
Selected device (turning the rotary selector)
Real-time tension on the selected device
Peak values (min and max tension) on the selected device.
Graphic indications of peak values
Select EXIT
CONTROL status.
SMART MATRIX QUILT
, provides two different types of
to return to the histogram display and then to
Graphics
2 - 32
