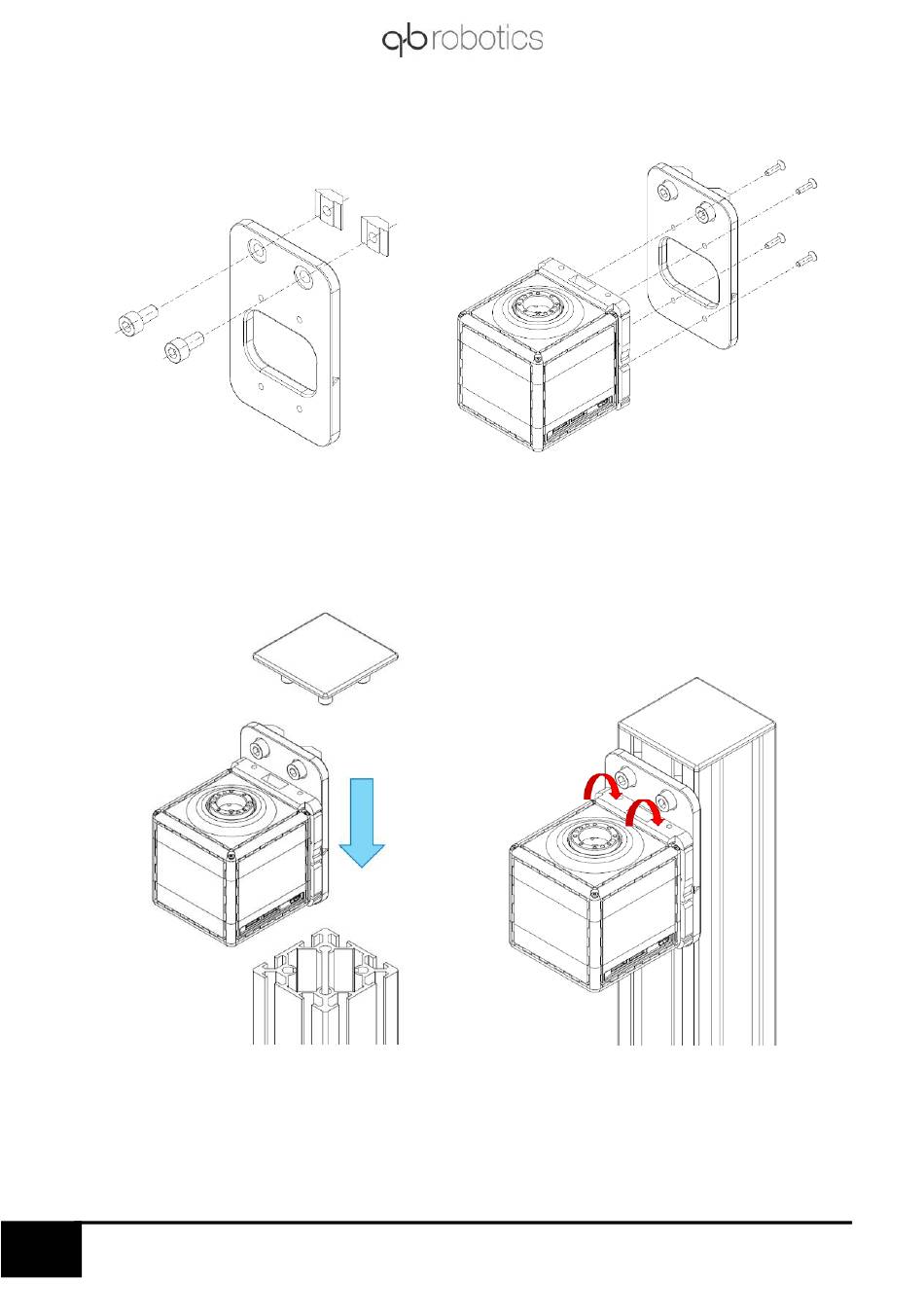

Place two nuts 3014 and two screws 3010 in the plastic interface, then connect the Flat Flange
prepared before, by four screws 3007.
Figure 5-17 Connection of the robot to the plastic interface.
Connect the interface to the front surface of the structure inserting it from the top, then lock
two screws 3010 and place the cup 3018.
Figure 5-18 Connection of the robot to the structure.
You are free to place the robot at the desired height, thanks to the graduated strip on the side
of the profile.
51
28 aprile 2021
