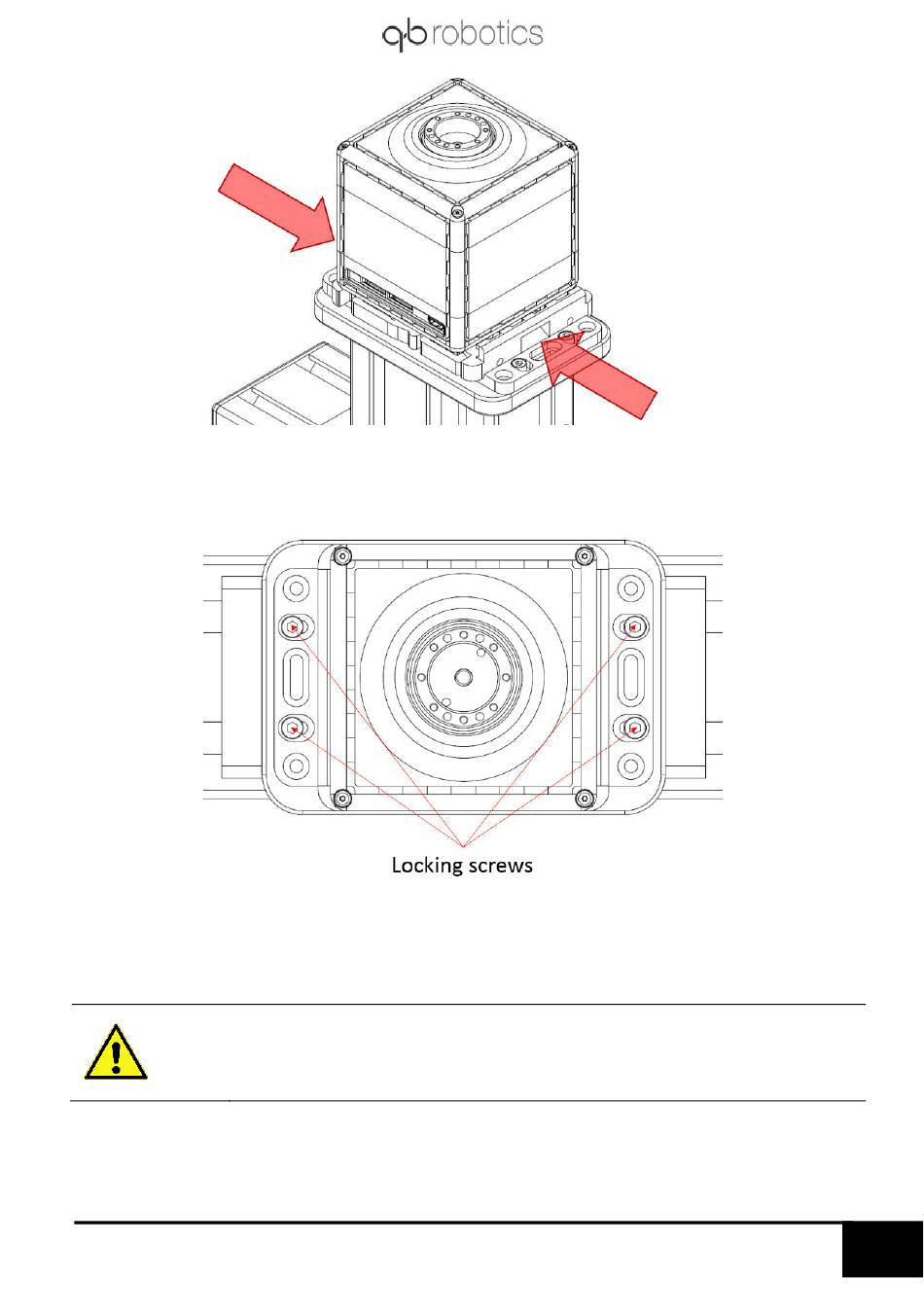

Figure 5-5 STEP 2: Placing of qbmove Advanced and closure of flange.
Figure 5-6 STEP 3: Screws to lock the qbmove Advanced on the structure.
The structure must be clamped on a solid surface, to avoid damages and
increase the stability of the robot.
