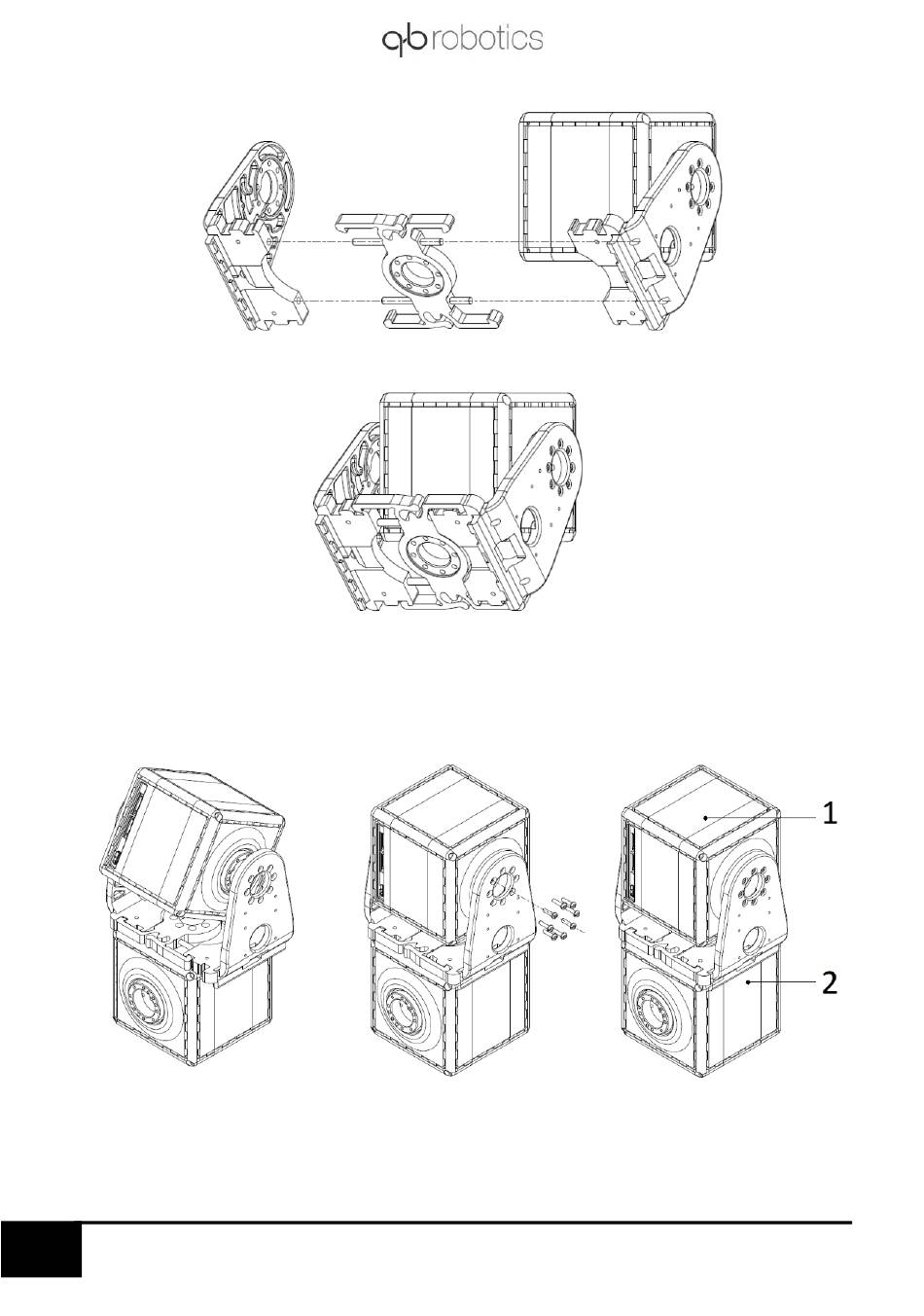

Figure 4-22: C-Flange assembly procedure
Place the removable 1003 component in correspondence of the first notches, as shown in Figure
4-22. Assembly of the C Flange with the QB-move
Figure 4-23: qbmove C-Flange assembly procedure
Place the qbmove ② in the desired position and then close the C Flange.
