QB Robotics qbmove Advanced Kit User Manual page 39

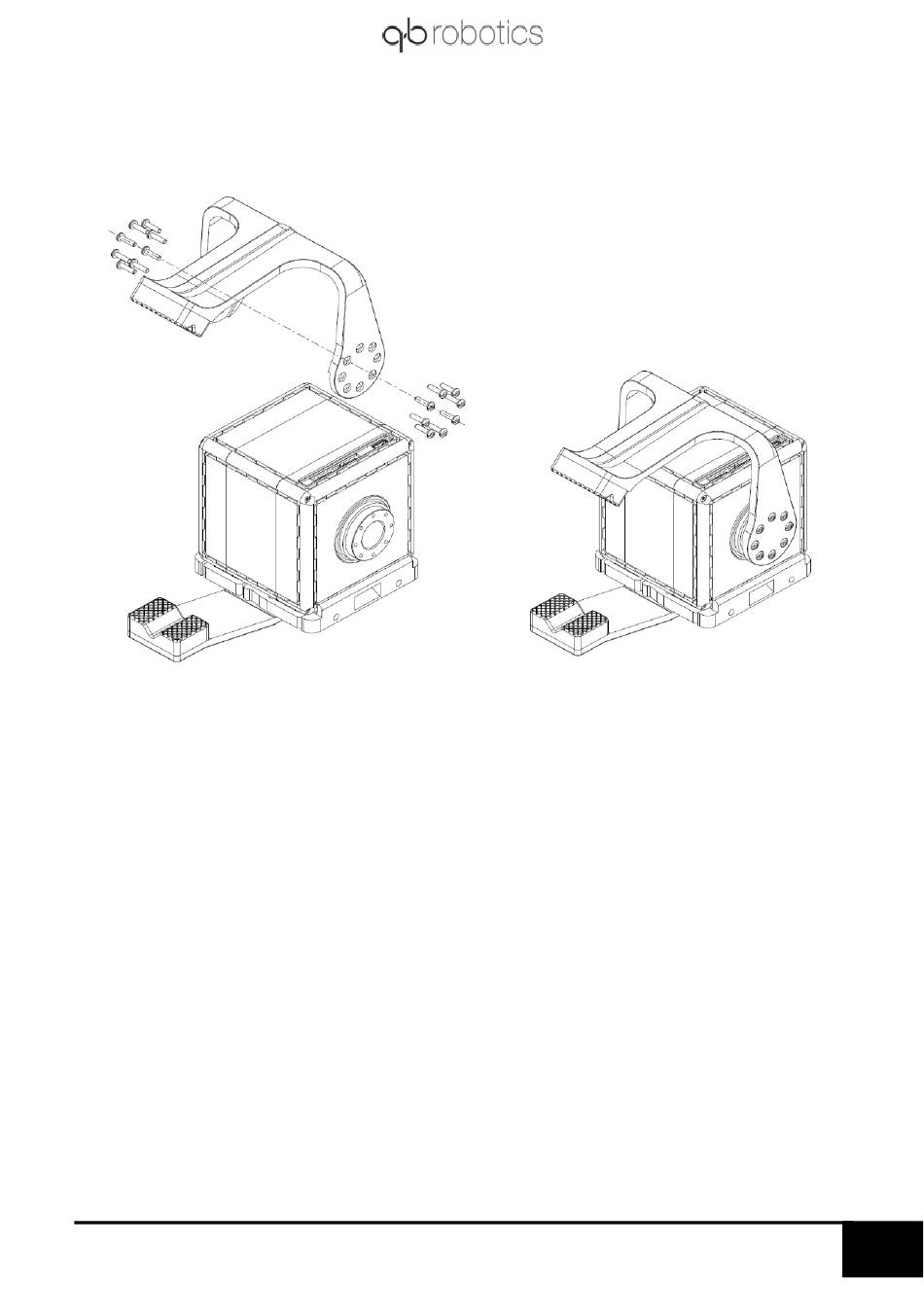

Assemble the second finger, component 1006, using the 3003 screws, as shown in Figure 4-33.
The qbmove must be equipped with a rear pulley, as like in a C Flange mounting.
Figure 4-34: Assembled gripper
