4.5.1
Assembly sequence
Assemble the 1005 component on a Flat Flange using four 3008 nuts and two 3007 screws, as
shown in figure below.

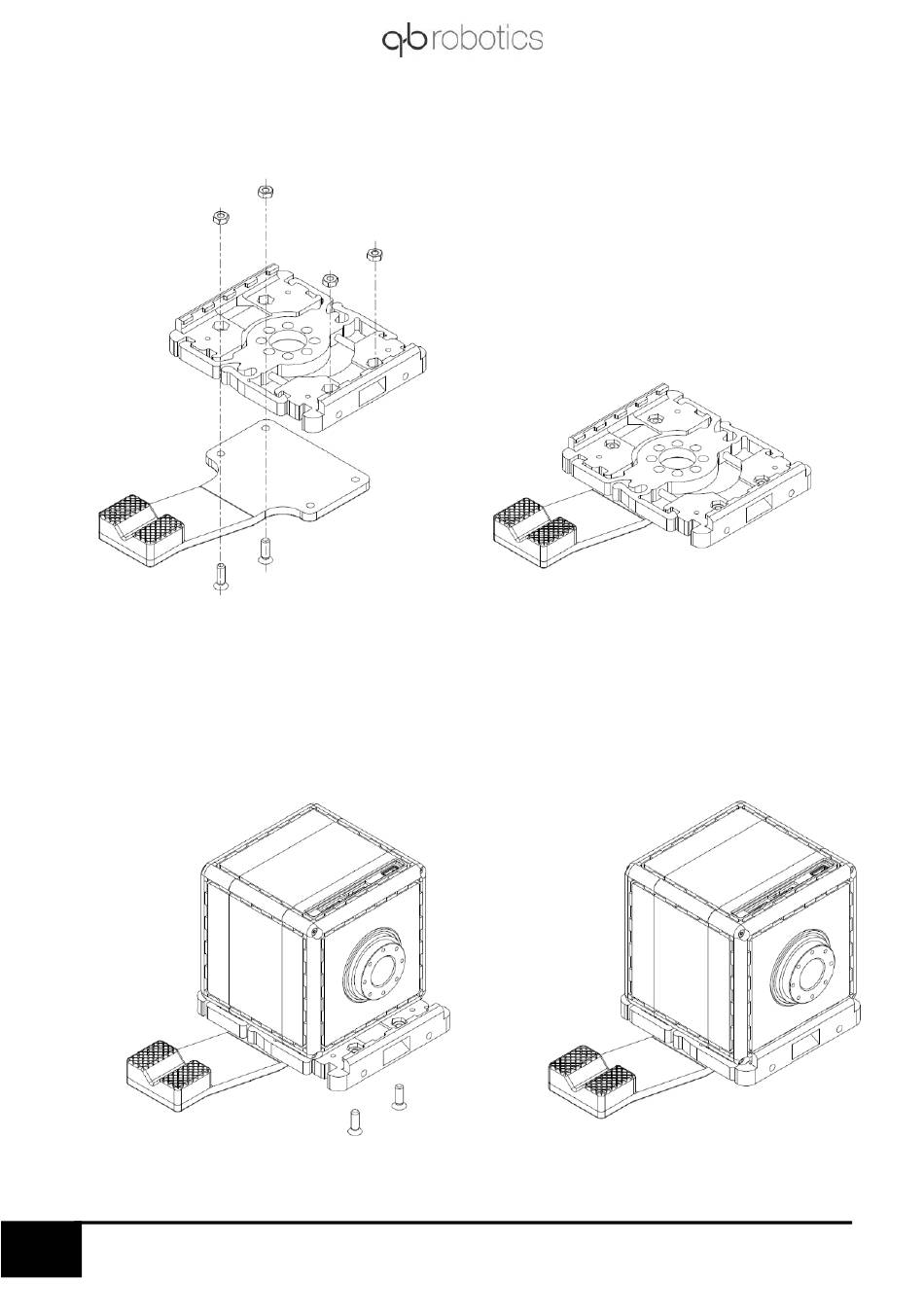

Figure 4-32: Fixed finger assembly procedure
Assemble the fixed finger on the qbmove closing the Flat Flange and locking it by two 3007
screws, as shown in Figure 4-32. Make sure to orient the qbmove as shown, in order to have the
electrical connectors as indicated.
Figure 4-33: Fixed finger qbmove assembly procedure
35
28 aprile 2021
