Assembly sequence
Use of the CORE component.

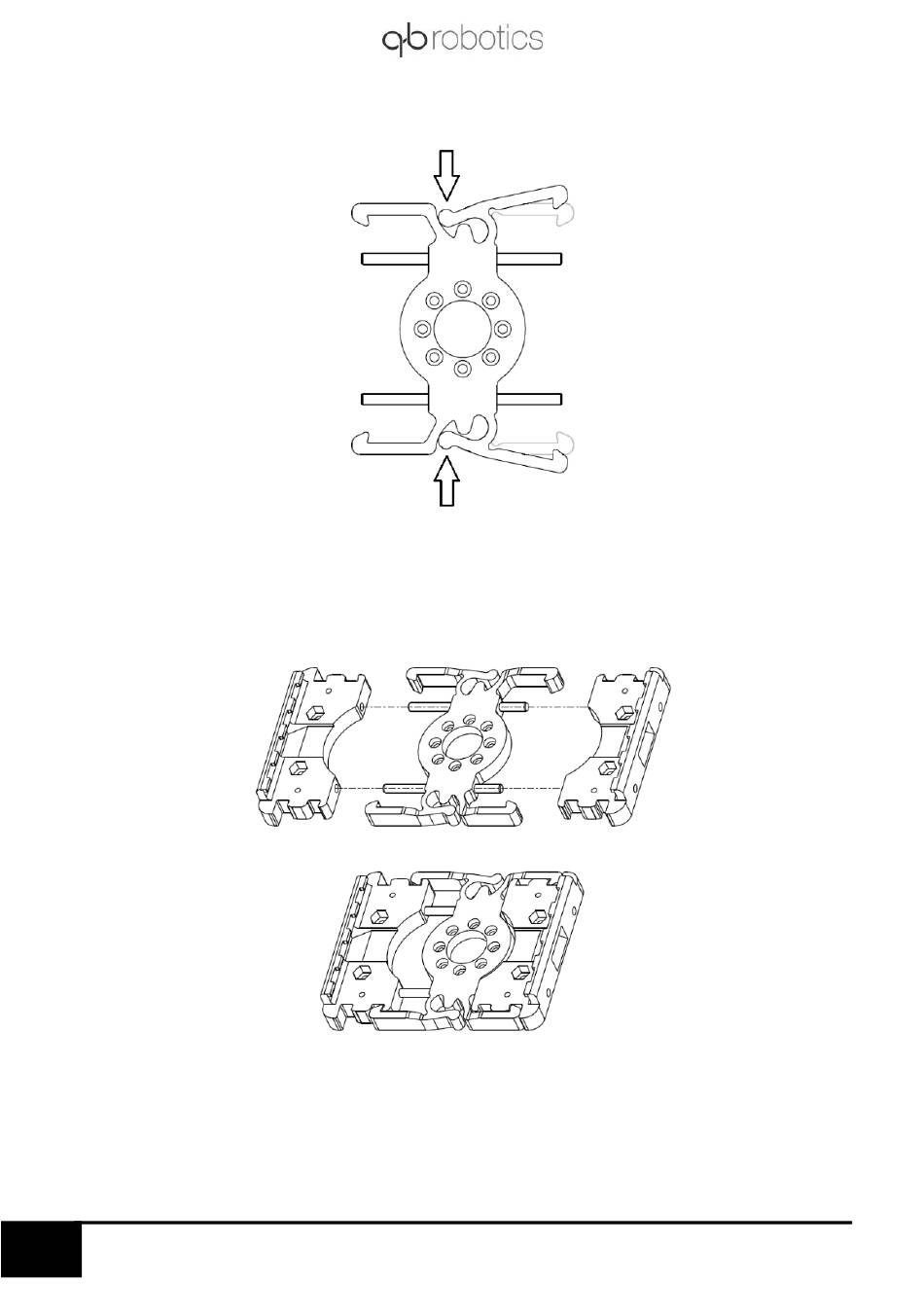

Figure 4-8: Anchors Opening
In Figure 4-8 arrows represent points to push in order to open the locking mechanism.
Figure 4-7: Flat Flange
Assemble the 1002 parts with the 1001 central core, using the two pins as reference.
Make sure to the orientation of the two components is the same and with the anchor teeth on
the same side of the counterbores of the central component.
