Assembly sequence
Preparation of the Base Flange
Assemble the 1002 parts with the 1004 parts using two 3007 screws and two 3008 nuts, as shown
in Figure 4-15.

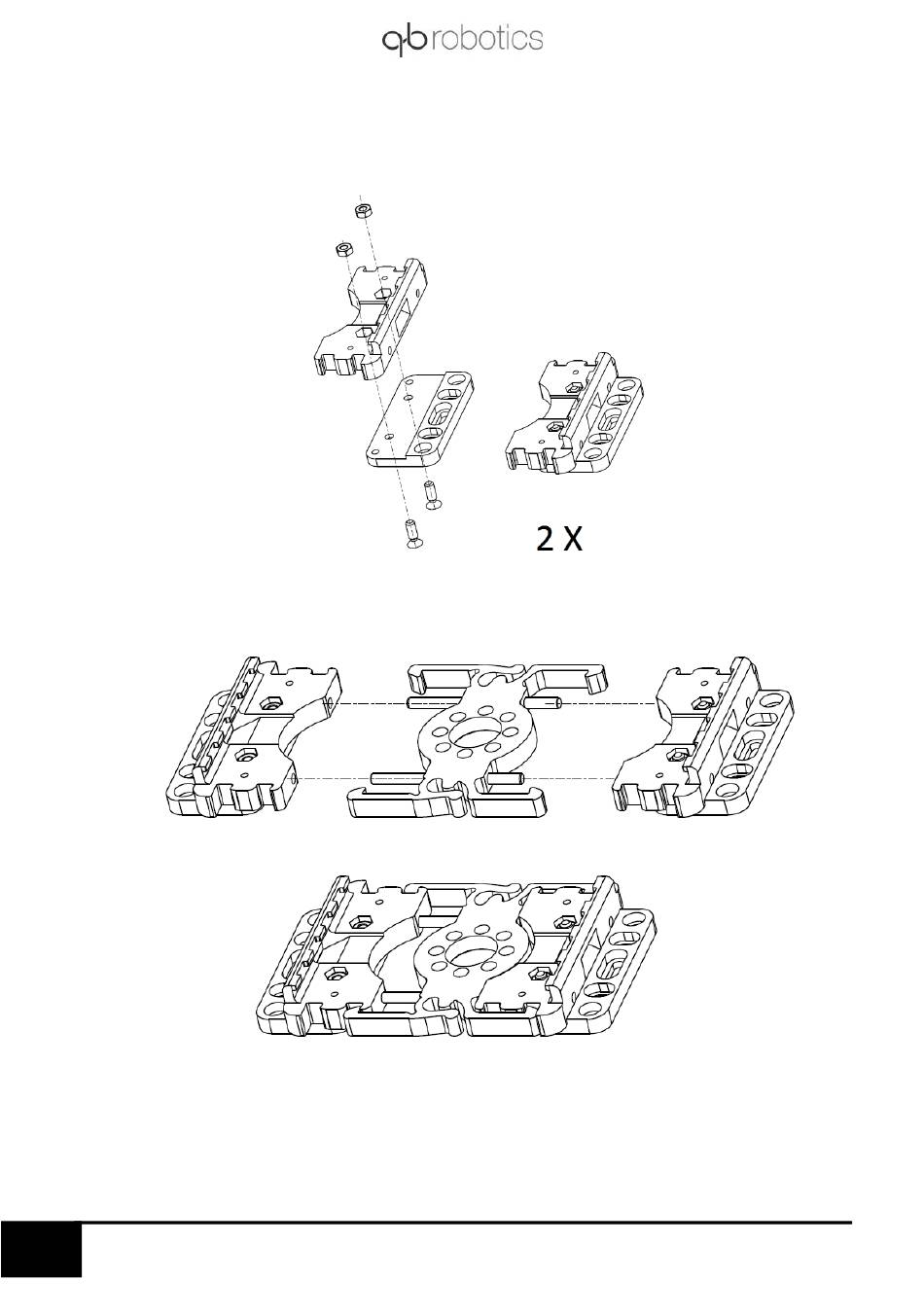

Figure 4-15: Add-on assembly procedure
Assembly of the Base Flange
Figure 4-16: Base Flange
Assemble the two parts obtained with the 1001 central core, using the two pins as references.
Make sure to the orientation of the two components is the same and with the anchor teeth on
the same side of the counterbores of the central component.
