Assembly the Double flat flange with the qbmove.
With the double flat flange, you can rigidly connect two qbmove with different orientation. An
example is shown in Figure 4-29.

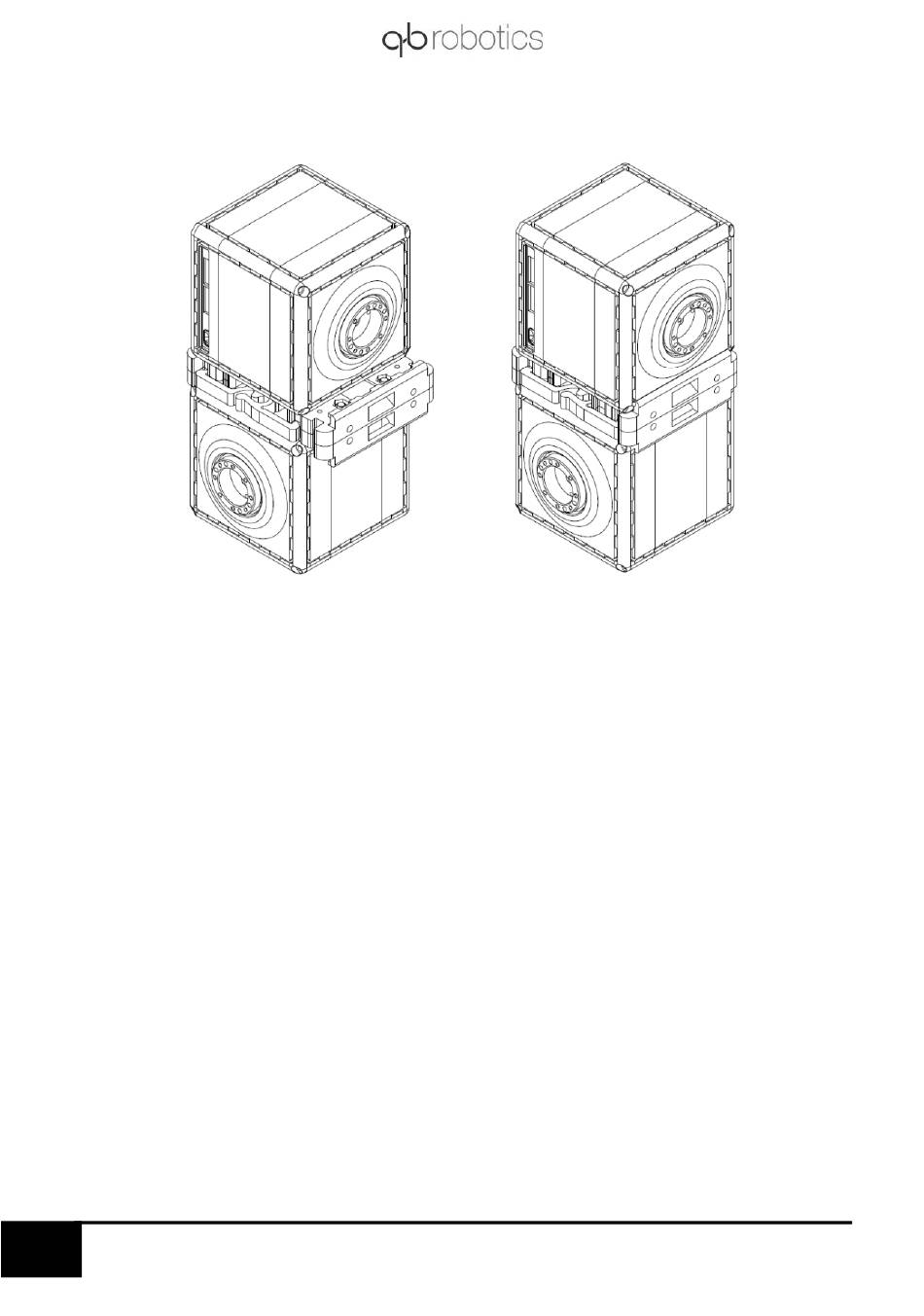

Figure 4-29: qbmove double flat flange assembly
33
28 aprile 2021
