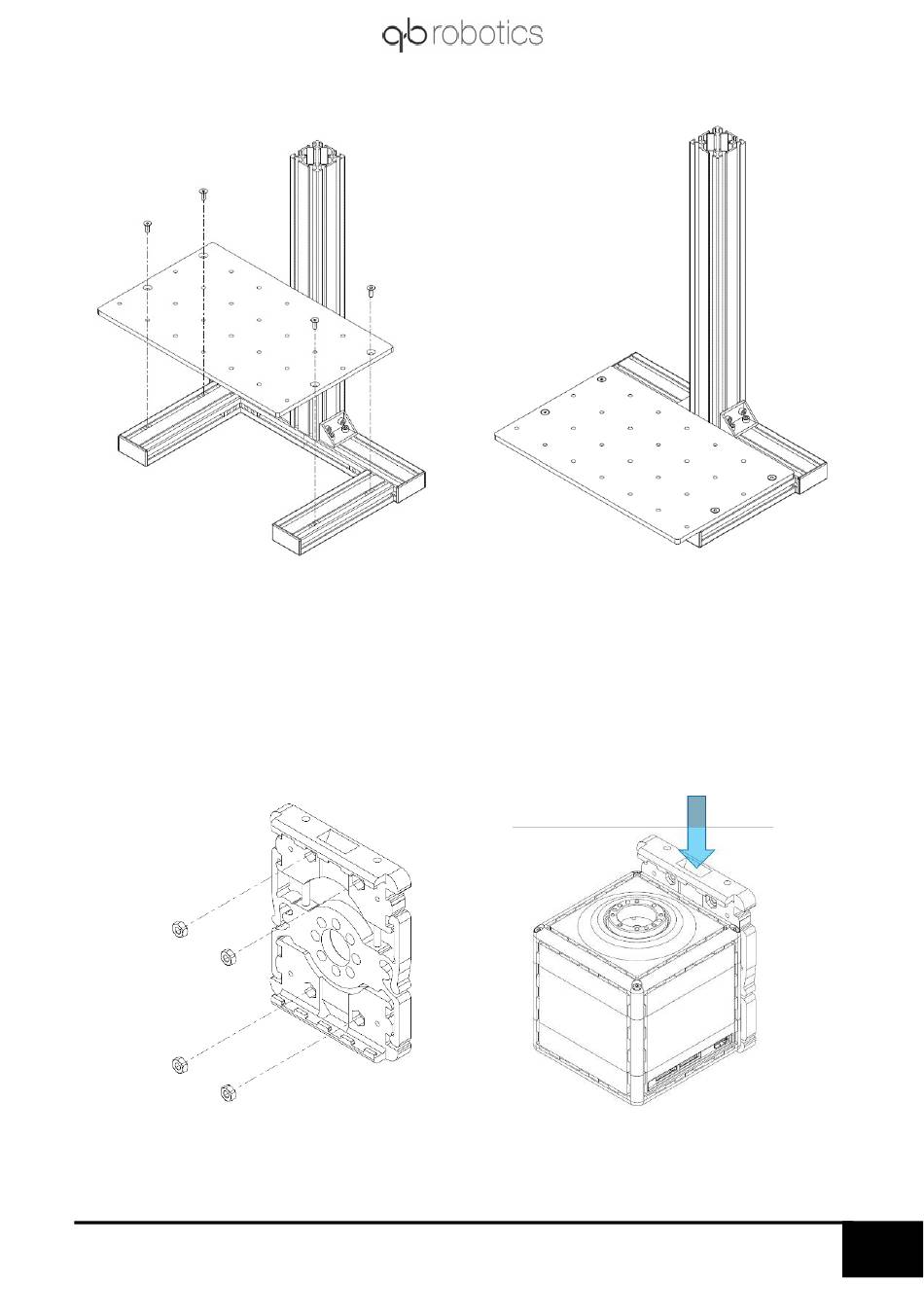

Assembly the Plexiglass plate by four screws 3012 (Figure 5-15).
Figure 5-15 Assembly of the Pexiglass plate.
5.3.2
Robot assembly
To connect your robot to the structure, use a Flat Flange (4.1): open the flange, insert four 3008
nuts and connect the flange at the first qbmove Advanced of your robot.
Figure 5-16 Connection between qbmove Advanced and the Flat Flange.
50
28 aprile 2021
