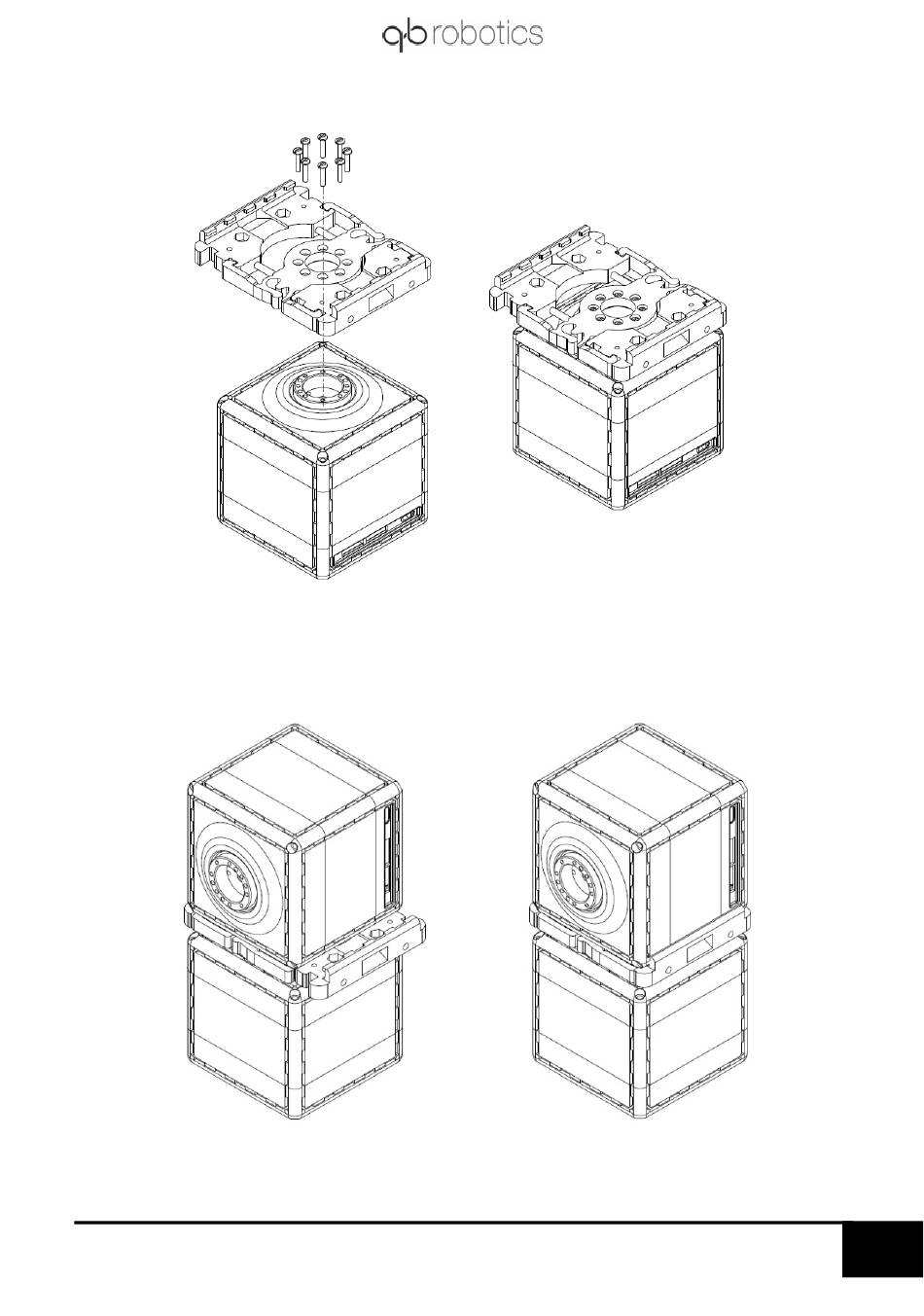

Assemble the Flat flange on the output pulley of the qbmove, by the eight screws 3003, as shown
in Figure 4-9.
Figure 4-9: Flat Flange assembly procedure on a qbmove
Now a second qbmove can be connected to the first one by snapping the flanges, as shown in
Figure 4-10.
Figure 4-10: Two qbMoves connected with a flat flange
22
28 aprile 2021
