Required components:

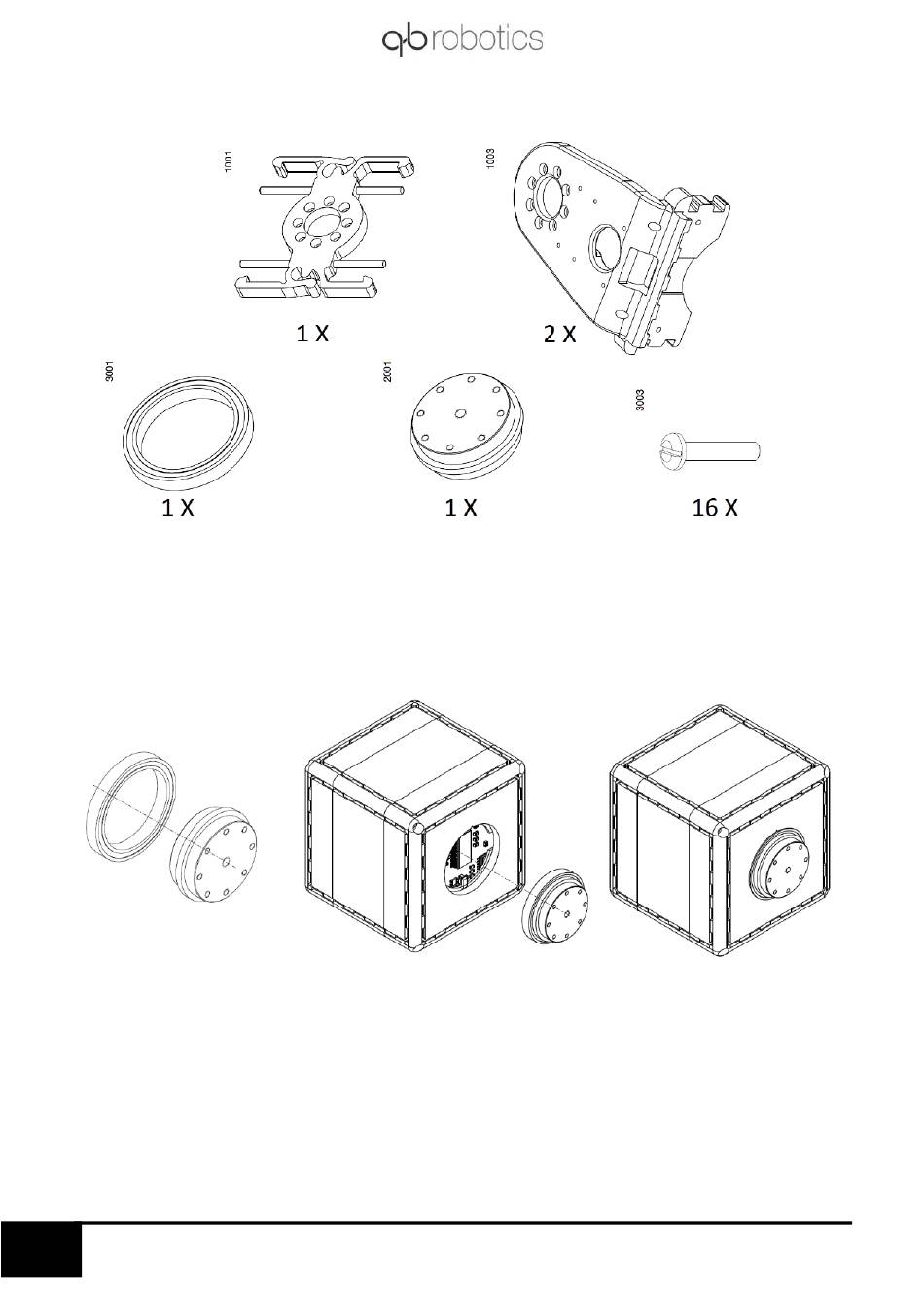

Figure 4-19: Required components for a C-Flange
4.3.1
Assembly sequence
Preparation of a C Flange
Figure 4-20: Free pulley on qbmove assembly procedure
Assemble the 3001 bearing on the free 2001 pulley, on the opposite side of the eight treaded
holes. Assemble the obtained component with the qbmove, to reveal the spot, remove the
plastic bottom cap with a little flathead screwdriver.
