Move the qbmove ① in the desired "zero" position and then fix it with the eight 3003 screws.
NOTE: with the two flanges screwed to the qbmove ① it is still possible to open the flange to
detach or change the orientation of the qbmove ②.
4.3.2
ERNI cable routing in the C Flange

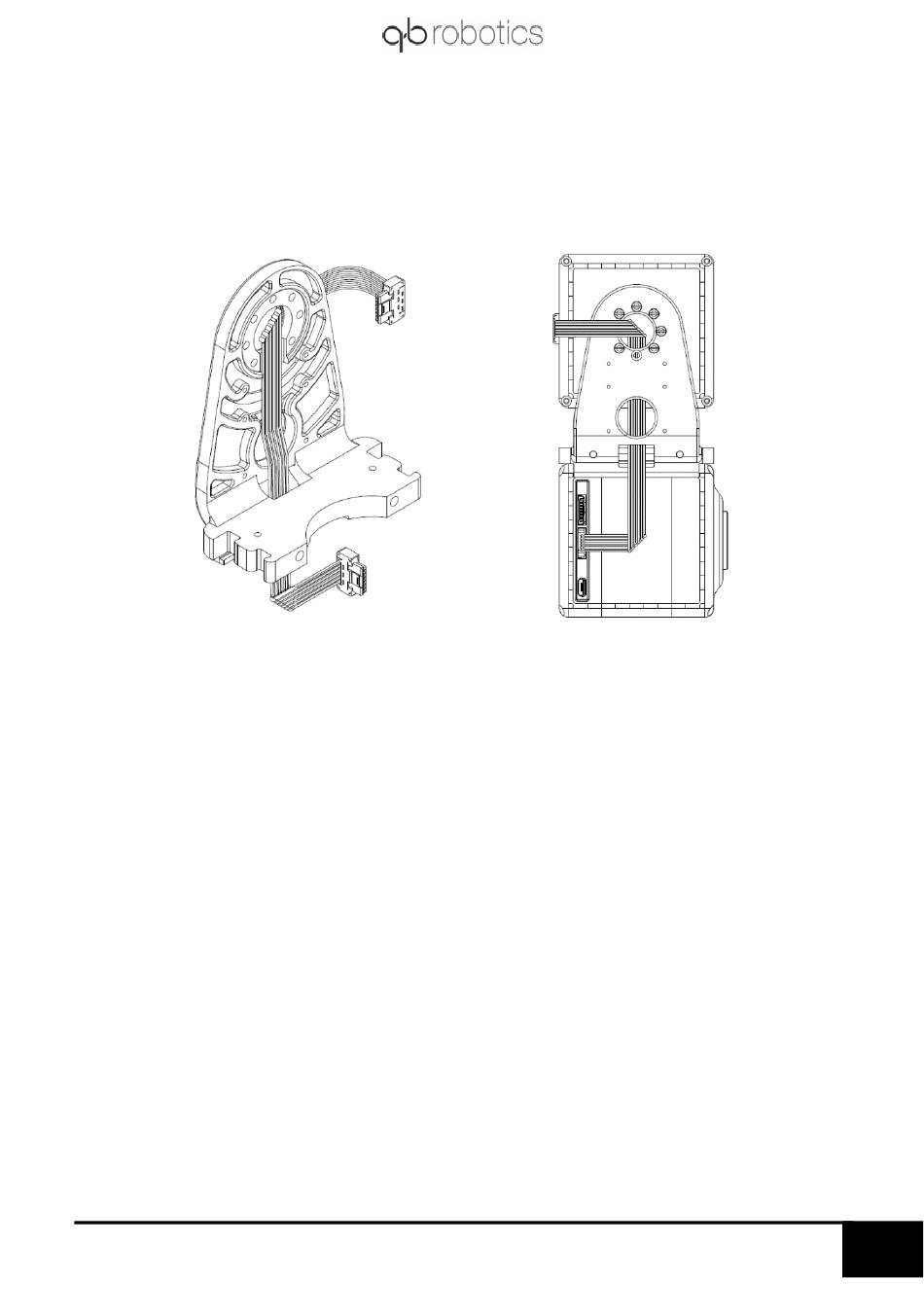

The ERNI cable can be routed inside the C Flange as shown in Figure 4-24.
Figure 4-24: ERNI cable routing inside the C-Flange
