What's in the box?

3.1
① x 4
⑤ x 1
⑨ x 2

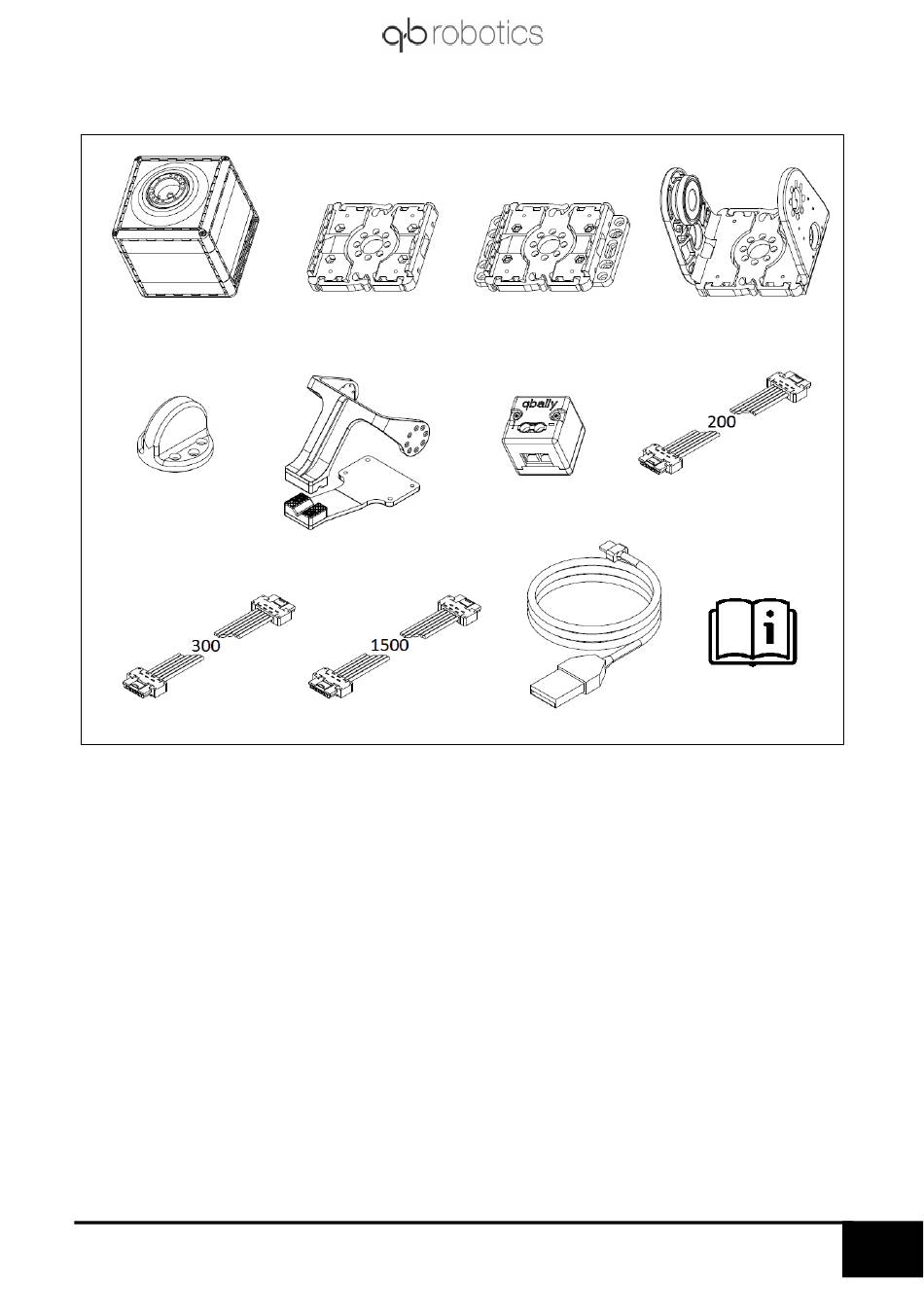

Figure 3-1 ① qbmove Advanced; ② Flat Flange; ③ Base Flange; ④ C-Flange; ⑤ Handle; ⑥ qbgripper;
⑦ qbally; ⑧ ERNI cable 200mm; ⑨ ERNI cable 300mm; ⑩ ERNI cable 1500mm; ⑪ USB cable; ⑫ User
Screws and nuts are provided with each kind of flange:
•
Flat Flange: n°8 screws M2x8 ISO1207; n°4 nuts M3 ISO4032 A2; n°4 screws M3x8
ISO4762;
•
Base Flange: n°8 screws M2x8 ISO1207; n°4 nuts M3 ISO4032 A2; n°3 screws M3x10
ISO10642;
•
C-Flange: n°16 screws M2x8 ISO1207;
•
Other components: n°8 screw M3x10 ISO4762; n°8 nuts M3 ISO4032 A2.
Make sure that the following items are included in the package. If there are any items missing,
contact the supplier.
② x 2
⑥ x 1
⑩ x 1
manual.
③ x 4
⑦ x 1
⑪ x 1
④ x 4
⑧ x 5
⑫ x 1
