Encoding of components for mechanical assembly
Assembly code
3001
3003
3005
3007
3008
19
28 aprile 2021

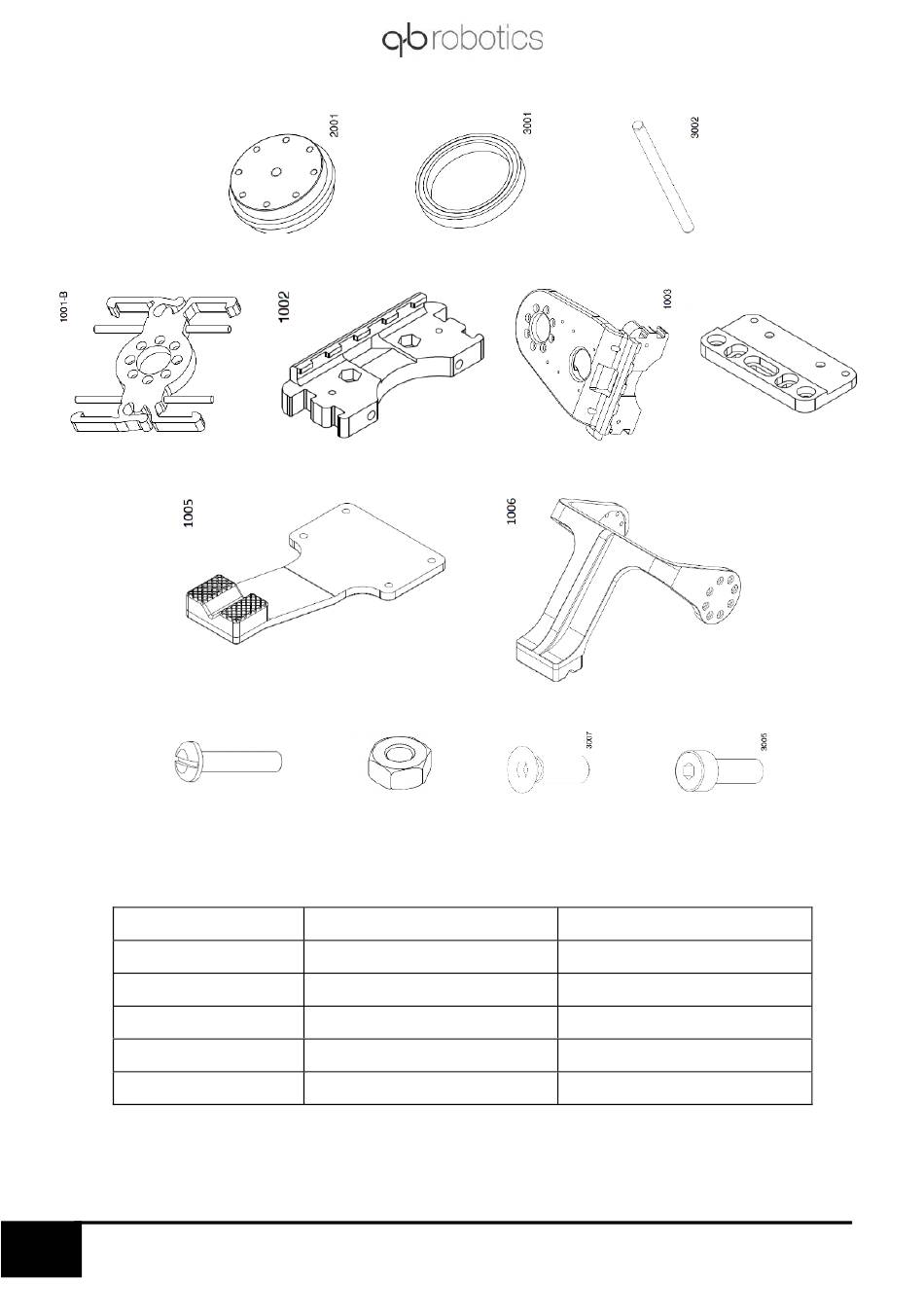

Figure 4-4:Parts from left to right - 2001, 3001, 3002
Figure 4-3: Parts from left to right - 1001, 1002, 1003 ,1004
Figure 4-2: Parts from left to right - 1005, 1006
Figure 4-1: Parts from left to right - 3003, 3005, 3007, 3008
Table 4-1: Unified components codes
Description
Bearing 25x32x4
Screw M2x8
Screw M3x8
Screw M3x10 SV
Nut M3
Unified code
MR 6705
ISO 1207 – UNI 6107
ISO 4762 – UNI 5931
ISO 10642
UNI 5588 – DIN 934 (PG)
