Signode Little David LD16AE 2.0 Operator's Manual page 97

4
17
D
18
17
18
C
B
9
(PNEUMATIC CARTRIDGE ONLY)
A
4
3
16
4
5
8
6
1
3
2
3
2
11
7
10
14
15
13
PART # CAD FILE
MAT'L
STD
PLOT DATE
ST. ST. DRAWN DATE
DO NOT SCALE PRINT
STAINLESS : NO FINISH
THIS DRAWING AND SUBJECT MATTER THEREON IS THE EXCLUSIVE PROPERTY OF
LOVESHAW-ITW AND IS TO BE TREATED BY YOU AS CONFIDENTIAL PRPRIETARY
INFORMATION. THIS DRAWING OR SUBJECT MATTER THEROF SHALL NOT BE
REPRODUCED OTHER THAN FOR YOUR OWN USE OR TO BE DISCLOSED TO OTHER
WITHOUT THE EXPRESSED WRITTEN CONSENT OF LOVESHAW-ITW AND WILL BE
RETURNED TO LOVESHAW-ITW UPON REQUEST.
2
REV DESCRIPTION
A RELEASED

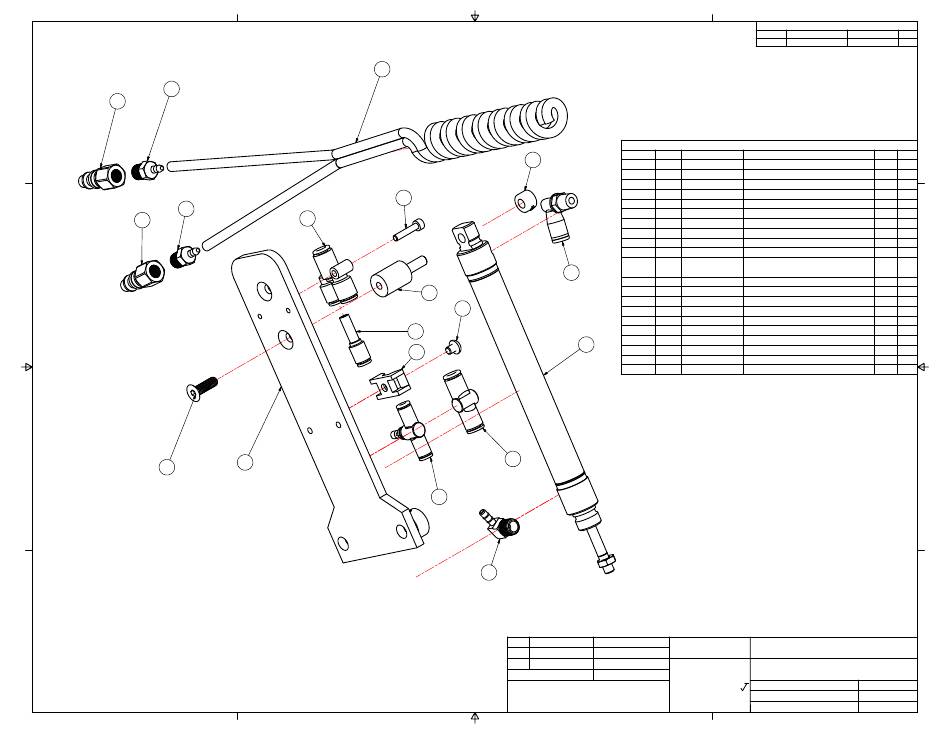

PARTS FOR CAC61NTNC 3" CARTRIDGE
Parts List
ITEM QTY PART NUMBER DESCRIPTION
1 1 CAC60-0112-5 CYLINDER MOUNT
2 1 N400-25 1/4" X 1/4 NPT FITTING
3 1 SC25 SET COLLAR, 1/4
4 1 FSHME020P10 SHCS M4 X 0.7 X 20 LG.
5 1 P4010-004 1/4" "Y" CONNECTOR
6 1 AH206 WIRE / HOSE CRADLE
7 1 FBHMF006P10 BUTTON HEAD, M5 x 6
8 1 N400-210 1/4" TO 5/32" REDUCER
9 1 FFHMG020P10 FHCS M6 x 20
10 1 N401-349B AIR CYLINDER, 3/4 x 4.5
10a 1 N401-349 AIR CYLINDER, 3/4 x 5 (OPTIONAL
PASS THRU CARTRIDGE)
11 1 CAC60-0113-3 CYLINDER STUD
12 1 FHJNSGP HEX JAM NUT 1/4-28
13 1 PSR636 BARB FITTING, 1/8 NPT X 1/4 TUBE
14 1 N400-230B QUICK EXHAUST
15 1 N400-242 IN-LINE FLOW CONTROL
16 1 N522 /11 COIL HOSE, MULTI BORE
17 2 H153 FITTING, 1/8 ID TUBE TO 1/8 NPT
18 2 N400-224 MALE QUICK DISC., 1/8 NPT
19 14" N622
5/32" DIA. TUBING (NOT SHOWN)
20 7" PSR700 1/4" DIA. TUBING (NOT SHOWN)
LOVESHAW
FRONT ROLLER ARM CYL ASSY.idw
TOLERANCES UNLESS
OTHERWISE NOTED:
RT. 296, SOUTH CANAAN, PA.
+ -
.X = .050
- TITLE
6/5/2012
+ 
+
INCH .XX = .015 - -
ANGLES 1/2
-
+
.XXX = .005
-
+
.X = 1.0mm -
MACH.
FRONT ROLLER ARM CYL ASSY
+ DWG NO
125
METRIC .XX = .3mm -
FINISH
+
.XXX = .1mm
-
MATERIAL
+ -
FRACTIONS 1/64
BRYCEF
DRAWN
1
REVISION HISTORY
DATE BY
6/5/2012 BJF
D
SS MI
SS
P-S
P-S
P-S
C
B
A
an ITW Company
SCALE
CHECKED
APPROVED
1
