Signode Little David LD16AE 2.0 Operator's Manual page 92

4
Parts List
ITEM QTY PART NUMBER DESCRIPTION
1 1 CAC60-0063-6 FRONT ROLLER ARM
2 1 SPH-1252 WAVE WASHER
3 1 CAC60-0177-4 TAPE GUIDE PLATE
4 1 CAC60-0065-5 LINK BAR
D
5 2 SPH-1277 5/16 BRONZE WASHER
6 1 BSG-1085 BUSHING 16mm
7 6 SPH-1276 SNAP RING, 8mm
8 4 BSG-1090 8mm FLANGE BUSHING
9 1 SPR-1044 SPRING, COMPRESSION
10 1 CAC60-0166-4 SLIDING BLOCK, DBL BEARING
11 1 CAC60-0002-4 ROLLER
12 2 SPH-1339 M8 WASHER
13 1 CAC60-0073-3 SMALL ROLLER
14 2 BSG-1098 BUSHING
15 1 FBHME020P10 M4 x 20 PAN HEAD SCREW
16 1 SPR-1055 EXTENSION SPRING
17 1 FNLNMEP M4 NYLOCK NUT
18 4 FBHME012P10 M4 x 12 BUTTON HEAD
19 1 FFHMG016P10 FHCS M6 X 1.0 X 16 LG.
20 1 FFWMFP FLAT WASHER M5
21 1 .SA60/A SHAFT ASSEMBLY
22 10 BRG-2015 10mm FLANGE BEARING
23 1 FBHME016P10 BUTTON HEAD M4-1.0 X 16
C
24 1 BSG-1124 10mm LINEAR BEARING
25 1 CAC60-0142-3 BUSHING RETAINER
26 1 SPH-1489 19mm EXTERNAL SNAP RING
27 1 .FPACAC60-SB FINGER PLATE ASSEMBLY
28 1 CAC60-0150-4 KNIFE GUARD LOCK
29 1
BSG-1136R1-3 BUSHING, REWORKED
30 1 CAC60-0174-4 SHAFT, PIVOT EXTENSION
31 1 FSSMF020B10 M5x0.8 20mm LG
32 1 CAC60-0176-4 SLIDING BLOCK SUPPORT, OIT
33 1 CAC60-0165A-3 SHAFT
34 1 CAC60-0159A-3 SHAFT SUPPPORT LOWER
35 7 FFHMF012P10 FHCS M5 X 0.8 X 12 LG.
36 1 CAC60-0160A-3 SHAFT SUPPORT FOR SPACER
37 1 CAC60-0161-3 SPACER
38 1 FFHMF025P10 FHCS M5 X 25 LG.
39 1 CAC60-0173-3 SHAFT, FRONT ARM SUPPORT
40 1 CAC60-0158A-3 SHAFT SUPPORT UPPPER
41 1 CAC60-0172-4 ROLLER, TAPE GUIDE PLATE
42 2 FFWMHP FLAT WASHER M8
B
A
(ONE INCH TAB ONLY)
4
3
SS MI
SS MI
SS MI
SS MI
SS
SS
SS
22
P-S
12
SS
18
P-S
P-S
P-S
SS
SS
25
P-S
SS
SS MI
28
SS
B-S
SS MI
18
SS
SS
P-S
SS
22
P-S
SS
SS
P-S
32
40
7
35
37
36
35
38
34
35
3
2
22
4
7
22
26
24
22
5
15
14
17
33
10
13
14
5
8
7
3
8
35
11
22
21
PART #
MAT'L
STD
ST. ST.
STAINLESS : NO FINISH
THIS DRAWING AND SUBJECT MATTER THEREON IS THE EXCLUSIVE PROPERTY OF
LOVESHAW AND IS TO BE TREATED BY YOU AS CONFIDENTIAL PRPRIETARY
INFORMATION. THIS DRAWING OR SUBJECT MATTER THEROF SHALL NOT BE
REPRODUCED OTHER THAN FOR YOUR OWN USE OR TO BE DISCLOSED TO OTHER
WITHOUT THE EXPRESSED WRITTEN CONSENT OF LOVESHAW AND WILL BE
RETURNED TO LOVESHAW UPON REQUEST.
2
39
6
8
9
20
7
35
23
27
8
22
ASSEMBLIES CAN BE PURCHASED
12
7
AS ASSEMBLY #'S
.FPACAC60-SB
.FPACAC60SS-SB
.FPACAC60-SBMI
.FPA60-SBSSMI
42
41
42
CAD FILE
TOLERANCES UNLESS
OTHERWISE NOTED:
2206 EASTON TPK., SOUTH CANAAN, PA.
PLOT DATE
+ -
.X = .050
- TITLE
2/4/2016
DRAWN DATE
+ 
+
INCH .XX = .015 - -
ANGLES 1/2
-
+
.XXX = .005
DO NOT SCALE PRINT -
+
.X = 1.0mm -
MACH.
+ DWG NO
125
METRIC .XX = .3mm -
FINISH
+
.XXX = .1mm
-
MATERIAL
+ -
FRACTIONS 1/64
DRAWN
1
D
29
1
35
19
C
31
2
30 16
B
LOVESHAW
A

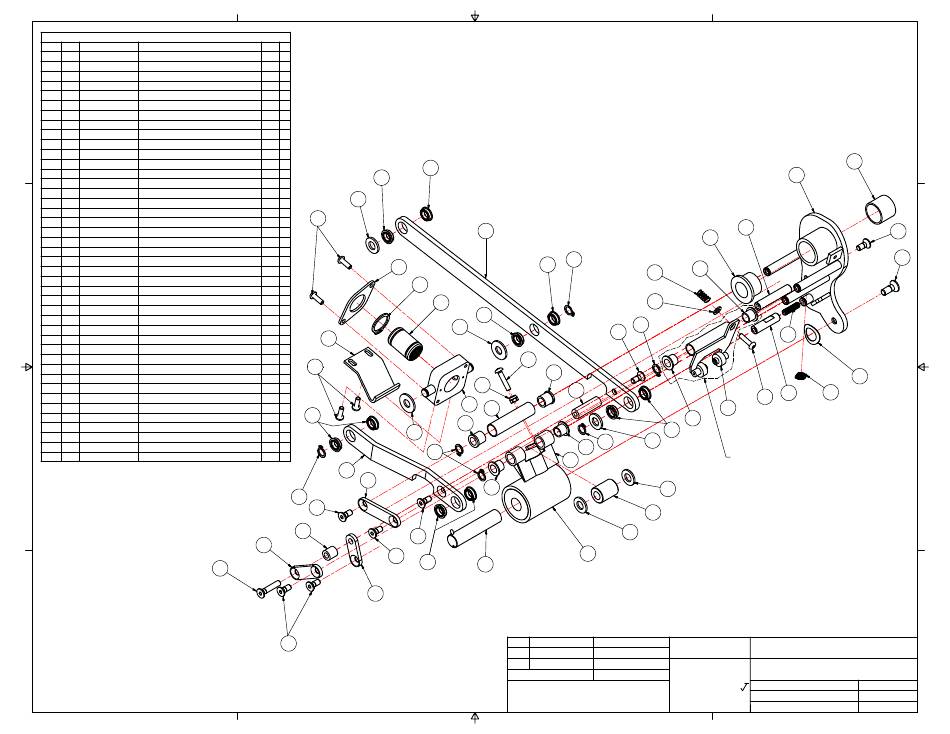

FRONT ROLLER ARM
SCALE
CHECKED
BRYCEF
APPROVED
1
