Signode Little David LD16AE 2.0 Operator's Manual page 86

8 7

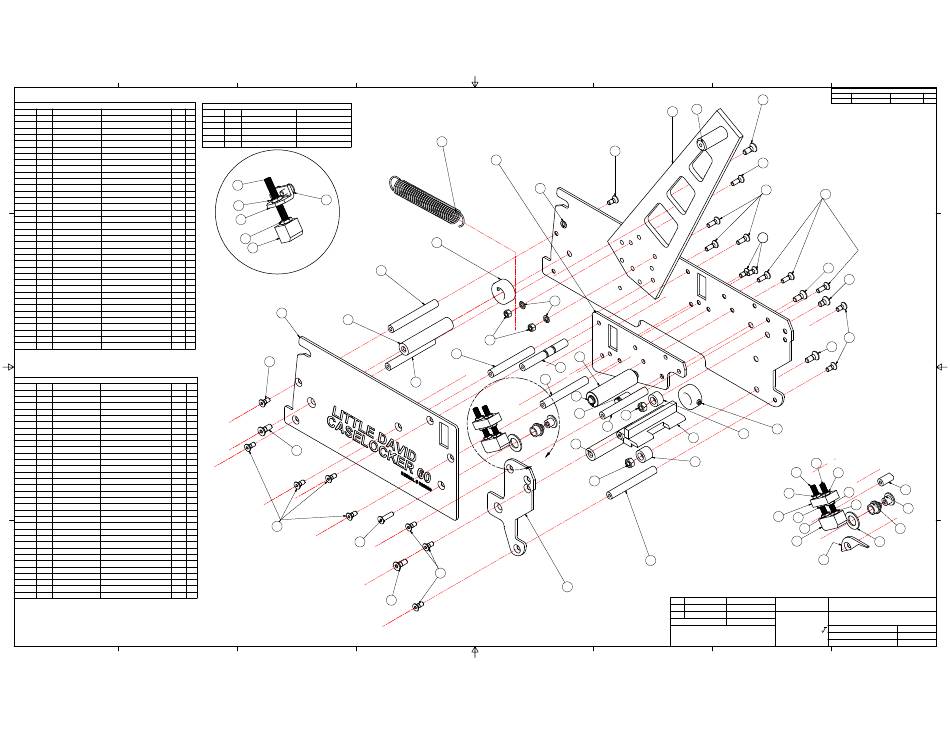

PARTS FOR .CAC60 2" CARTRIDGE
Parts List
ITEM QTY PART NUMBER DESCRIPTION SS MI
1 1 CAC60-0000-6 MAIN FRAME SS MI
MI
2 1 CAC60-0103-6 SIDE FRAME MEDIUM SS
3 4 CAC60-0040-3 TIE SHAFT SS
D 4 1 CAC60-0031-4 MILLSTAND SS
5 1 CAC60-0058-3 SHAFT MILLSTAND SS
6 1 CAC60-0060A-3 SPRING SHAFT SS
7 14 FFHMF012P10 FHCS M5 X 0.8 X 12 LG. P-S
8 5 FFHMG016P10 FHCS M6 X 1.0 X 16 LG. P-S
9 8 FFHMF016P10 FHCS M5 X 16 LG. P-S
10 2 FLWMFP LOCK WASHER M5 P-S
11 2 FHFNMFP HEX NUT M5 P-S
12 1 CAC60-0082-3 STOPPER FRONT ARM
13 1 CAC60-0082A-3 STOPPER FRONT ARM
14 1 CAC60-0097-4 SIDE FRAME, SMALL SS MI
15 2 CAC60-0096/2-3 SHAFT SS
16 2 CAC60-0040A-3 TIE SHAFT SS
17 1 CAC60-0107-4 SECONDARY FRAME SS MI
18 1 CAC60-0108-3 SPRING STUD SS
19 2 SC16M 16mm SET COLLAR SS
20 1 SPH-1457 DELRIN WASHER
21 1 BSG-1121-3 FLANGE BUSHING
22 1 CAC60-0133-3 BUSHING STUD SS
23 2 FHFNMGP HEX NUT M6 P-S
24 1 SPH-1497 FHCS M6x12 LG. SS
25 1 SPR-1069 EXTENSION SPRING
26 1 FFHMF020P10 FHCS M5 X 20 P-S
27 1 SPH-1498 FHCS M6 X 1.0 X 16 LG. SS
28 2 SPH-1495 M6x50 SET SCREW
C
29 6 FHJNMGP M6 HEX JAM NUT
30 1
CAC60-0151-3 HD BUMPER BRACKET
31 1 CAC60-0145-4 ROLLER
32 1 SPH-1268 RETAINING RING 10mm
33 1 CAC60-0056-4 TAPE TENSION ARM SHAFT
34 1 FNLNMFS M5 NYLON LOCKING NUT S.S.
35 1 SPH-1518 M5 FENDER WASHER
36 1 CAC60-0088-3 TIE BLOCK TOP LAOD BRKT.
37 1 CAC60-0152-3 HD BUMPER
PARTS FOR .CAC61 3" CARTRIDGE
Parts List
ITEM QTY PART NUMBER DESCRIPTION SS MI
1 1 CAC60-0000-6 MAIN FRAME SS MI
2 1 CAC60-0103-6 SIDE FRAME MEDIUM SS MI
3 4 CAC60-0040/3-3 TIE SHAFT, 3" SS
4 1 CAC60-0031-4 MILLSTAND SS
5 1 CAC60-0058/3-3 SHAFT MILLSTAND 3" SS
6 1
CAC60-0060/3A-4 SPRING SHAFT 3" SS
7 14 FFHMF012P10 FHCS M5 X 0.8 X 12 LG. P-S
8 4 FFHMG016P10 FHCS M6 X 1.0 X 16 LG. P-S
9 7 FFHMF016P10 FHCS M5 X 16 LG. P-S
B
10 3 FLWMFP LOCK WASHER M5 P-S
11 3 FHFNMFP HEX NUT M5 P-S
12 1 CAC60-0082-3 STOPPER FRONT ARM
13 1 CAC60-0082A-3 STOPPER FRONT ARM
14 1 CAC60-0097-4 SIDE FRAME, SMALL SS MI
15 2 CAC60-0096-3 SHAFT SS
16 2 CAC60-0040A/3-3 TIE SHAFT, 3" SS
17 1 CAC60-0107-4 SECONDARY FRAME SS MI
18 1 CAC60-0108-3 SPRING STUD SS
19 2 SC16M 16mm SET COLLAR SS
20 1 SPH-1457 DELRIN WASHER
21 1 BSG-1121-3 FLANGE BUSHING
22 1 CAC60-0133-3 BUSHING STUD SS
23 2 FHFNMGP HEX NUT M6 P-S
24 1 SPH-1497 FHCS M6x12 LG. SS
25 1 SPR-1072 EXTENSION SPRING
N/S 1 SPH-1495 M6x50 SET SCREW SS
N/S 2 FHJNMGP M6 HEX JAM NUT P-S
N/S 1 FFHMF020P10 FHCS M5 X 20 P-S
N/S 1 SPH-1498 FHCS M6 X 1.0 X 16 LG. SS
N/S 1 CAC60-0154-4 OPTIONAL TOP LOAD BRKT. SS
N/S 1 BRG-1016 CAM FOLLOWER BEARING SS
N/S 1 FFHMG030P10 FHCS M6 X 30 P-S
N/S 1 CAC60-0163-4 MAIN PIVOT SHAFT SS
A
8 7
6
PARTS FOR ONE INCH TAB ONLY
Parts List
ITEM QTY PART NUMBER DESCRIPTION
38 1 CAC60-0203 BUMPER, COPPER
39 1 CAC60-0071-3 STOP MOUNT
40 2 FHJNMGP M6 HEX JAM NUT
41 2 FFHMF012P10 FHCS M5 X 0.8 X 12 LG.
42 1 SPH-1495 M6x50 SET SCREW
42
41
40
39
40
38
3
BUMPER ASSEMBLY FOR
ONE INCH TAB CARTRIDGE
2
15
7
8
7
26
6
5 4
25
17
4
19
10
11
5
6
16
3
A
7
14
8
5 4
3
4
4
7
31
33
18
23
16
13
36
15
12
23
3
BASE ASSY HS 2.idw
MAT'L PART # CAD FILE
STD PLOT DATE
ST. ST. DRAWN DATE 7/27/2011
DO NOT SCALE PRINT
STAINLESS : NO FINISH
THIS DRAWING AND SUBJECT MATTER THEREON IS THE EXCLUSIVE PROPERTY OF
LOVESHAW-ITW AND IS TO BE TREATED BY YOU AS CONFIDENTIAL PRPRIETARY
INFORMATION. THIS DRAWING OR SUBJECT MATTER THEROF SHALL NOT BE
REPRODUCED OTHER THAN FOR YOUR OWN USE OR TO BE DISCLOSED TO OTHER
WITHOUT THE EXPRESSED WRITTEN CONSENT OF LOVESHAW-ITW AND WILL BE
RETURNED TO LOVESHAW-ITW UPON REQUEST.
3
2 1
REVISION HISTORY
REV DESCRIPTION DATE BY
8
A RELEASED 7/27/2011 BJF
D
9
9
9
7 7
8
24
C
7
27
19
B
28
28
29
16
29
29
29
22
30
29
29
21
37
20
DETAIL A
14
SCALE .75
A
LOVESHAW
TOLERANCES UNLESS an ITW Company
OTHERWISE NOTED:
RT. 296, SOUTH CANAAN, PA.
+ -
.X = .050
- TITLE
+ + 
INCH .XX = .015 - - MAIN ASSEMBLY
ANGLES 1/2 -
+
.XXX = .005 -
.X = 1.0mm +
-
MACH. MAIN ASSY HS 2.0
+ DWG NO SCALE
METRIC .XX = .3mm 125
- FINISH
+
.XXX = .1mm -
MATERIAL CHECKED
+ -
FRACTIONS 1/64
BRYCEF
DRAWN APPROVED
2 1
