Signode D-58 Manual

GENERAL SAFETY INSTRUCTIONS

READ THESE INSTRUCTIONS CAREFULLY. FAILURE TO
FOLLOW THESE INSTRUCTIONS CAN RESULT IN SEVERE
PERSONAL INJURY.
GENERAL CONSIDERATIONS
1. EYE INJURY HAZARD.
Failure to wear safety glasses with side
shields can result in severe eye injury or
blindness. Always wear safety glasses
with side shields which conform to ANSI
Standard Z87.1 or EN 166.
2. FALL HAZARD.
Maintaining improper footing and/or balance when
operating the tool can cause you to fall. Do not use the
tool when you are in an awkward position.
3. CUT HAZARD
Always wear protective gloves when
handling strap or sharp parts.
4. TRAINING.
This tool must not be used by persons not properly
trained in its use. Be certain that you receive proper
training from your employer. If you have any questions
contact your Signode Representative.
5. TOOL CARE.
Take good care of the tool. Inspect and clean it daily,
lubricate it weekly. Replace any worn or broken parts.
6. WORK AREA
Keep work areas uncluttered and well lit.
7. TENSIONING STRAP.
When tensioning strap use proper tensioner for specific
strap sizes. Read the tensioner's operation and safety
manual.
8. CUTTING TENSIONED STRAP
Using claw hammers, crowbars, chisels, axes or similar
tools will cause tensioned strap to fly apart with
hazardous force. Use only cutters designed for cutting
strap. Read the instructions in the cutters manual for
proper procedure in cutting strap. Before using any
Signode product read its operation and safety manual.
Several combinations of strap, seals and tools can be used
with this sealer. Use the correct Signode products for your
application. If you need help contact your Signode
Representative.
IMPORTANT - DO NOT DESTROY THIS MANUAL. It is the customer's responsibility to have all operators
and service personnel read and understand this manual. Contact your local Signode representative for
additional copies of this manual.
© Copyright 2000, Signode 437137 Rev. 4/2000

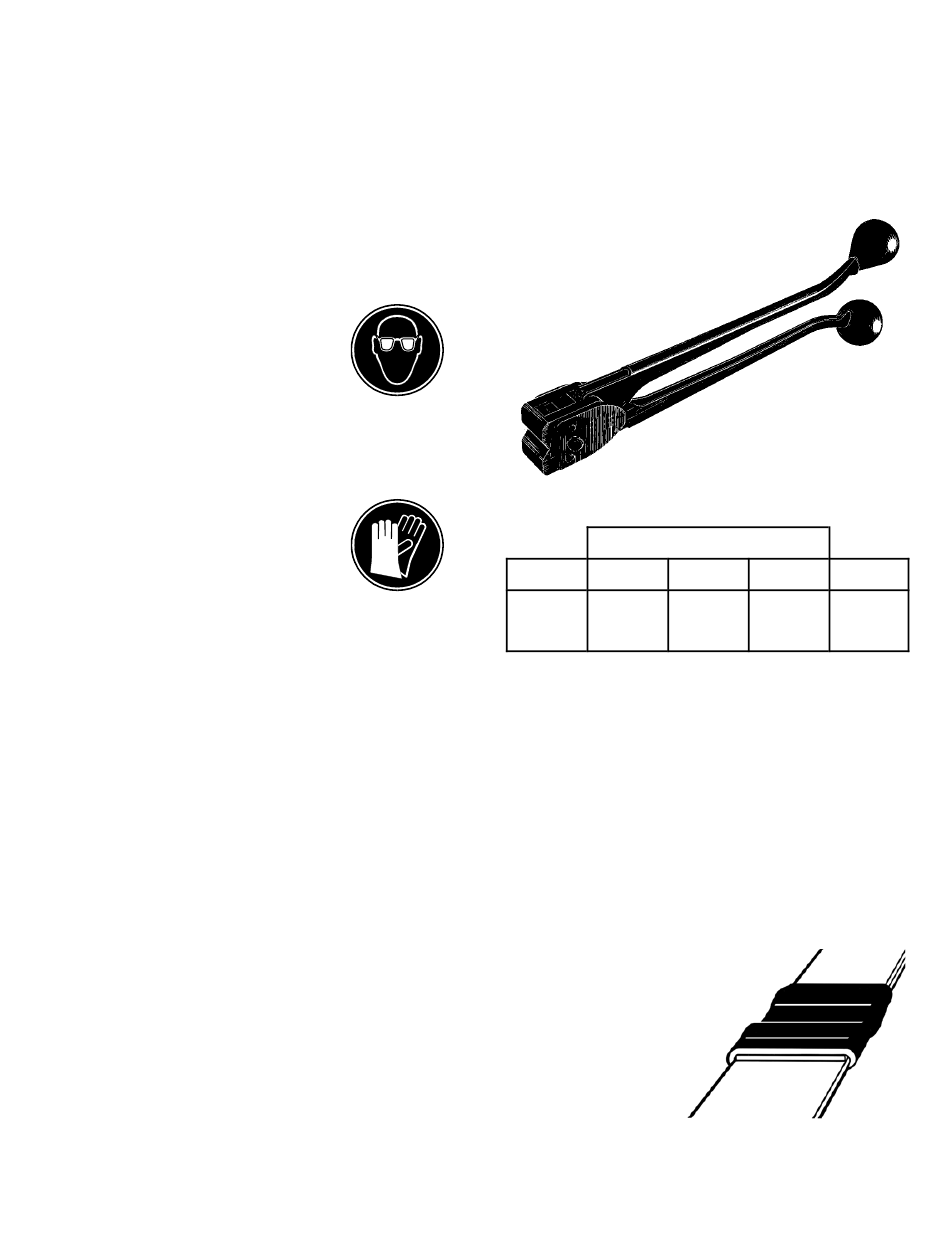

D-58 MANUAL SEALER
D-58 (423800)

TOOL SPECIFICATIONS

STRAP
MODEL TYPE
2030
D-58 2040
2038B

SAFETY PROCEDURES FOR TOOL OPERATION

1. Before using this sealer, read all the instructions in this
Operation, Parts and Safety Manual.
2. Always lift and carry the tool by the tool handle knob.
Lifting the tool at any other point may expose the hand
to a "pinch point".
3. Make sure the sealer jaws are placed directly on the
seal.
4. While sealing, position yourself to one side of the
tensioned strap.
5. This tool is designed for use with grit seals and plastic
strap only. A properly crimped seal will
appear as shown in the illustration. If
the notched seal does not appear
as shown, inspect the tool for
worn and/or damaged parts.
Replace tool parts as
needed. Do not ship any
loads secured with
improperly crimped
seals. Seal must be
properly crimped.
WIDTH GAUGE SEALS
.030"
5/8" TO 58DY
.040"
