Signode Little David LD16AE 2.0 Operator's Manual page 96

4
D
5
C
11
6
10
B
3
(PNEUMATIC CARTRDIGE ONLY)
A
4
3
1
18
18
2
14
4
3
12
9
5
17
19
12
7
13
PART #
MAT'L
STD
ST. ST.
STAINLESS : NO FINISH
THIS DRAWING AND SUBJECT MATTER THEREON IS THE EXCLUSIVE PROPERTY OF
LOVESHAW-ITW AND IS TO BE TREATED BY YOU AS CONFIDENTIAL PRPRIETARY
INFORMATION. THIS DRAWING OR SUBJECT MATTER THEROF SHALL NOT BE
REPRODUCED OTHER THAN FOR YOUR OWN USE OR TO BE DISCLOSED TO OTHER
WITHOUT THE EXPRESSED WRITTEN CONSENT OF LOVESHAW-ITW AND WILL BE
RETURNED TO LOVESHAW-ITW UPON REQUEST.
2
REV
A

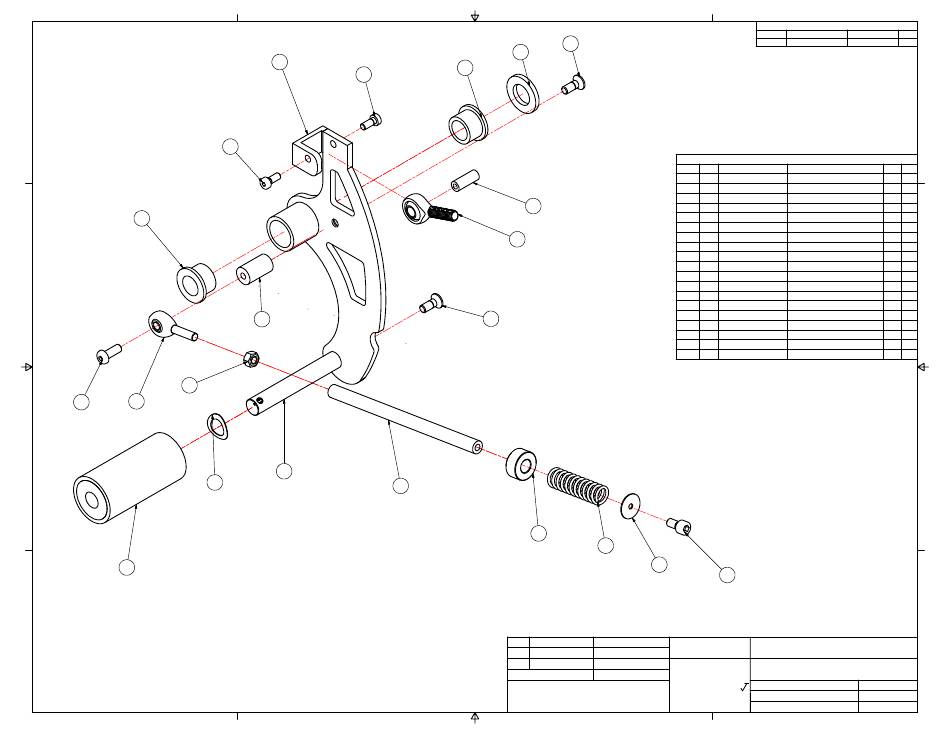

PARTS FOR CAC61NTNC 3" CARTRIDGE
ITEM QTY PART NUMBER
1 1 CAC60-0155-5
2 1 CAC60-0018-3
3 1 CAC60-0002/3-4
4 1 SPH-1252
5 2 BSG-1085
6 1 SPH-1267
7 1 CAC60-0010-4
8 1
SPR-1036
9 1 CAC60-0034-3
10 1 FBHMF016P10
11 1 FHFNMGP
12 2 FFHMG016P10
13 1 SPH-1338
14 1 .SA61A
15 1 FSHMG012P10
16 1 SPH-1496
17 1 CAC60-0156-3
18 2 FSHMF012P10
19 1 SPH-1543R
8
16
15
LOVESHAW
RRAA-HD.idw
CAD FILE
TOLERANCES UNLESS
OTHERWISE NOTED:
PLOT DATE
+ -
.X = .050
- TITLE
6/5/2012
DRAWN DATE
+ 
+
INCH .XX = .015 - -
ANGLES 1/2
-
+
.XXX = .005
DO NOT SCALE PRINT -
+
.X = 1.0mm -
MACH.
+ DWG NO
= .3mm 125
METRIC .XX -
FINISH
+
.XXX = .1mm
-
MATERIAL
+ -
FRACTIONS 1/64
DRAWN
2
1
REVISION HISTORY
DESCRIPTION DATE BY
RELEASED 6/5/2012 BJF
D
Parts List
DESCRIPTION SS MI
REAR ROLLER ARM SS MI
STANDOFF SS
ROLLER
WAVE WASHER
BUSHING 16mm SS
ROD END, M6 SS
SLIDING ROD
COMPRESSION SPRING SS
SPACER
BHCS M6 X 16 P-S
C
HEX NUT M6 P-S
FHCS M6 X 1.0 X 16 LG. P-S
SHAFT COLLAR SS
SHAFT ASSEMBLY, 3" SS
SHCS M6 X 1.0 X 12 LG. P-S
M6 FLAT WASHER SS
BEARING HUB
SHCS M5 X 0.8 X 12 LG. P-S
ROD END, M8 SS
B
A
an ITW Company
RT. 296, SOUTH CANAAN, PA.
REAR ROLLER ARM ASSY
RRAA-HD
