Signode Little David LD16AE 2.0 Operator's Manual page 102

4
2
13
D
1
C
5
13
12
B
A
4
3
15
12
14
17
14
15
3
2
9
10
7
1
11
TCA2 2.0.2.idw
PART # CAD FILE
MAT'L
STD
PLOT DATE
2/25/2016
ST. ST. DRAWN DATE
DO NOT SCALE PRINT
STAINLESS : NO FINISH
THIS DRAWING AND SUBJECT MATTER THEREON IS THE EXCLUSIVE PROPERTY OF
LOVESHAW AND IS TO BE TREATED BY YOU AS CONFIDENTIAL PRPRIETARY
INFORMATION. THIS DRAWING OR SUBJECT MATTER THEROF SHALL NOT BE
REPRODUCED OTHER THAN FOR YOUR OWN USE OR TO BE DISCLOSED TO OTHER
WITHOUT THE EXPRESSED WRITTEN CONSENT OF LOVESHAW AND WILL BE
RETURNED TO LOVESHAW UPON REQUEST.
2

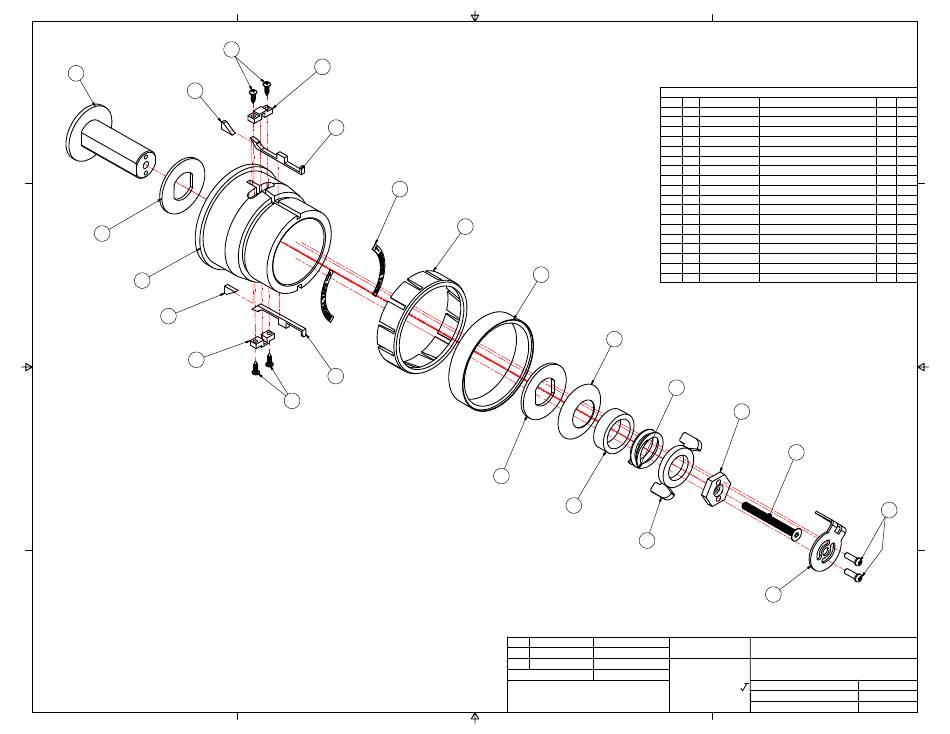

PARTS FOR .CAC60 2" CARTRIDGE
Parts List
ITEM QTY PART NUMBER DESCRIPTION
1 2 PSC28-3 BRAKE WASHER
2 1 CAC50-096A-4 SHAFT, TAPE CORE THREADED
3 1 PSC142-3 TAPE CORE NUT
4 1 CAC50-095-3 HEX LOCK NUT
5 1 CAC60-0044-5 TAPE CORE 2"
6 1 PSC33B-3 SPRING COMP.
7 1 PSC33 SPRING DISC
8 2 SPH-1221 PAN HD. SCREW M4x12
9 1 CAC60-0045-4 COLLAR, TAPE CORE
10 1 CAC60-0046-3 TAPE CORE NUT
11 1 CAC60-0061-3 SPRING SLEEVE
12 2 CAC60-0180-3 KEY STOP
13 2 CAC60-0181-3 KEY RAMP
14 2 CAC60-0179-3 ROLL RETENSION KEY
15 4 SPH-1659 PAN HEAD SCREW #4 x 3/8
16 1 CAC60-0178-4 TENSION KNOB RETAINER
17 1 SL-0059 TAPE CORE LABEL
18 1 FFHMF055B10 FHCS M5 x 55mm LG
6
4
18
3
16
LOVESHAW
TOLERANCES UNLESS
OTHERWISE NOTED:
2206 EASTON TPK., SOUTH CANAAN, PA.
+ -
.X = .050
- TITLE
+ 
+
INCH .XX = .015 - - TAPE CORE ASSEMBLY
ANGLES 1/2
-
+
.XXX = .005
-
+
.X = 1.0mm -
MACH.
TCA2 2.0
+ DWG NO
= .3mm 125
METRIC .XX -
FINISH
+
.XXX = .1mm
-
MATERIAL
+ -
FRACTIONS 1/64
BRYCEF
DRAWN
1
D
SS MI
SS
SS
SS
SS
SS
SS
SS
SS
SS
C
B
8
A
SCALE
CHECKED
APPROVED
1
