Signode Little David LD16AE 2.0 Operator's Manual page 94

4
D
9
10
C
4
B
2
A
4
3
5
8
3
(STANDARD CARTRIDGE ONLY)
3
2
6
4
1
7
PART # CAD FILE
MAT'L
STD
PLOT DATE
ST. ST. DRAWN DATE
DO NOT SCALE PRINT
STAINLESS : NO FINISH
THIS DRAWING AND SUBJECT MATTER THEREON IS THE EXCLUSIVE PROPERTY OF
LOVESHAW-ITW AND IS TO BE TREATED BY YOU AS CONFIDENTIAL PRPRIETARY
INFORMATION. THIS DRAWING OR SUBJECT MATTER THEROF SHALL NOT BE
REPRODUCED OTHER THAN FOR YOUR OWN USE OR TO BE DISCLOSED TO OTHER
WITHOUT THE EXPRESSED WRITTEN CONSENT OF LOVESHAW-ITW AND WILL BE
RETURNED TO LOVESHAW-ITW UPON REQUEST.
2
REV DESCRIPTION
A RELEASED

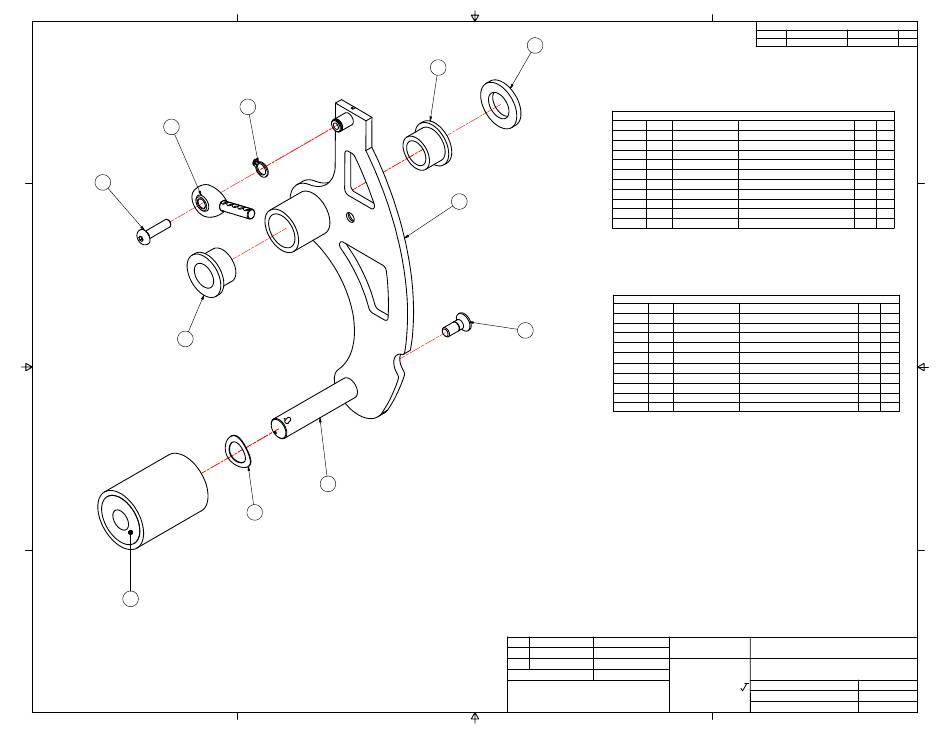

PARTS FOR CAC60/LS 2" CARTRIDGE
Parts List
ITEM QTY PART NUMBER DESCRIPTION
1 1 CAC60-0126-5 REAR ROLLER ARM
2 1 CAC60-0002-4 ROLLER
3 1 SPH-1252 WAVE WASHER
4 2 BSG-1085 BUSHING 16mm
5 1 SPH-1276 RETAINING RING 8mm
6 1 CAC60-0034-3 SPACER
7
1 FFHMG016P10 FHCS M6 X 1.0 X 16 LG.
8 1 .SA60/A SHAFT ASSEMBLY
9 1 SPH-1267R ROD END, M6
10 1 FBHMF020P10 BUTT. HD. CAP SCREW M5 X 20
PARTS FOR CAC61/LS 3" CARTRIDGE
Parts List
ITEM QTY PART NUMBER DESCRIPTION
1 1 CAC60-0126-5 REAR ROLLER ARM
2 1 CAC60-0002/3-4 ROLLER
3 1 SPH-1252 WAVE WASHER
4 2 BSG-1085 BUSHING 16mm
5 1 SPH-1276 RETAINING RING 8mm
6 1 CAC60-0034-3 SPACER
7 1 FFHMG016P10 FHCS M6 X 1.0 X 16LG
8 1 .SA61/A SHAFT ASSEMBLY
9 1 SPH-1267R ROD END, M6
10 1 FBHMF020P10 BUTT. HD. CAP SCREW M5 X 20
LOVESHAW
TOLERANCES UNLESS
OTHERWISE NOTED:
RT. 296, SOUTH CANAAN, PA.
+ -
.X = .050
- TITLE
1/2/2012
+ 
+
INCH .XX = .015 - - REAR ROLLER ARM
ANGLES 1/2
-
+
.XXX = .005
-
+
.X = 1.0mm -
MACH.
+ DWG NO
= .3mm 125
METRIC .XX -
FINISH
+
.XXX = .1mm
-
MATERIAL
+ -
FRACTIONS 1/64
BRYCEF
DRAWN
1
REVISION HISTORY
DATE BY
1/2/2012 BJF
D
SS MI
SS MI
SS
SS
P-S
SS
SS
P-S
C
SS MI
SS MI
SS
SS
P-S
SS
SS
P-S
B
A
an ITW Company
SCALE
CHECKED
APPROVED
1
