Summary of Contents for Signode RCNS2-34

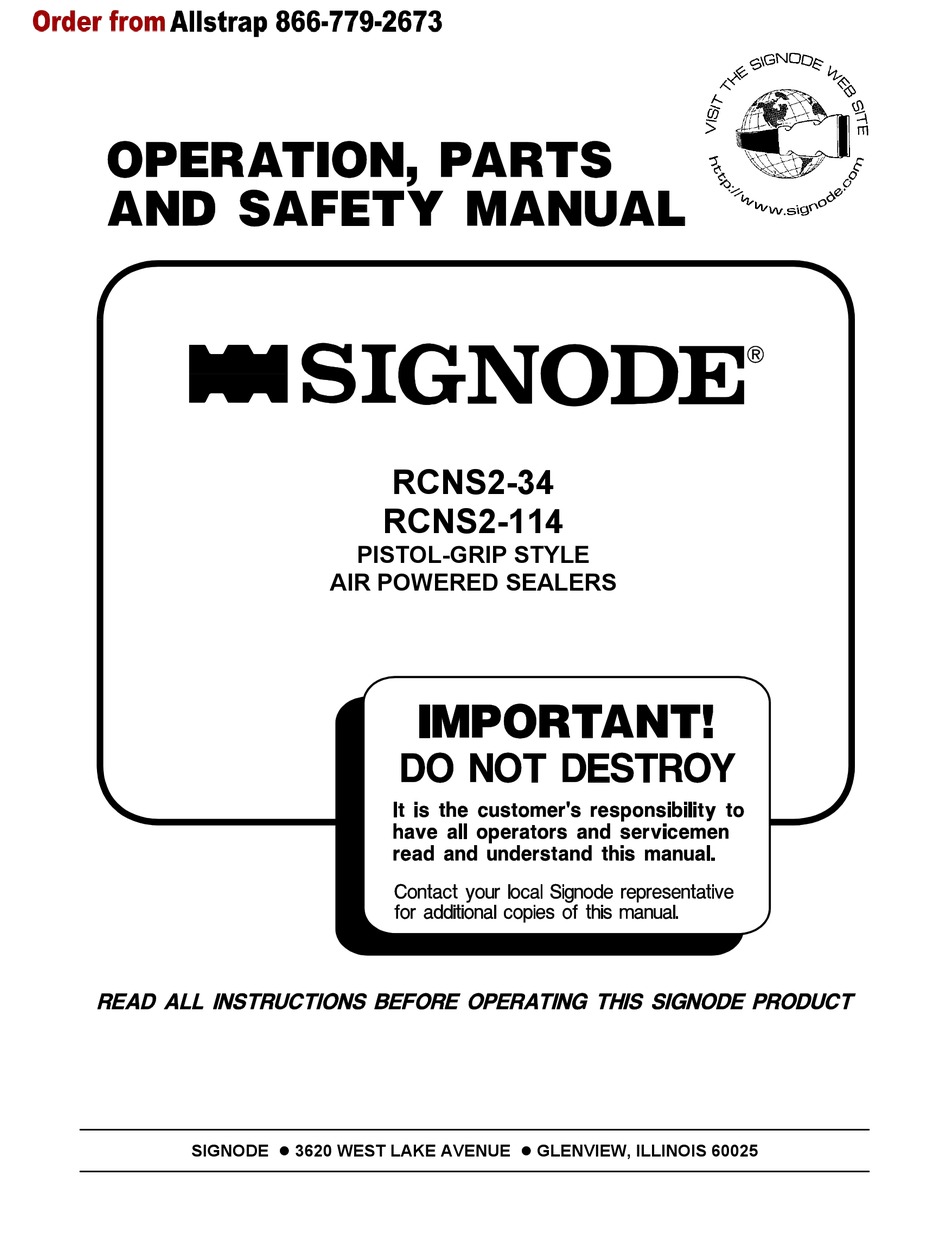

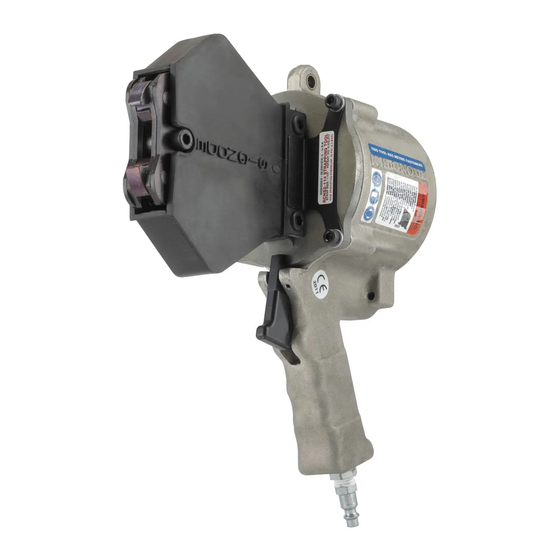

- Page 1 RCNS2-34 RCNS2-114 PISTOL-GRIP STYLE AIR POWERED SEALERS SIGNODE 3620 WEST LAKE AVENUE GLENVIEW, ILLINOIS 60025...
- Page 2 Signode products for your application. 2. TRAINING. This tool must not be used by persons not properly trained in its use. Be certain that you receive proper training from your employer. If you have any questions contact your Signode Representative. 3. EYE INJURY HAZARD.
- Page 3 Use the correct Signode products for your application. If you need help contact your Signode Representative. Signode tools and machines are designed and warranted to work together with Signode strapping and seals. Use of non-Signode strap, seals and/or manufactured or specified replacement parts may result in strap breakage or joint separation while applying strapping to a load or during normal shipping and handling.
- Page 4 TABLE OF CONTENTS Safety Information Signode tools and machines are designed Specifications and warranted to work together with Signode strapping and seals. Use of non- Pneumatic Information Signode strap and seals and/or manufactured or specified replacement Tool Installation parts may result in strap breakage or joint...
- Page 5 MAJOR COMPONENTS MOUNTING PLATE BOOT BOOT CLAMP JAWS NAMEPLATE CYLINDER VALVE PLUG TRIGGER HANDLE...
- Page 6 A filter-regulator-lubricator unit (Signode Part No. 008559) must be installed as close to the air tool as possible, preferably within 10 feet. It should be placed in a convenient location where it can easily be drained, adjusted, and filled with oil.
- Page 7 The remaining moisture is removed at the water leg in the piping system or in the filter (Part No. 008559). NOTE: Additional information is available in the Signode publication, "Air Supply Manual" (Part No. 186038). If you have any questions, contact your local Signode Representative.
- Page 8 An air line dryer adjacent to the compressor. b. Use lubricant recommended by Signode. Signode has tested the use of anti-freezes, none work well in air tools; the tool will gum up when anti-freezes are introduced and will not function properly.
- Page 9 Operation, Parts ans Safety Manual. A properly formed double reverse notch joint will appear as shown in the illustration. More than one seal may be required for your application. Always use the correct number of seals recommended by your Signode Sales Representative.
- Page 10 SEALER JAW ROTATION Disconnect the pneumatic connection to the tool when performing jaw rotation procedure. Failure to do so could result in serious personal injury. The cylinder and mounting plate can be rotated to allow the operator to hold the tool in the normal vertical position while sealing either horizontal or vertical strap.
- Page 11 TROUBLESHOOTING The following items are the most common tool symptoms if problems should occur. For symptoms or remedies not shown, contact your Signode service representative for additional information and details. The following tool symptoms are shown in this manual: #1 SYMPTOM: Tool leaking air (Trigger in OFF position & tool at rest).
- Page 12 PARTS LIST, CYLINDER ASSEMBLY QTY. PART NO. DESCRIPTION 424137 Mounting plate 424139 Cylinder 008672 Bushing 286373 Info sign (3 icon) 424210 Warning sign 424207 Trigger pin 180131 SHSS, M4X 8 424145 Trigger 008478 Reducing bushing 020704 Hansen plug 424216 424141 Valve plug 424206 Compression spacer...
- Page 13 * Install using Loctite #242. ** Install using Teflon pipe tape. VALVE PLUG ADJUSTMENT: Turn plug until flush with cylinder casting. Connect air to tool and check for leaks with trigger in both the On and OFF positions. If leakage should occur, turn valve plug clockwise (in 1/4 turn increments only) until leakage stops.
- Page 14 PARTS LIST, SEALER ASSEMBLY QTY. PART NO. DESCRIPTION 424137 Mounting plate 424136 Piston 276495 Flexloc nut, M8 (w/nylon) 424214 Washer 422858 O-ring #112 Quattro 424129 424126 Side plate (114) 424211 Side plate (34) 424128 Sealer link 424130 Ram pin 424131 Link pin 424134 Jaw (114)
- Page 15 NOTES: Lubricate all O-Rings with White (Lubriplate) grease, GR-132, Part No 422792. Lubricate all moving parts (except O-Rings) with Molith No. 2 or Lubriplate 3000W grease, GR-132, Part No 422793. Torque nut (Key 3) on ram (Key 6) to 140-150 in-lbs. (15.8-16.9Nm).
- Page 16 If there is any question that joint formation is not as shown or is suspect, it is important that you contact your tool representative immediately. TOOL LUBRICATION Signode tools use a variety of greases and oils, all of which can be ordered through Signode. When ordering indicate tool model, part number and name. THREAD SEALANTS Signode tools are assembled using a variety of thread sealants, all of which can be ordered through Signode service using the appropriate description and part number.
- Page 19 It is hereby declared that the undermentioned machinery has been designed and constructed to comply with the health and safety requirements defined in EC Directive 89/392/EEC Machine Supplier: Signode, Division of ITW Ltd. Queensway, Fforestfach Swansea SA5 4ED Machine Description:...
- Page 20 Signode reserves the right to replace any tool which proves not to operate per functional specifications with a new or like-new tool of the same model if in Signode's judgement such replacement is appropriate. Any new replacement tool provided to an owner will carry a full sixty (60) day warranty. Any warranty repaired tool or like-new replacement tool will carry a warranty for the balance of the time remaining on the initial sixty (60) day warranty.
