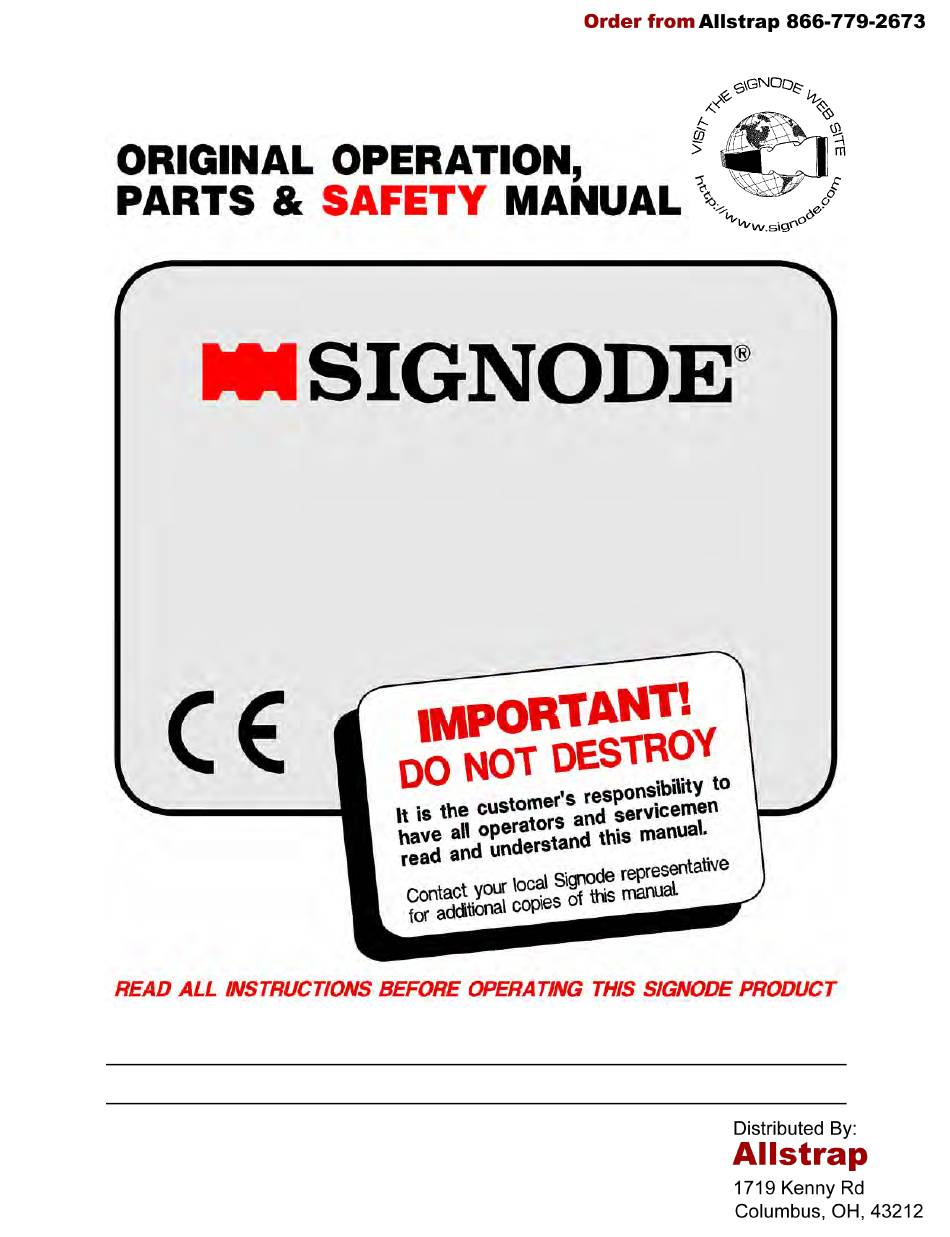

- Page 1 GRIPPACK 114 BATTERY POWERED SEALER NOTE: Fully charge battery before first use of tool. SIGNODE ! ! ! ! 3700 WEST LAKE AVENUE ! ! ! ! GLENVIEW, ILLINOIS 60026...
- Page 2 Do not use the tool when you are in an awkward position. 5. STRAPPING Several types of strap can be used with this tool. Use the correct Signode products for your application. If you need help contact your Signode Representative.
- Page 3 Inspect tool, battery and charger periodically and, if damaged, have repaired by authorized service facility. 12. USE FOR THE INTENDED PURPOSE This tool is designed for bundling round packages with Signode brand steel strapping. POSSIBLE MISUSES The use of any other strapping material may void this tool’s warranty.
- Page 4 Read the operating instructions carefully. This tool must not be used by persons not properly trained in its use. Be certain that you receive proper training from your employer. If you have any questions contact your Signode Representative. EYE INJURY HAZARD Failure to wear safety glasses with side shields can result in severe eye injury or blindness.
-
Page 5: Tool Specifications
Specifications Indicator Lights Major Components Tool Maintenance Battery Charger Maintenance Procedures Battery Installation Declaration of Conformity Operating Instructions Joint Formation & Inspection Replacement Parts Signode GRIPPACK 114 Part No. 800250 STRAP SPECIFICATIONS STRAP RECOMMENDED SEALS MODEL TENSIONER TYPE WIDTH THICKNESS... -
Page 6: Major Components
MAJOR COMPONENTS PRODUCT IDENTIFICATION A two letter date code can be found on every tool. Contact your local Signode representative to assist in identifying the production month and year of the tool. Date codes can also be used to properly identify service parts for... - Page 7 BATTERY INFORMATION & CHARGING Plug charger into your standard power outlet. With no battery pack inserted, the charger's green indicator light will go ON. This indicates the charger is receiving power and the charger is ready for operation. When you insert the battery pack into the charger. The charger's green indicator light will begin to "BLINK".
-
Page 8: Installing A Battery
Failure to follow this procedure could result in serious injury or death. If you have questions regarding proper joint formation, contact your Signode Sales Representative. Before making a double reverse notch seal joint, read the sealing tool’s Operation, Parts and Safety Manual. - Page 9 PLEASE NOTE: Do not operate tool without strap, as damage to the tool may occur. 1. Thread the strap from the dispenser 3. Position the sealer jaws over one end of through a Signode 114P or 114OF seal. the seal. Press the switch located on the handle grip. Once completed, move the sealer jaws to the other end of the seal and notch the seal a second time.
-
Page 10: Replacement Parts
REPLACEMENT PARTS PART NO. DESCRIPTION 800234 GEAR HOUSING 800332 RIGHT HANDLE ASSEMBLY 800333 LEFT HANDLE ASSEMBLY 800238 LEFT SIDE PLATE 800239 RIGHT SIDE PLATE 800266 NOTCHER 800526 WORM GEAR 800241 ECCENTRIC PIN 800240 LINKAGE 800242 LINK PIN 800243 SEALER LINK 800245 800267 LOWER JAW PIN... - Page 11 PART NO. DESCRIPTION 800102 M2 X 10 SHCS 800049 M2 HEX JAM NUT 422835 Ø5 X 12 DOWEL PIN 280809 M5 X 35 SHCS 280819 M5 HEX LOCKNUT 010031 M5 X 25 SHCS 262456 M3 X 6 SHCS 434097 8mm EXT. RET. RING (TA# 5100-31) 293902 M4 X 5 SSS CUP 800325...
- Page 14 ELECTRICAL SERVICE SUB-ASSEMBLIES All of the service assemblies below (Keys 1 through 8) can be order together as Signode Part No. 800532. KEY QTY PART NO. DESCRIPTION 800533 The following service items include wires 800534 Contact Plate and all connectors needed for replacement.
- Page 15 TROUBLESHOOTING GUIDES...
- Page 16 TROUBLESHOOTING GUIDES...
- Page 17 TROUBLESHOOTING GUIDES...
- Page 18 TROUBLESHOOTING GUIDES...
- Page 19 TROUBLESHOOTING - INDICATOR LIGHTS Charger is plugged in and receiving power. Battery is receiving a Quick Charge. Battery is too hot or cold to receive charge. Charging starts when the battery reaches the proper temperature. Battery cannot accept a charge. Replace battery. Battery properly charged.
-
Page 20: Tool Maintenance
If there is any question that joint formation is not as shown or is suspect, it is important that you contact your tool representative immediately. TOOL LUBRICATION Signode tools use a variety of greases and oils, all of which can be ordered through Signode. When ordering indicate tool model, part number and name. THREAD SEALANTS Signode tools are assembled using a variety of thread sealants, all of which can be ordered through Signode service using the appropriate description and part number. - Page 21 MAINTENANCE PROCEDURES - COAST TIME ADJUSTMENT Remove the battery from the tool. Locate the coast-time adjustment screw located in the battery compartment. Turn the adjustment screw clockwise to increase coast time (wider jaws). Turn the adjustment screw counter-clockwise to decrease coast time (narrow jaws). Optimum jaw opening is 1.4"...
- Page 22 MAINTENANCE PROCEDURES - ECCENTRIC PIN SERVICE Remove the tool battery. Remove the 4. Mark the location of the eccentric pin on mounting screws which secure the the face of the gear housing cover. rubber boot to the tool. Remove boot. 5.
- Page 23 MAINTENANCE PROCEDURES - MANUAL INDEXING Use the procedure below to manually index the tool. This is a procedure used for cycling the tool for general maintenance and/or incomplete strapping cycles. For bench maintenance: 1. Remove the battery from the tool. 2.
- Page 25 It is hereby declared that the undermentioned machinery has been designed and constructed to comply with the health and safety requirements defined in EC Directives 2006/42/EC, 2006/95/EC and 2004/108/EC. Machine Supplier: Signode, Division of ITW Ltd. 3700 West Lake Avenue Glenview, IL 60026 U.S.A. Place of Declaration: U.S.A.
- Page 26 SIGNODE WARRANTIES AND LIMITATIONS Signode warrants that for a period of sixty (60) days for Signode tools from date of shipment product sold to Purchaser by Signode will be free from defects in material and workmanship under normal use. During said Warranty period, Signode agrees to replace free of charge any Signode manufactured or purchased part or component which is determined to be defective.
