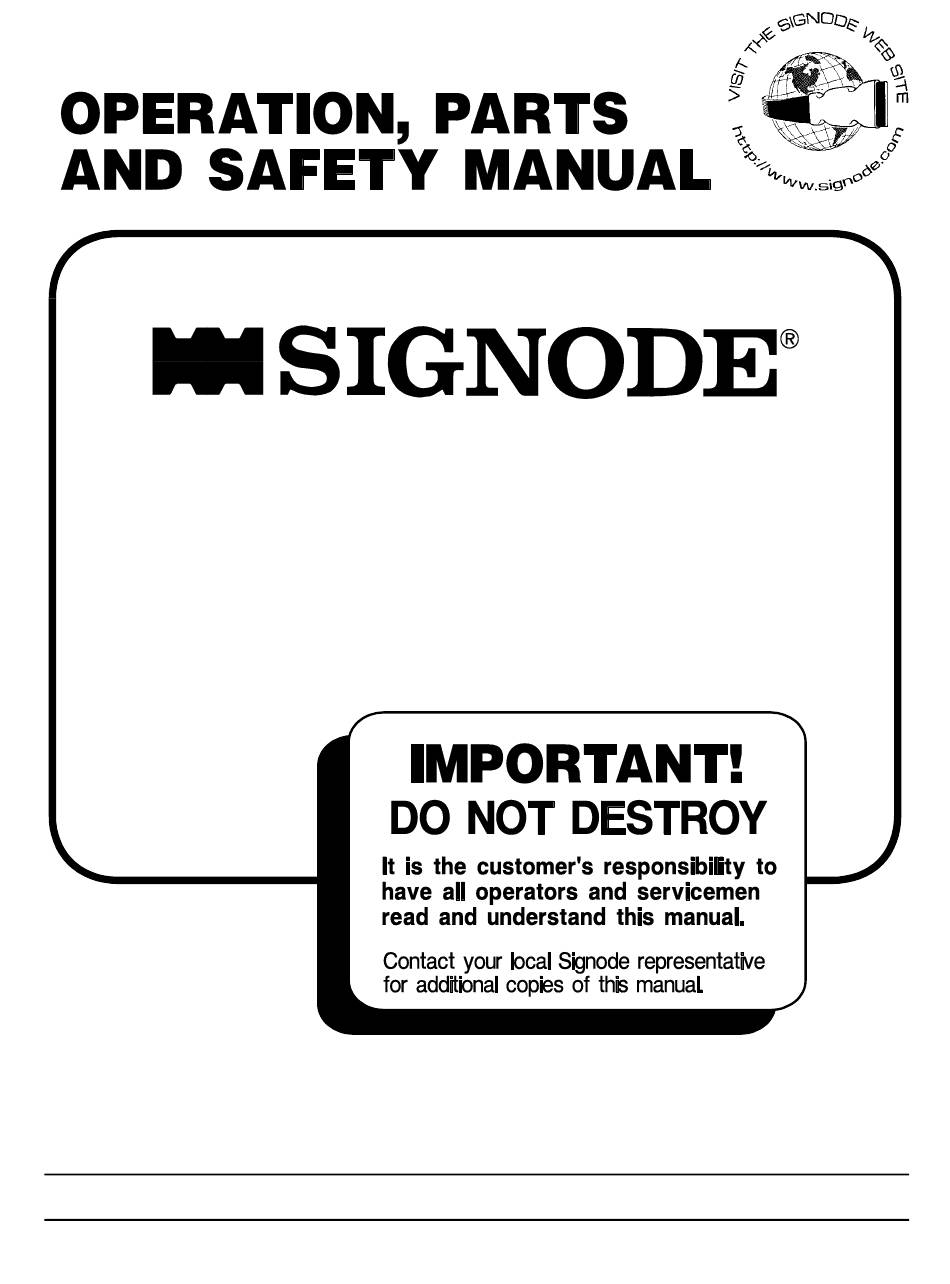

- Page 1 RCN-3435, RCN-1431, N-1435, N-1444-50LSH, N-1457LSH, NS-1457-75L, NS-250-65L AIR POWERED SEALERS READ ALL INSTRUCTIONS BEFORE OPERATING THIS SIGNODE PRODUCT SIGNODE 3620 WEST LAKE AVENUE GLENVIEW, ILLINOIS 60025...
-
Page 2: General Safety Information
2. TRAINING. This tool must not be used by persons not properly trained in its use. Be certain that you receive proper training from your employer. If you have any questions contact your Signode Representative. 3. EYE INJURY HAZARD. - Page 3 Using claw hammers, crowbars, chisels, axes or similar tools will cause tensioned strap to fly apart with hazardous force. Use only cutters designed for cutting strap. Read the instructions in the cutters manual for proper procedure in cutting strap. Before using any Signode product read its Operation and Safety Manual.
-
Page 4: Table Of Contents
Tool Installation Specifications Signode tools and machines are designed Pneumatic Information and warranted to work together with Signode strapping and seals. Use of non- Operating Instructions Signode strap, seals and/or manufactured or specified replacement parts may result Joint Formation in strap breakage or joint separation Parts List &... -
Page 5: Specifications
SEALER SPECIFICATIONS SEALS REQUIRED *MIN. AIR (PER PRESSUR TOOLS STRAP SIZE TYPE JOINT) RCN-3435 34HC Double Reverse 3/4 x .025-.031 Painted & Waxed Magnus 34HOC 55 psig Notch 34HC-OF RCN-1435 1-1/4 x .031 Painted & Waxed Magnus Double Reverse 1-1/4 x .035 Painted & Waxed Heavy duty... -
Page 6: Pneumatic Information
A filter-regulated-lubricator unit (Signode Part No. 008559) must be installed as close to the air tool as possible, preferably within 10 feet. It should be placed in a convenient location where it can easily be drained, adjusted, and filled with oil. - Page 7 The remaining moisture is removed at the water leg in the piping system or in the filter (Part No. 173111). NOTE: Additional information is available in the Signode publication, "Air Supply Manual" (Part No. 186038). If you have any questions, contact your local Signode Representative.
- Page 8 An air line dryer adjacent to the compressor. b. Use lubricant recommended by Signode. Signode has tested the use of anti-freezes, none work well in air tools; the tool will gum up when anti-freezes are introduced and will not function properly.
-
Page 9: Operating Instructions
OPERATING INSTRUCTIONS Wear safety glasses which conform to ANSI Standard Z87.1 or EN 166. Stand to one side of the strap while tensioning. Make sure all bystanders are clear before proceeding. Failure to follow the above could result in severe personal injury. All sealers are compact, well balanced tools which combine the advantages of easy sealing action with high, uniform joint strength. -
Page 10: Joint Formation
JOINT FORMATION The RCN-3435 and the RCN-1435 are double reverse notch sealers. The N-1435, N-1444-50LSH and N-1457LSH are double crimp sealers and the NS-1457-75L and the NS-250-65L are single crimp sealers, although the single crimp sealers are usually required to place two crimps per seal. -
Page 11: Parts List & Exploded Views
PARTS LIST N-1444 N-1457 NS-1457 NS-250 QTY. RCN-3435 RCN-1435 N-1435 50LSH DESCRIPTION 008465 008465 008465 008465 008465 008465 008465 Valve cap 008134 008134 008134 008134 008134 008134 008134 "O" ring 008462 008462 008462 008462 008462 008462 008462 Spring 008468 008468... - Page 12 PARTS LIST, Continued N-1444 N-1457 NS-1457 NS-250 QTY. RCN-3435 RCN-1435 N-1435 50LSH DESCRIPTION 49*** 014371 031296 031296*** Crimper 009032 008503 Notcher 009031 008511 014392 008452 Crimper 017949 017949 Link retainer 030263 030263 Guide spacer 030264 030264 Locking link 030265 030265...
-
Page 19: Declaration Of Conformity
It is hereby declared that the undermentioned machinery has been designed and constructed to comply with the health and safety requirements defined in EC Directive 89/392/EEC Machine Supplier: Signode, Division of ITW Ltd. Queensway, Fforestfach Swansea SA5 4ED Machine Description:... - Page 20 Signode reserves the right to replace any tool which proves not to operate per functional specifications with a new or like-new tool of the same model if in Signode's judgement such replacement is appropriate. Any new replacement tool provided to an owner will carry a full sixty (60) day warranty. Any warranty repaired tool or like-new replacement tool will carry a warranty for the balance of the time remaining on the initial sixty (60) day warranty.
