Signode Little David LD16AE 2.0 Operator's Manual page 87

8 7

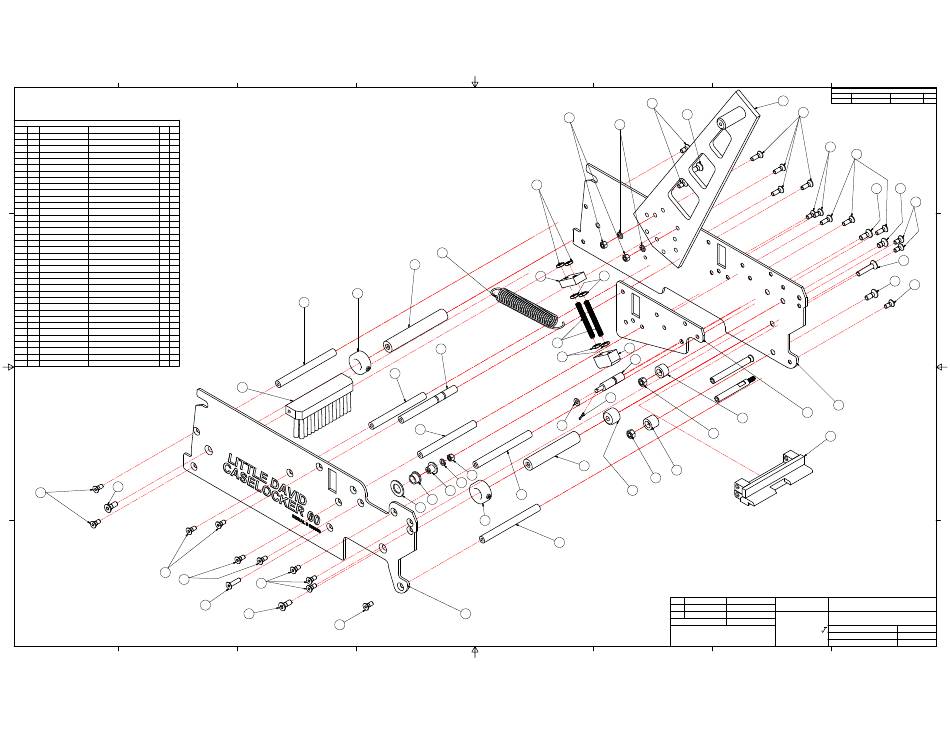

PARTS FOR CAC60NTNC 3" CARTRIDGE
Parts List
ITEM QTY PART NUMBER DESCRIPTION SS MI
1 1 CAC60-0000-6 MAIN FRAME SS MI
D
2 2 CAC60-0040/3-3 TIE SHAFT, 3" SS
3 1 CAC60-0058/3-3 SHAFT MILLSTAND SS
4 1 CAC60-0082-3 STOPPER FRONT ARM
5 1 CAC60-0082A-3 STOPPER FRONT ARM
6 17 FFHMF012P10 FHCS M5 X 0.8 X 12 LG. P-S
7 4 FFHMG016P10 FHCS M6 X 1.0 X 16 LG. P-S
8 7 FFHMF016P10 FHCS M5 X 16 LG. P-S
9 3 FLWMFP LOCK WASHER M5 P-S
10 3 FHFNMFP HEX NUT M5 P-S
11 1 CAC60-0031-4 MILLSTAND SS
12 1 SPH-1502 WASHER SS
13 1 CAC60-0096-3 SHAFT SS
14 2 SC16M 16mm SET COLLAR SS
15 1 BSG-1121-3 FLANGE BUSHING
16 1 SPH-1457 DELRIN WASHER
17 1 CAC60-0133-3 BUSHING STUD SS
18 6 FHJNMGP M6 HEX JAM NUT P-S
19 2 SPH-1495 M6x50 SET SCREW
20 1 CAC60-0107-4 SECONDARY FRAME SS MI
21 1 CAC60-0060/3A-4 SPRING SHAFT 3" SS
22 2 CAC60-0040A/3-3 TIE SHAFT, 3" SS
23 1 SPR-1072 EXTENSION SPRING
24 1 FFHMF020P10 FHCS M5 X 20 P-S
25 2 FHFNMGP HEX NUT M6 P-S
C
26 1 SPH-1497 FHCS M6x12 LG. SS
27 1 SPH-1498 FHCS M6 X 1.0 X 16 LG. SS
28 1 CAC60-0115A-3 CYLINDER MOUNT NOSE SS
29 1 SPH-1501 CLEVIS PIN SS
30 1 CAC60-0152-3 HD BUMPER
31 1
CAC60-0151-3 HD BUMPER BRACKET SS
32 1 CAC60-0154-4 LOAD BRACKET, 3" SS
33 1 CAC60-0157-6 MAIN FRAME, PS SS MI
34 1 BRG-1016 CAM FOLLOWER BEARING SS
35 1 CAC60-0163-4 MAIN PIVOT SHAFT SS
36 1 FFHMG030P10 FHCS M6 X 30 P-S
37 1 CAC60-0123/A-4 CARTRIDGE WIPE BRUSH, 3"
B
7
6
6
6
A
8 7
6
(PNEUMATIC CARTRIDGE ONLY)
14
2
37
6
24
7
6
6
5 4
10
18
23
13
31
19
21
18
3
12
22
10
9
17
22
15
16
14
2
33
5 4
3
6
7
9
18
30
28
29
5
25
35
4
25
34
MAT'L PART # CAD FILE
STD PLOT DATE
ST. ST. DRAWN DATE 1/29/2014
DO NOT SCALE PRINT
STAINLESS : NO FINISH
THIS DRAWING AND SUBJECT MATTER THEREON IS THE EXCLUSIVE PROPERTY OF
LOVESHAW AND IS TO BE TREATED BY YOU AS CONFIDENTIAL PRPRIETARY
INFORMATION. THIS DRAWING OR SUBJECT MATTER THEROF SHALL NOT BE
REPRODUCED OTHER THAN FOR YOUR OWN USE OR TO BE DISCLOSED TO OTHER
WITHOUT THE EXPRESSED WRITTEN CONSENT OF LOVESHAW AND WILL BE
RETURNED TO LOVESHAW UPON REQUEST.
3
2 1
REVISION HISTORY
REV DESCRIPTION DATE BY
11 A RELEASED 1/29/2014 BJF
8
D
6
8
26
7
6
36
27
6
C
1
20
32
B
A
LOVESHAW
TOLERANCES UNLESS
OTHERWISE NOTED:
2206 EASTON TPK., SOUTH CANAAN, PA.
+ -
.X = .050
- TITLE
+ + 
INCH .XX = .015 - - MAIN ASSEMBLY
ANGLES 1/2 -
+
.XXX = .005 -
.X = 1.0mm +
-
MACH.
+ DWG NO SCALE
METRIC .XX = .3mm 125
- FINISH
+
.XXX = .1mm -
MATERIAL CHECKED
+ -
FRACTIONS 1/64
BRYCEF
DRAWN APPROVED
2 1
