Signode Little David LD16AE 2.0 Operator's Manual page 101

4

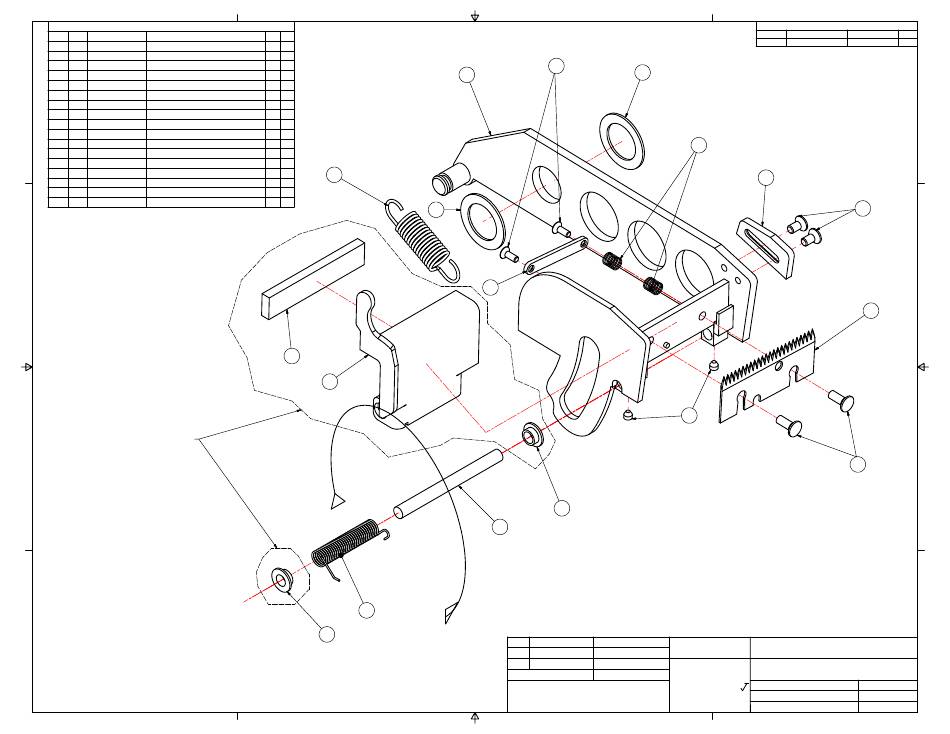

Parts List
ITEM QTY PART NUMBER DESCRIPTION
1 1 CAC60-0066-6 KNIFE ARM
2 1 CAC60-0028-3 KNIFE GUARD PIVOT PIN
3 1 CAC60-0029-5 KNIFE GUARD
4 2 BSG-1091 BUSHING, 6mm
5 2 CAC60-0042-3 PIN
D
6 4 SPR-1045 SPRING
7 1 CAC60-0043-3 PIN PLATE
8 1 PSC11B60-4M2 KNIFE BLADE 2"
8a 1 PSC11A60-4M2 KNIFE BLADE 2", (OPT. COARSE)
9 1 SPR-1042 EXTENSION SPRING
10 1 CAC60-0083-3 TAB ADJUSTER
11 2 FSSME004P10 M4 x 4 CUP POINT SET SCREW
12 2 FFHME008P10 M4 X 8 FHCS
13 1 CAC60-0078-3 KNIFE GUARD CUSHION
14 1 SPR-1063 TORSION SPRING
15 2 FFHMD008P10 M3 X 8 FHCS
16 2 BSG-1135 BRONZE WASHER
*
USE DEVCON 5 MINUTE EPOXY OR EQUIVALENT
TO AFFIX THE FELT PAD TO THE KNIFE GUARD.
C
ASSEMBLIES CAN BE PURCHASED
AS ASSEMBLY #'S
.KGA60/V
.KGA60SS/V
.KGA60MI/V
B
.KGA60SSMI/V
SPECIAL NOTES:
1) ITEM #16, TORSION SPRING, MUST BE PRELOADED
A
ONE FULL TURN TO GET THE APPROPRIATE TENSION.
IT MUST BE WOUND IN THE DIRECTION IT'S
WRAPPED IN TO FUNCTION CORRCTLY.
2) ITEM #10 OPTIONAL SPRING FOR PROCESSING VOID BOXES.
LOVESHAW #SPR-1042LD. LIGHT DUTY SPRING IS RED
IN COLOR FOR EASY VISUAL IDENTIFICATION.
4
3
SS MI
SS MI
SS
SS MI
SS
SS
SS MI
P-S
P-S
*
9
MI
P-S
16
13
3
14
4
3
2
15
16
1
7
4
2
(ONE INCH TAB CARTRIDGE ONLY)
KAACAC60-OIT.idw
PART # CAD FILE
MAT'L
3/14/2012
STD
PLOT DATE
5/20/2009
ST. ST. DRAWN DATE
DO NOT SCALE PRINT
STAINLESS : NO FINISH
THIS DRAWING AND SUBJECT MATTER THEREON IS THE EXCLUSIVE PROPERTY OF
LOVESHAW-ITW AND IS TO BE TREATED BY YOU AS CONFIDENTIAL PRPRIETARY
INFORMATION. THIS DRAWING OR SUBJECT MATTER THEROF SHALL NOT BE
REPRODUCED OTHER THAN FOR YOUR OWN USE OR TO BE DISCLOSED TO OTHER
WITHOUT THE EXPRESSED WRITTEN CONSENT OF LOVESHAW-ITW AND WILL BE
RETURNED TO LOVESHAW-ITW UPON REQUEST.
2
1
REVISION HISTORY
REV DESCRIPTION
A RELEASED
6
10
11
LOVESHAW
TOLERANCES UNLESS
an
OTHERWISE NOTED:
RT. 296, SOUTH CANAAN, PA.
+ -
.X = .050
- TITLE
+ 
+
INCH .XX = .015 - - KNIFE ASSY
ANGLES 1/2
-
+
.XXX = .005
-
+
.X = 1.0mm -
MACH.
KAACAC60-OIT
+ DWG NO
125
METRIC .XX = .3mm -
FINISH
+
.XXX = .1mm
-
MATERIAL
+ -
FRACTIONS 1/64 brycef
DRAWN
1
DATE BY
5/20/2009 BJF
D
12
C
8
B
5
A
ITW Company
SCALE
CHECKED
APPROVED
