Multitest 0.5d, 1d & 2.5d
Service and Repair Manual
20.

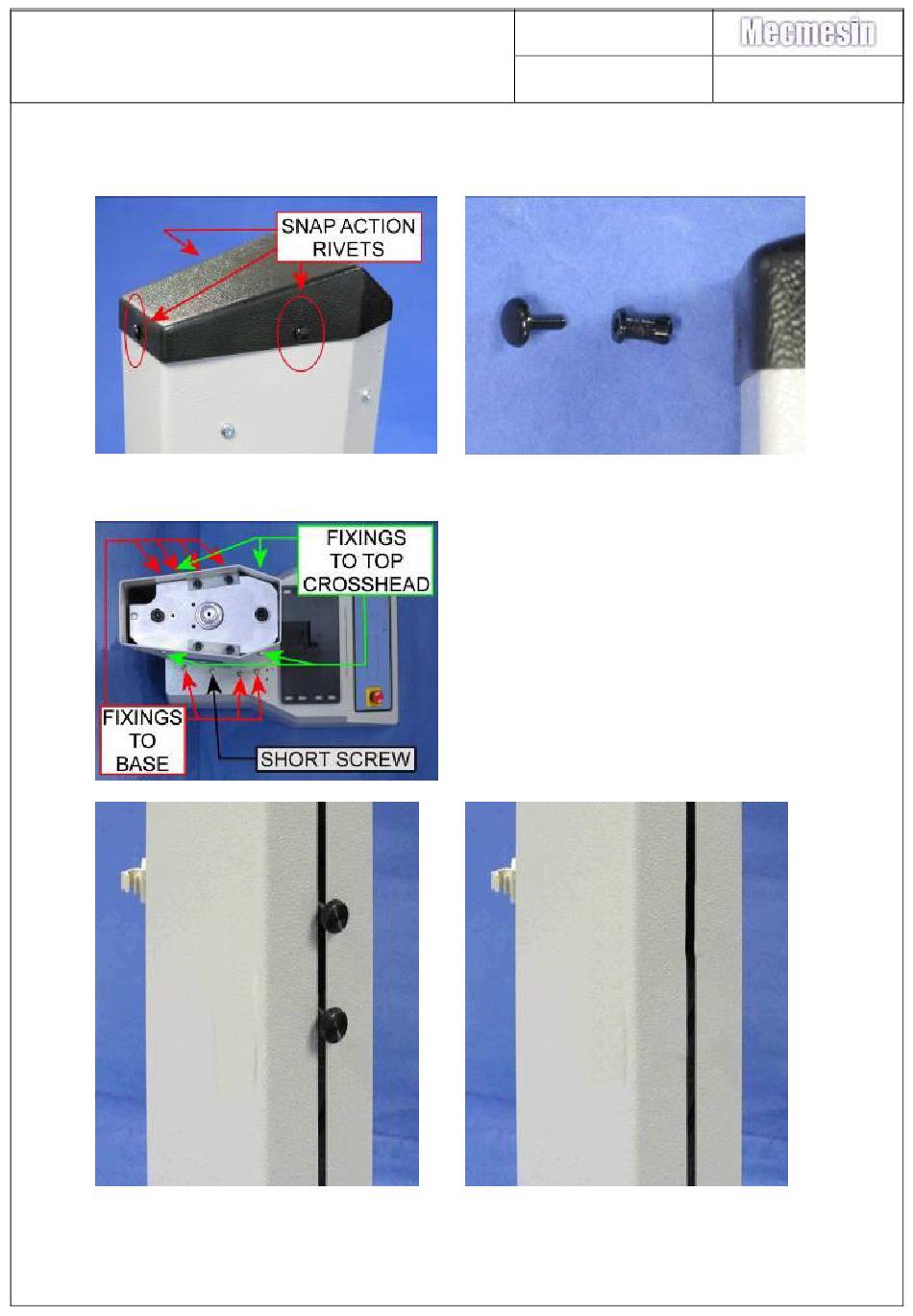

Shroud Removal and Replacement
89. Remove the base plate as per 7, Instructions 2 to 6
90. Remove the 3-off plastic snap action rivets retaining the top cap to the shroud
and lift off the cap.
92. Unscrew and remove the 2-off knoblets from the limit switch collets
Number 022-005
Issue Number: 08
91. Remove all the shroud retaining
screws, as shown in the
photograph.
NOTE: The screw identified by the black
arrow in the photograph is shorter than
the other seven.
Page 27 of 58
