Speed Potentiometer/Encoder Replacement - Mecmesin Multitest 0.5d Service And Repair Manual

Multitest 0.5d, 1d & 2.5d
Service and Repair Manual
19.

Speed Potentiometer/Encoder Replacement.

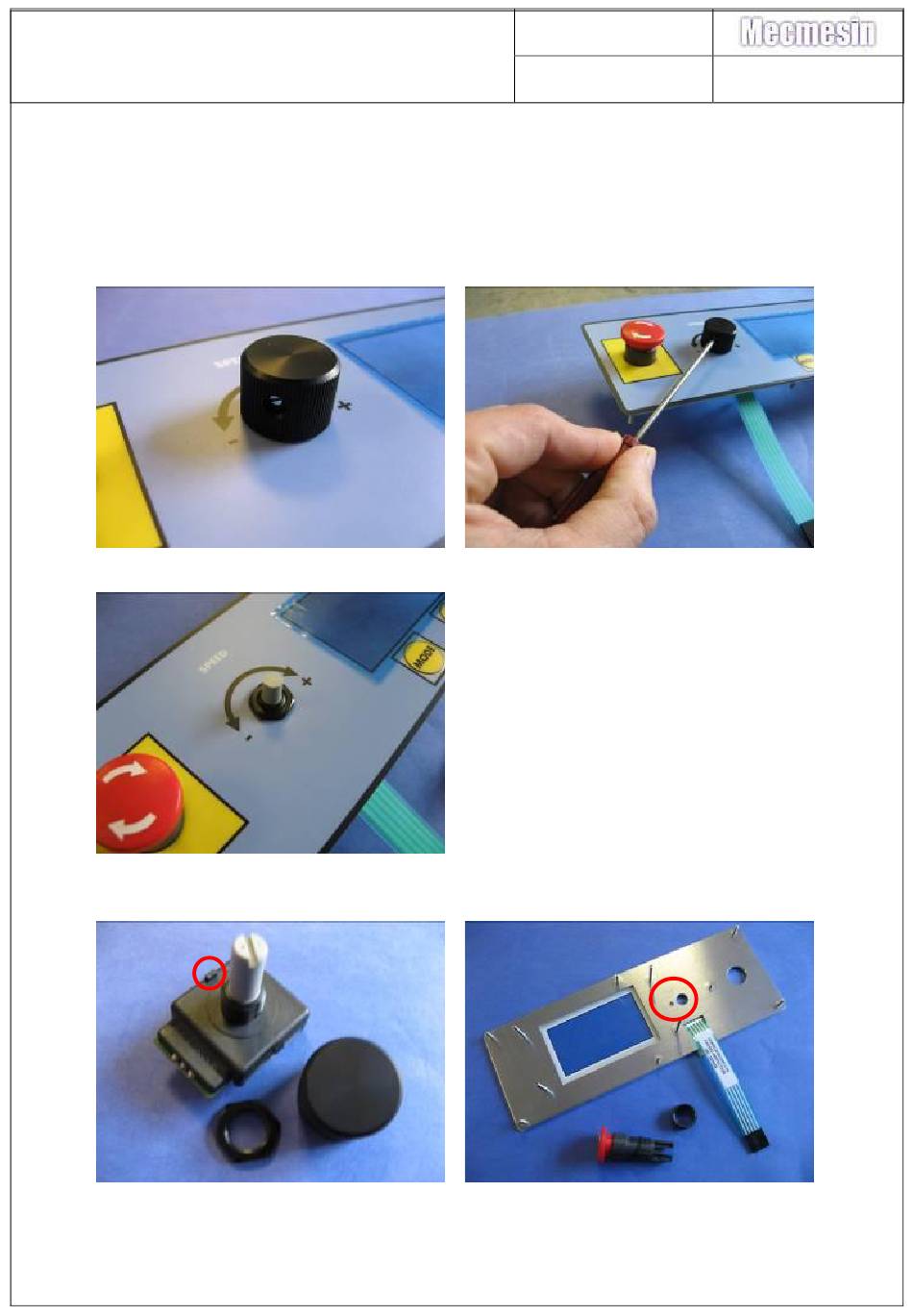

NOTE: The speed pot can also be replaced by removing the base, the front panel
assembly can be left in situ.
83. Remove the front panel PCB as per
84. Loosen the speed control knob securing screw and remove knob
86. Replace the encoder, ensuring that the locating nipple seats correctly – see
photos below. (The spindle is shortened to 7mm).
Number 022-005
Issue Number: 08
Section 18.
85. Remove the encoder retaining nut.
The encoder can now be removed.
Page 25 of 58
