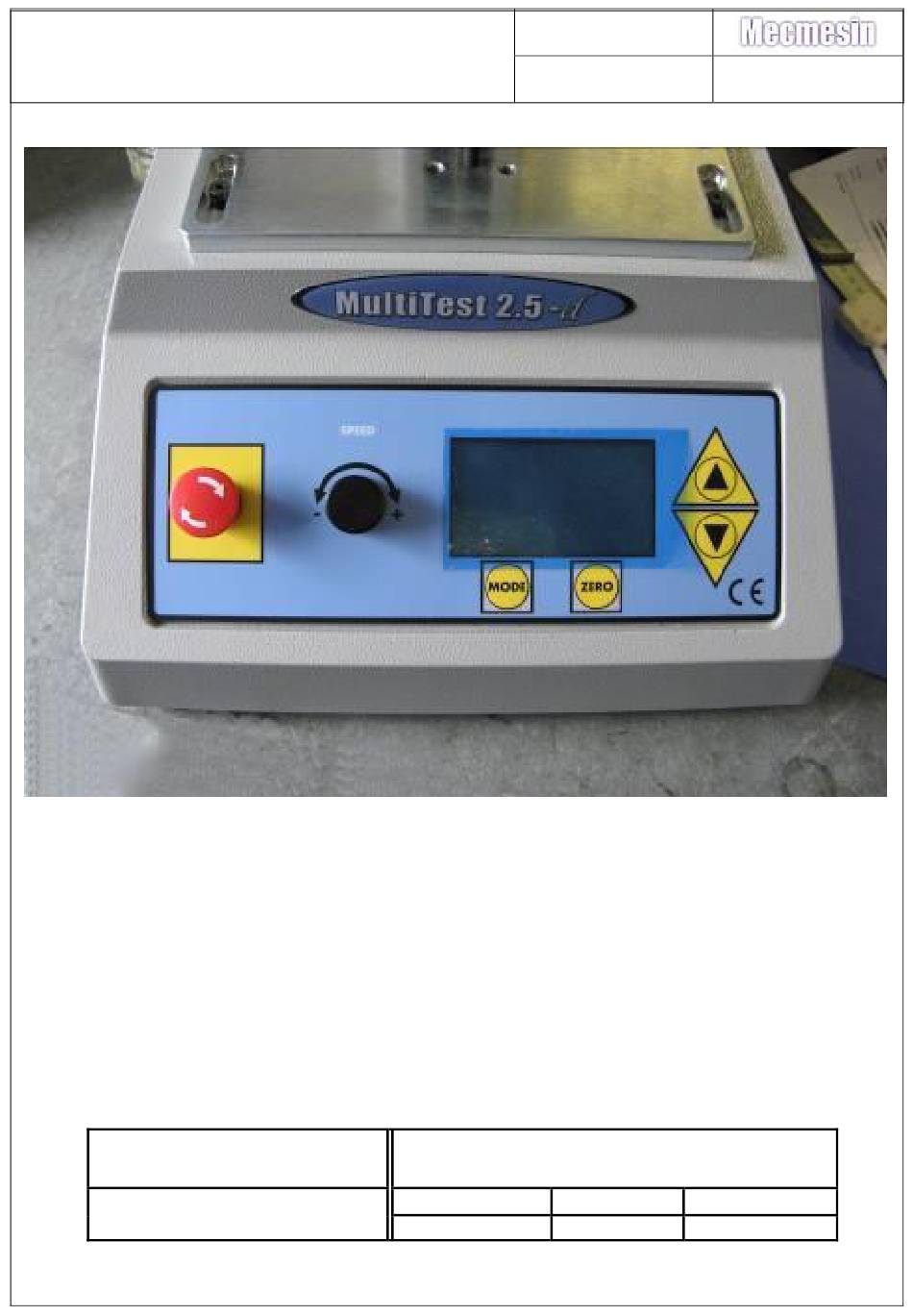

Number 022-005
Multitest 0.5d, 1d & 2.5d
Service and Repair Manual
Issue Number: 08
Page 1 of 58
PDF copy stored in approved
Paper copy printed from approved PDF source by:
location by: (click on signature for
validation)
Name
Signature
Date
