- Page 1 t e s t i n g t o p e r f e c t i o n MultiTest -d Motorised Test Stands Tension and Compression Test solutions Operating Manual...
-
Page 2: Table Of Contents
Contents The MultiTest -d Introduction A Guide to Safe use of Mains Powered Test Frames General Information Using the MultiTest-d Front Panel Control Mechanical Limit Switch Connecting-up and Communication Force Gauges, Loadcells and Fixturing Dimensions MultiTest-d Specifications Appendices page 1... -
Page 3: Introduction
Before Use Unpacking the stand When you first receive the MultiTest-d, please check that there is no obvious damage to the packaging. Appendix 2 lists items which should be included with your test stand. Please contact Mecmesin or your authorised distributor immediately if any items are missing or there are signs that the packaging or the test stand itself has been damaged. -
Page 4: A Guide To Safe Use Of Mains Powered Test Frames
We strongly recommend that you retain the packing for the test frame as this can be re-used when the frame needs to be returned to your authorised Mecmesin distributor for periodic servicing and calibration. Instructions for re-packing the test frame are given in Appendix 3. - Page 5 If the console is to be mounted above this point, please contact your authorised Mecmesin agent to purchase a set of Anchor Brackets. The extended length test stands MultiTest 0.5 and MultiTest 1 are supplied with base anchoring brackets to allow the test stands to be bolted to a bench.
- Page 6 3. Check the setting for the electrical supply Connecting a mains powered test frame to the wrong supply will almost certainly cause extensive damage to the equipment. Mecmesin test frames must only ever be connected to a mains power installation that has a fully installed earthing system.
- Page 7 Each person who is to use the machine should be fully trained in the safe use of motorised testing machines. Training can be arranged by contacting Mecmesin Ltd or an authorised distributor. The machine has the ability to generate forces large enough to cause permanent damage to human limbs, if placed between the crosshead and the base.
- Page 8 Operate the jog buttons to recover a trapped sample. Once the sample has been removed, switch off the test frame and contact your local Mecmesin distributor for advice before using the test frame again. 6.6 In the event of a mains power failure If the mains power should fail, the test frame will stop moving, but the Console can still operate from its internal battery for some time.
- Page 9 1.2.4.4 such as a PLC network, then it is important to note that pressing the emergency stop button on the Mecmesin test frame will not stop any machinery except the Mecmesin test stand, unless the controller is specifically programmed to perform such action in this event.
- Page 10 10.1 Servicing and calibration To ensure optimal safe performance, your test stand must be regularly serviced and the Intelligent Loadcell (ILC) or Intelligent Torque Cell (ITC) calibrated by Mecmesin Ltd or an authorised distributor. If the machine is damaged in use, advise your local supplier and have the machine repaired to a safe working condition.
- Page 11 A Guide to Safe Use of Mains Powered Test Frames Lifting the test stand. The specification gives the weights of the test stands. Use suitable lifting equipment to remove the test stand. The prefered method of lifting MultiTest twin column stands is by use of the supplied lifting eye-bolts fitted to the top of both columns.
-
Page 12: General Information

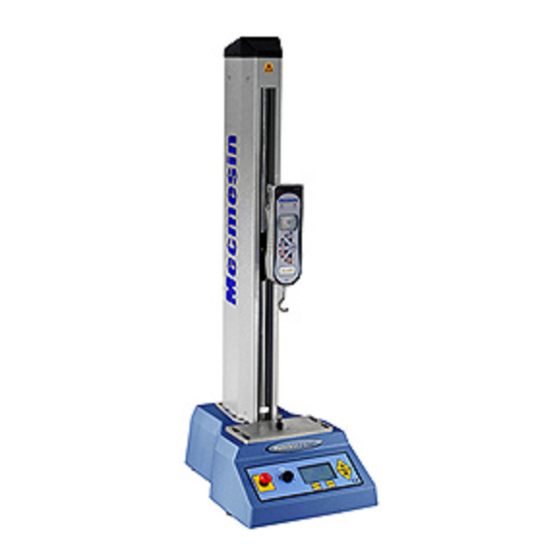

General Information Mecmesin are proud to introduce the MultiTest-d range of motorised test stands. MultiTest-d stands provide a versatile and accurate method of applying tensile and compressive forces at an affordable price. Complemented by a Mecmesin loadcell or force gauge (as illustrated in the photograph on the... -
Page 13: Using The Multitest-D
Connector and the display will illuminate indicating “MultiTest 0.5-d”, “MultiTest 1-d” or “MultiTest 2.5-d.” Front Panel Control The front control panel of the MultiTest-d has been designed with a digital display for ease-of-use. Pressing the red Emergency Stop button will, at any time, stop the crosshead moving. - Page 14 When parameters are set press the Zero key to escape to normal display. The MultiTest-d has variable speed control for both upward and downward directions. Speed is set and controlled by the knob on the front panel and the speed is indicated on the digital display.
- Page 15 After 999 cycles, the counter is reset to zero and the Cycle Mode stand will continue to cycle. In any mode, the current speed the Note: A Mecmesin AFG gauge stand is travelling at may be changed using the dial. This speed and cable is required to cycle will revert to the set speed on next step of cycle or stop.
-
Page 16: Mechanical Limit Switch
It is possible to modify your MultiTest-d for operation in a country with a different supply voltage by: turning off the power, removing... -
Page 17: Force Gauges, Loadcells And Fixturing
RS232 connection straight through to a PC. A Mecmesin gauge (AFG) can be connected to the I/0 Interface of the stand and a computer can be connected to the RS232 of the stand. This will link the RS232 of the stand and gauge to a PC, allowing Emperor™... -
Page 18: Dimensions
If you have purchased a special fixturing, attach this to the gauge/loadcell and/or your MultiTest-d. Loadcells and force gauges One way of causing damage would be to drive the test frame... -
Page 19: Multitest-D Specifications
Specifications MultiTest-d TEST FRAME Rated capacity 1000 2500 Number of ballscrews Speed range mm/min 1 - 1000 1 - 1000 1 - 1000* in/min 0.04 - 40 0.04 - 40 0.04 - 40 Crosshead speed accuracy ±0.1% of indicated speed Throat Depth** 70.5mm (2.8”) - Page 20 Column gaiter Extended throat depth Safety guard Horizontal operation **** at given speed (i.e. not necessarily over whole range) ***** when used with a force gauge Mecmesin reserves the right to alter equipment specifications without prior notice. E&OE page 19...
-
Page 21: Appendices
Appendix 1 Declarations of Conformity page 20... - Page 22 Appendix 2 Your MultiTest -d should be supplied with the following accessories 1. Operating instructions 2. Translation of Appendix 1 (does not apply to English speaking countries, or countries outside European Union (EU) 3. Dovetail bracket (fitted to the crosshead) 4.
- Page 23 10. Close and then seal the outer box with a suitable adhesive tape. 11. Attach despatch wallet with relevant paperwork for end destination. If you have any feedback regarding Mecmesin, its products or services, which you would like to share with us, please contact Mecmesin at: info@mecmesin.com...
- Page 24 Also Available from Mecmesin... Gauges Mecmesin offers a large range of gauges specifically designed to measure force in tension and compression with optimum precision and performance. The Advanced Force Gauge (AFG) including internal loadcell. The AFG is the most versatile and fully-featured of Mecmesin’s instruments.
- Page 25 Accessories Each Mecmesin gauge comes with a set of standard accessories to help perform basic tension or compression tests. This includes a short extension rod, test hook and compression plate. A huge range of accessories exclusive to Mecmesin can be fitted to your gauge.
- Page 26 This page has been left intentionally blank page 25...
- Page 27 This page has been left intentionally blank page 26...
- Page 28 Over 30 years experience in force & torque technology Formed in 1977, Mecmesin Ltd is today widely regarded as a leader in force and torque technology for quality control testing in design and production. The Mecmesin brand stands for excellent levels of performance and reliability, guaranteeing high quality results.
