Multitest 0.5d, 1d & 2.5d
Service and Repair Manual
12.

Rear Panel Replacement Dunker

30. Remove the base plate as per 7, Instructions 2 to 6

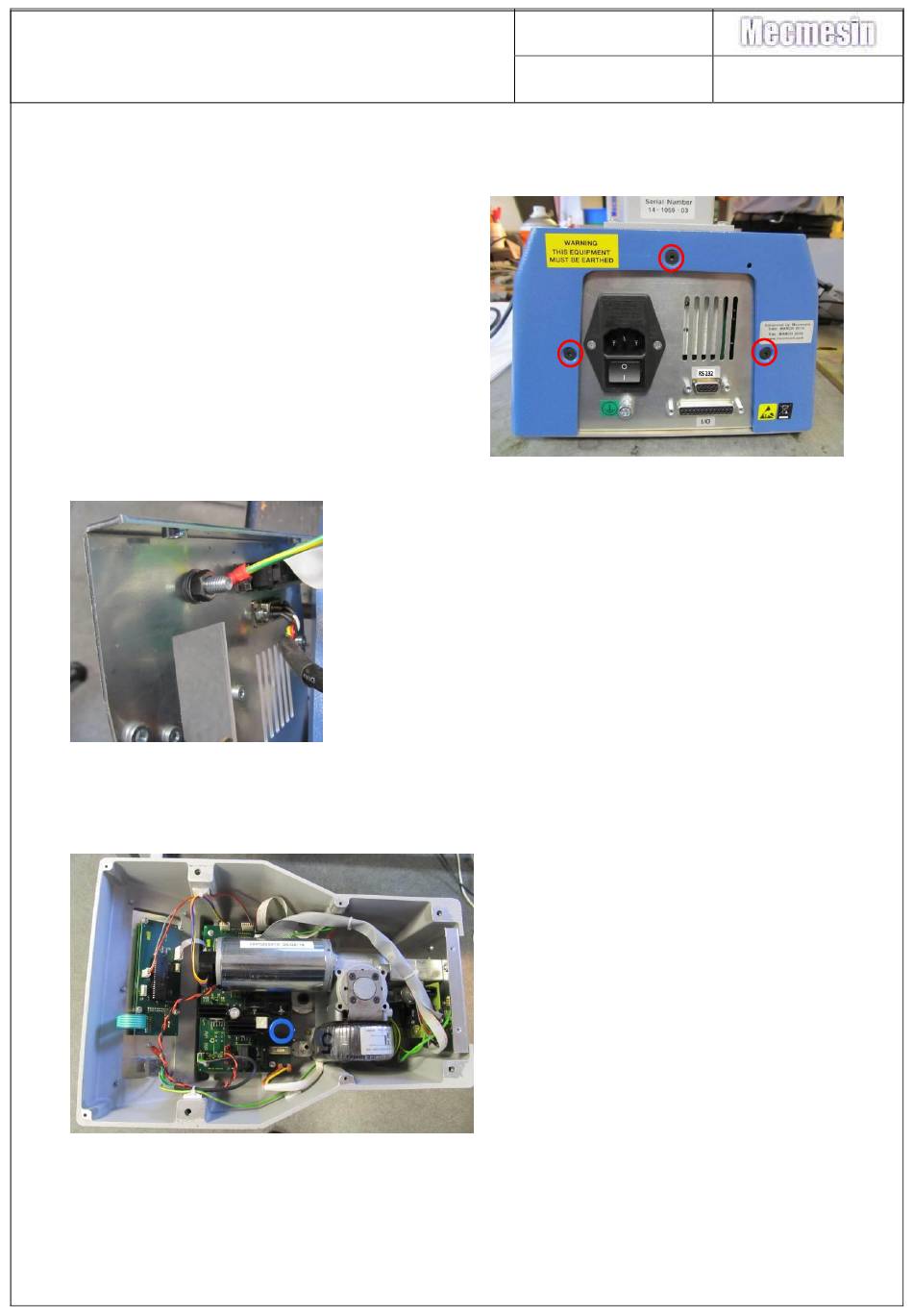

31. Locate the rear panel as identified in the
photograph.
32. Remove the inlet filter as per.
33. Using a 2.5mm allen key remove the 3-
off screws retaining the Rear Panel to
the base casing. Highlighted in red.
34. Remove the rear panel earth connection
Number 022-005
Issue Number: 08
Section 11
35. Cut the cable ties retaining the
connector looms.
Page 14 of 58
